Product Information

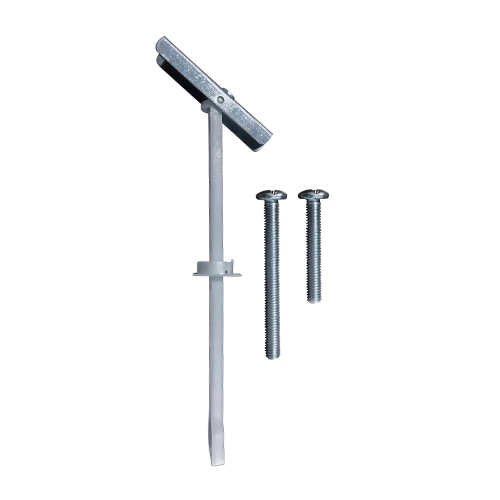

Heavy duty cavity wall anchor for use in plasterboards, most hollow concrete blocks, cavity walls and ceilings. Pack includes both 40mm and 60mm screws for a wider variety of fixture thicknesses.
NOTE: Nylon arms are for installation purposes only and once the fixing is in place, Zip-Fix becomes an all steel, non-flammable fixing.
- Two sizes of zinc pan head machine screws (M6 x 40 and M6 x 60) for varying fixture thicknesses
- Rapid installation, just Zip & Fix
- Please note: The nylon arms are for installation purposes only. Once removed this fixing becomes all-metal and has an improved fire resistance
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Documents
Technical Specifications
Product Specification
| Screw Size mm | M6 x 40 & M6 x 60 |
| Total Length mm | 147 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 7 |
| Max Fixture Thickness mm | 45 |
| Pack Dimensions L x W x H mm | 230 x 136 x 96 |
| Pack Weight kg | 1.82 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 192 |
| Product Code | ZIP650 |
| SKU Barcode | 5055893385005 |
| Thread Dia mm | M6 |
| Drill Hole Dia mm | 13 |
Product Specifications
| Finish | Zinc |
| Head Type | Pan |
| Material | Carbon Steel |
| Recess Type | Pozi |
| Thread Type | Metric |
| Driver Bit Size | PZ3 |
| Included Items | M6 x 40 Screws (Qty 50), M6 x 60 Screws (Qty 50) |
| Substrates | Plasterboard, Block |
| Approval | BS 7671:2018 |
Attribute Group 1
| Brand | TIMCO |
Zip-Fix Cavity Wall Fixings - Zinc
M6
- Product Code: ZIP650
- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5055893385005
