Product Information
Hammer-in insulation fixing with a polyamide pin for fixing external thermal insulation (ETICS) into concrete or masonry.
- All Nylon Construction - prevents the formation of a thermal bridge.
- Versatile Insulation Fixing - suitable for attaching PIR, Mineral Fibre Wool, Styrofoam and more to any category of substrate.
- 10.0mm Diameter Heavy Duty Nylon Fixing - increased strength parameters to traditional fixing methods.
- Shorter Embedment Depth - for quicker installation.
- Compatible with TDW110 Insulation Fixing Washer - for easier installation of softer materials such as mineral fibre wool.
Technical Specifications
Product Specification
| Diameter mm | 10 |
| Type | Plastic Pin |
| Max Embedment Depth mm | 70 |
| Max Fixture Thickness mm | 265 |
| Min Drill Hole Depth mm | 45 or 80 |
| Min Embedment Depth mm | 35 |
| Min Fixture Thickness mm | 230 |
| Pack Dimensions L x W x H mm | 402 x 302 x 238 |
| Pack Weight kg | 2.84 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 56 |
| CE Standard Web | CE Marked |
| Product Code | PA300 |
| SKU Barcode | 5908275918387 |
| Size Dia x L mm | 10.0 x 300 |
| Head Dia mm | 60 |
| Drill Hole Dia mm | 10 |
Product Specifications
| Colour | White |

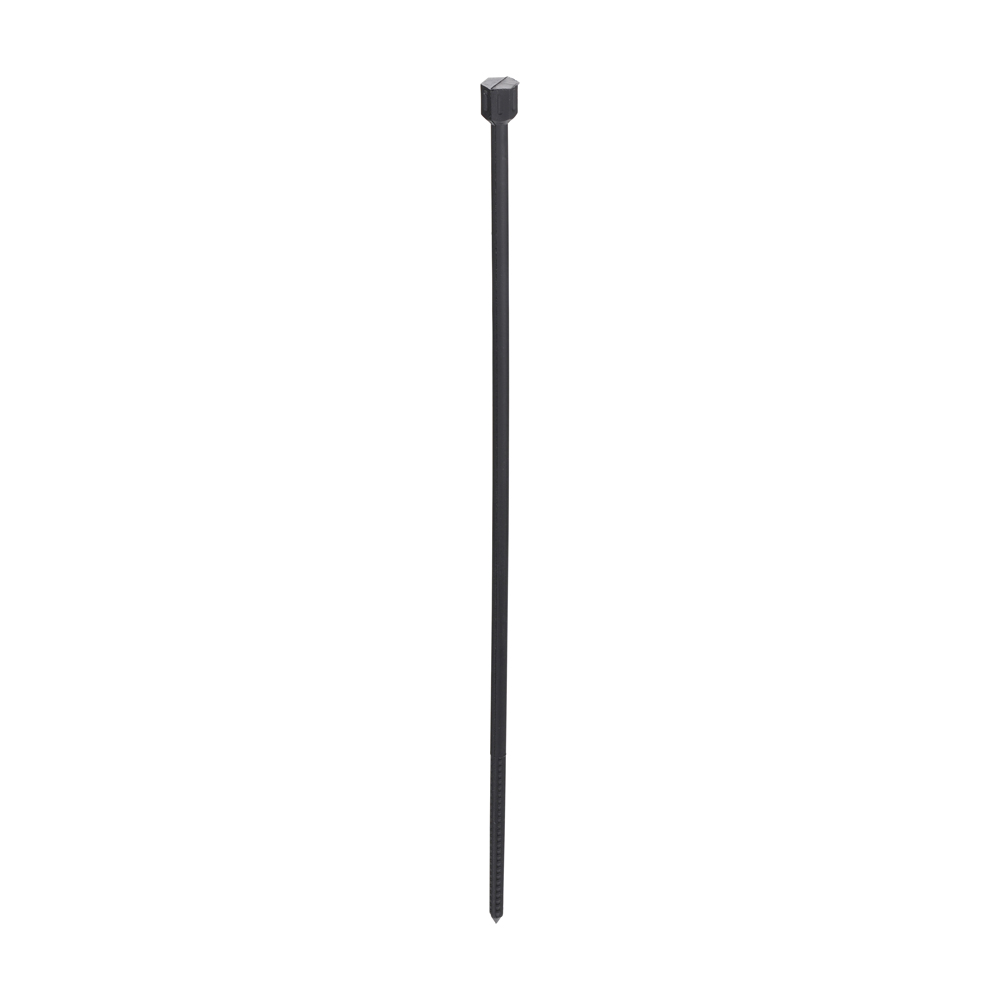

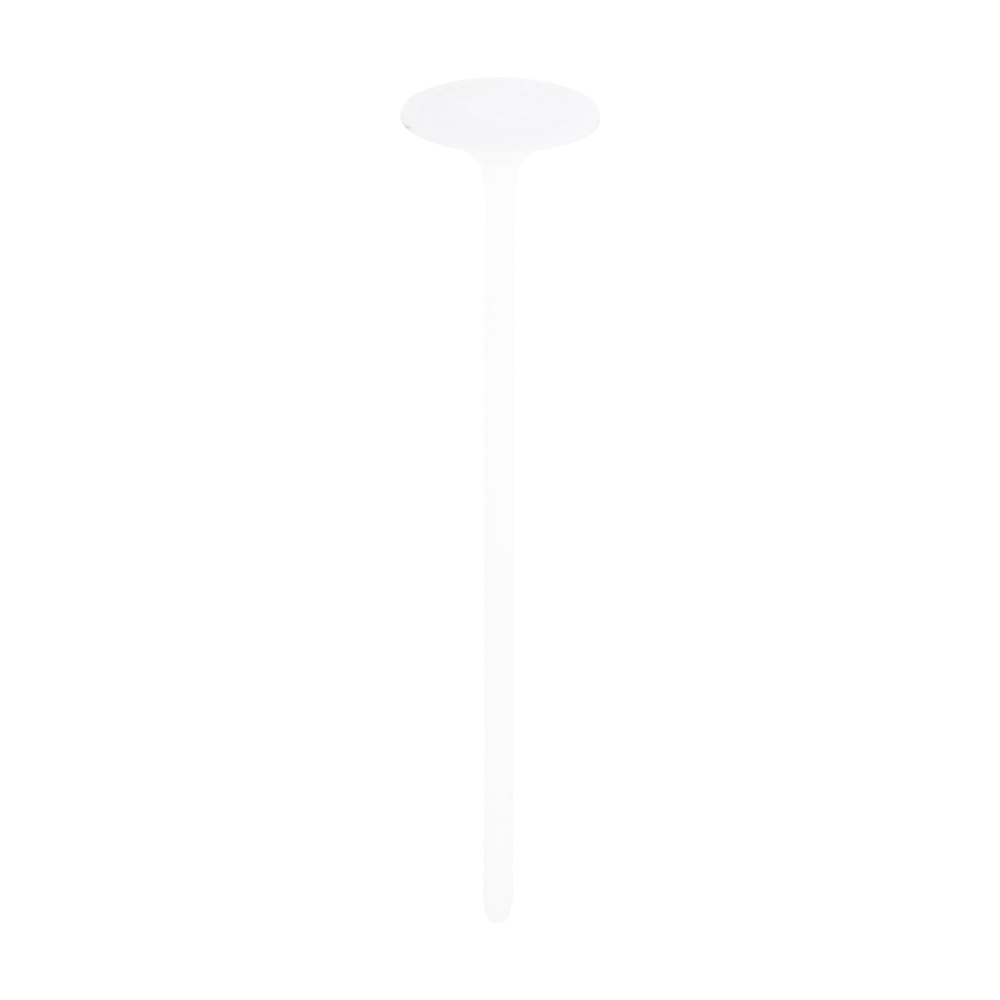

| Material | Polypropylene (PP) Sleeve, Galvanised Steel Pin |
| Application | Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS) |
| Substrates | Concrete, Brick, Block |
| Approval | Regulation (EU) 305/2011 |
Attribute Group 1
| Brand | Ziel-Plast |

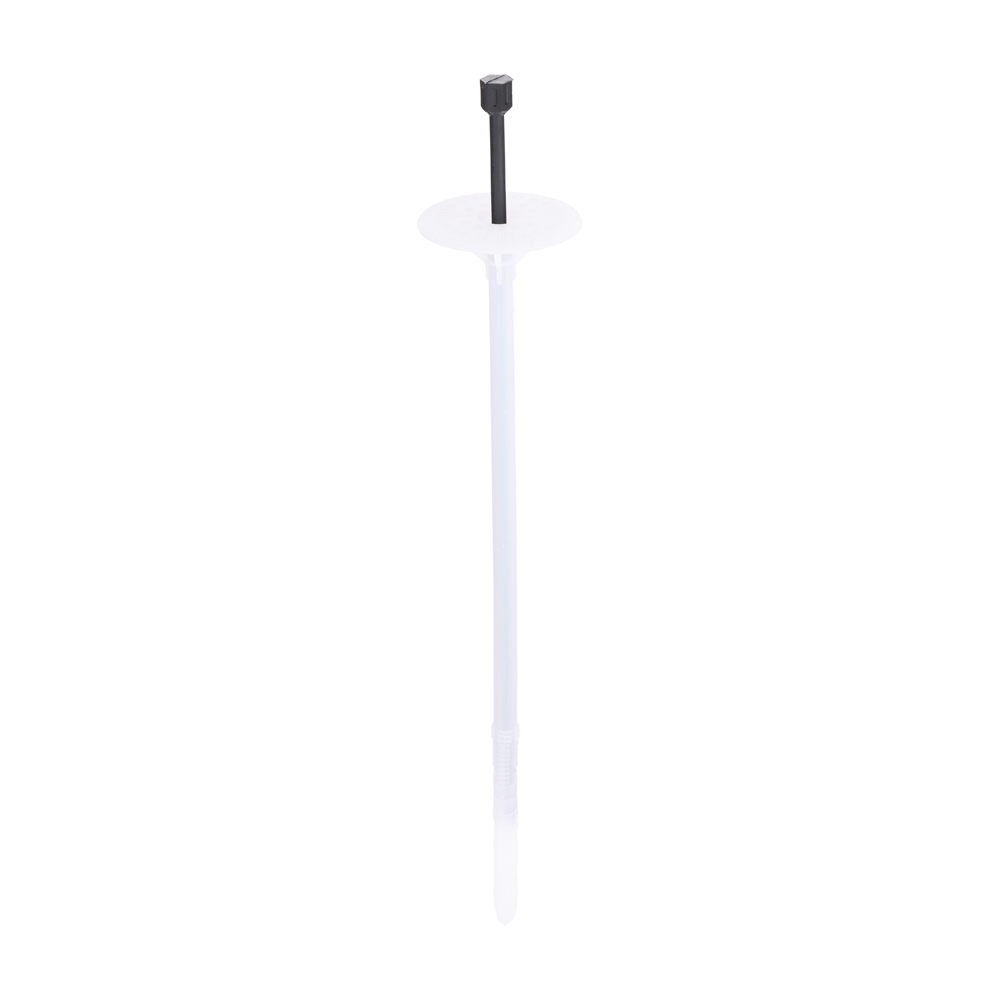

Ziel- Plast FIX-PA Insulation Fixings
10.0 x 300mm
- Product Code: PA300
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5908275918387
