Product Information

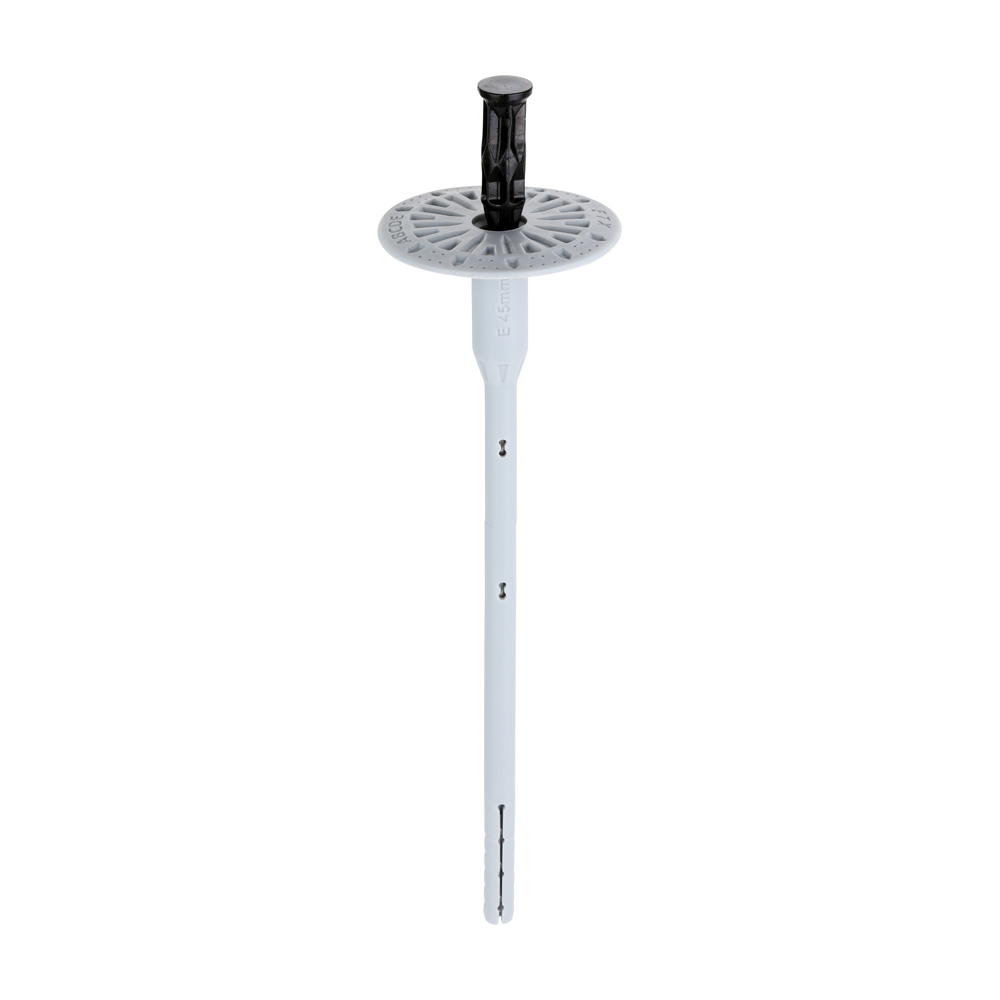

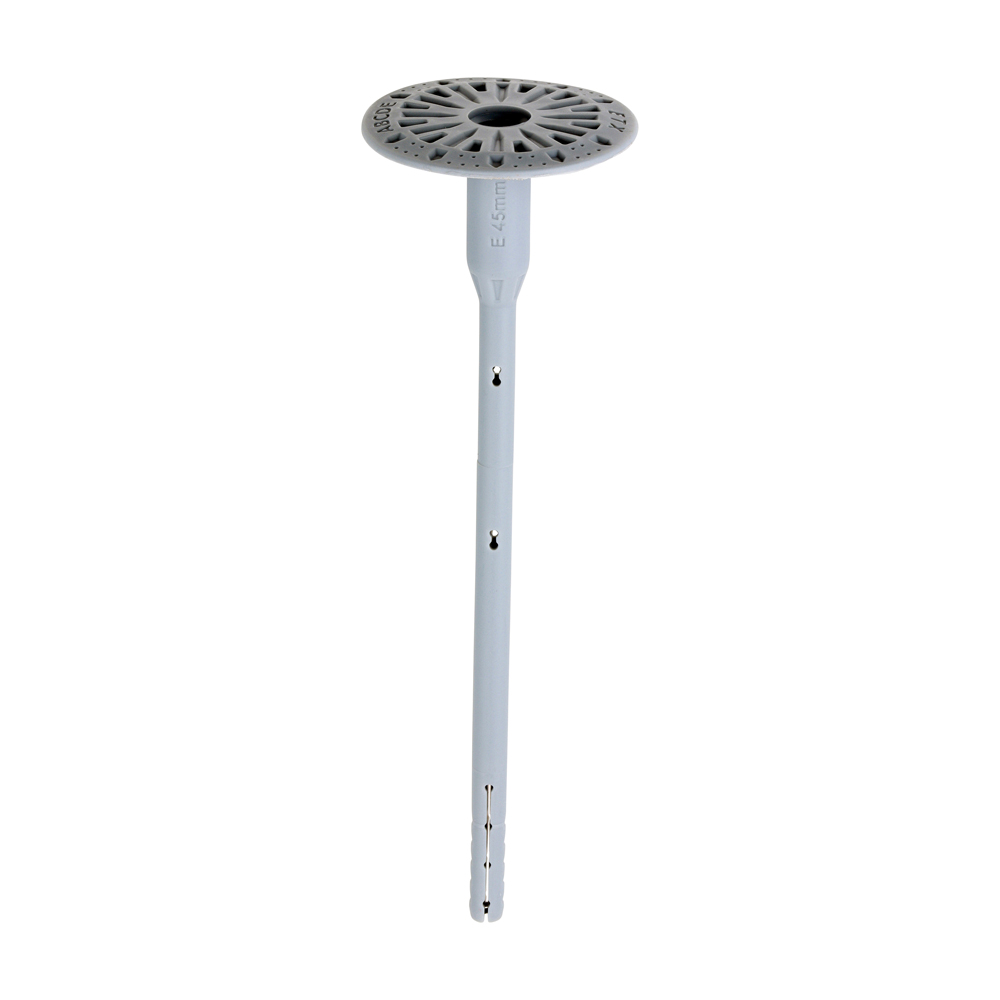

Advanced hammer-in insulation fixing with a steel pin and an impact resistant head for fixing external thermal insulation (ETICS) into concrete and masonry.

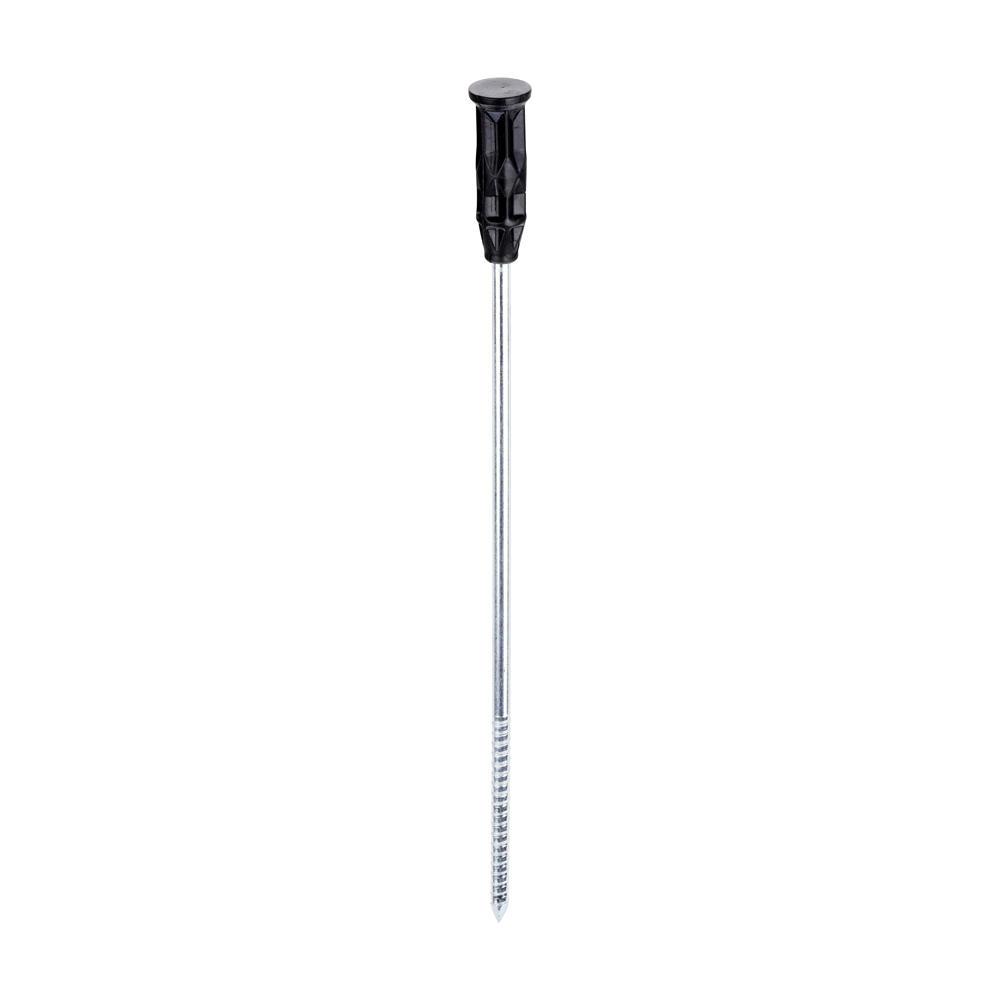

- Stainless Steel Pin with Nylon Insulator - prevents the formation of a thermal bridge.
- Versatile Insulation Fixing - suitable for attaching PIR, Mineral Fibre Wool, Styrofoam and more to any category of substrate.
- 8.0mm Diameter Heavy Duty Nylon Fixing - increased strength parameters to traditional fixing methods.
- Shorter Embedment Depth - for quicker installation.
- Compatible with TDW110 Insulation Fixing Washer - for easier installation of softer materials such as mineral fibre wool.
Technical Specifications
Product Specification
| Diameter mm | 8 |
| Type | Steel Pin |
| Max Embedment Depth mm | 45 |
| Max Fixture Thickness mm | 170 |
| Min Drill Hole Depth mm | 35 or 55 |
| Min Embedment Depth mm | 25 |
| Pack Dimensions L x W x H mm | 300 x 268 x 240 |
| Pack Weight kg | 3.66 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 84 |
| CE Standard Web | CE Marked |
| Product Code | EM195 |
| SKU Barcode | 5907812671204 |
| Size Dia x L mm | 8.0 x 195 |
| Head Dia mm | 60 |
| Drill Hole Dia mm | 8 |
Product Specifications
| Colour | White |
| Material | Polypropylene (PP) Sleeve, Galvanised Steel Pin |
| Application | Facade Insulation Systems, External Thermal Insulation Composite Systems (ETICS) |
| Substrates | Concrete, Brick, Block |
| Approval | Regulation (EU) 305/2011 |
Attribute Group 1
| Brand | Ziel-Plast |
Ziel-Plast ETX-M Insulation Fixings
8.0 x 195mm
- Product Code: EM195
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5907812671204
