Product Information
A rapid light duty hammer-set anchor for attaching sheet metal, plastic or wood to concrete or masonry. NOTE: Not recommended for overhead applications such as suspended ceilings.
Documents
Technical Specifications
Product Specification
| Length mm | 30 |
| Diameter mm | 6 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 6.5 |
| Max Fixture Thickness mm | 5 |
| Min Drill Hole Depth mm | 35 |
| Pack Dimensions L x W x H mm | 138 x 94 x 64 |
| Pack Weight kg | 0.84 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| Product Code | 0630ZNA |
| SKU Barcode | 5055331820372 |
| Size Dia x L mm | 6.0 x 30 |
| Drill Hole Dia mm | 6 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Substrates | Concrete |
Attribute Group 1
| Brand | TIMCO |

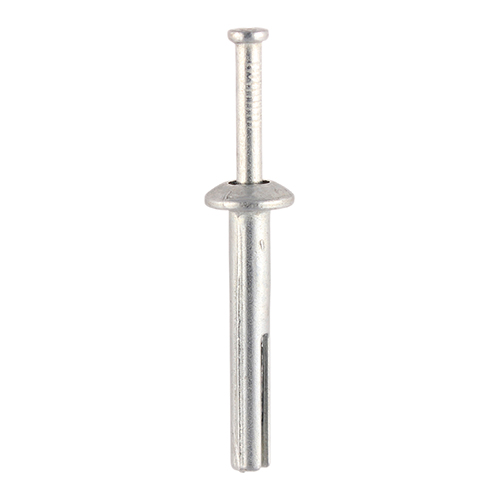

Zamac Nail In Anchors - Zinc
6.0 x 30
- Product Code: 0630ZNA
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055331820372
