Product Information

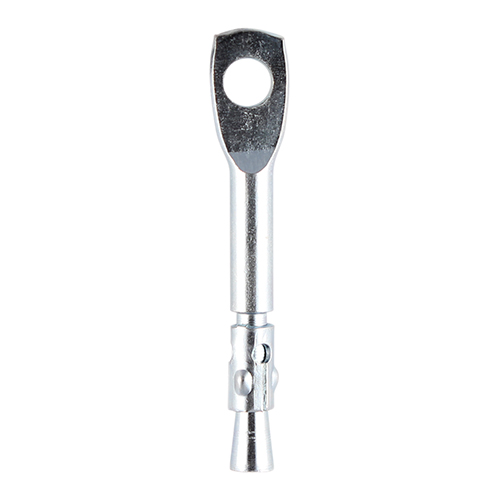

Specifically designed for use in the suspended ceiling industry when securing suspension wires to concrete beams.
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Documents
Technical Specifications
Product Specification
| Length mm | 60 |
| Diameter mm | 6 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Min Drill Hole Depth mm | 50 |
| Pack Dimensions L x W x H mm | 102 x 90 x 60 |
| Pack Weight kg | 1.113 |
| Carton Qty Packs | 16 |
| Pallet Qty Packs | 640 |
| Product Code | 0660WH |
| SKU Barcode | 5055017521593 |
| Size Dia x L mm | 6.0 x 60 |
| Eye Dia mm | 6.3 |
| Drill Hole Dia mm | 6 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Substrates | Concrete |
| Approval | BS 7671:2018 |
Attribute Group 1
| Brand | TIMCO |

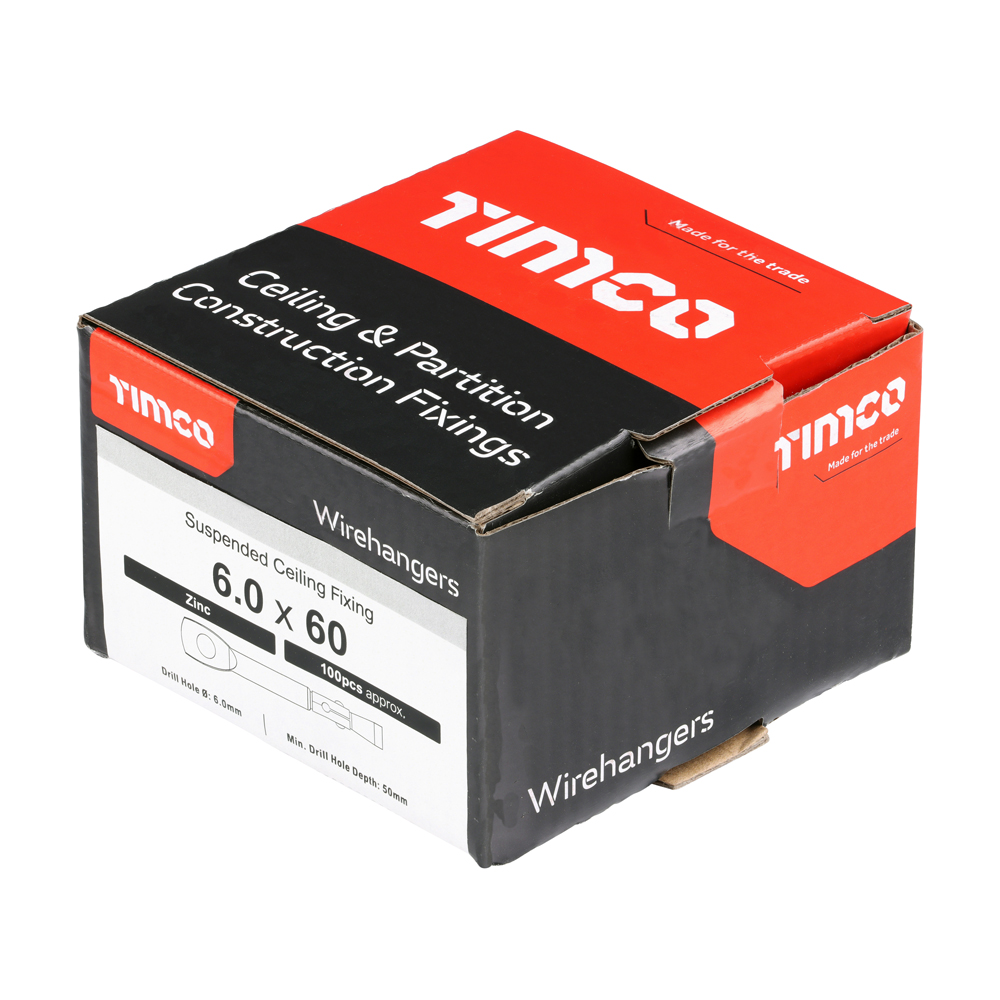

Wirehangers - Zinc
6.0 x 60
- Product Code: 0660WH
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055017521593
