Product Information
Generally used for attaching steel hardware to steel reinforced PVCu sections. The flat underside of the screws head allows it to clamp the materials together firmly. Stainless steel should be used where there is a corrosive environment.
Documents
Technical Specifications
Product Specification
| Length mm | 19 |
| Diameter mm | 4.2 |
| Size mm | 4.2 x 19 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Max Drilling Thickness mm | 3 |
| Pack Dimensions L x W x H mm | 135 x 90 x 90 |
| Pack Weight kg | 1.836 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 384 |
| Product Code | 132SS |
| SKU Barcode | 5055331849076 |
| Thread Dia mm | 4.2 |
Product Specifications
| Colour | Silver |
| Finish | Silver Organic |
| Head Type | Pan |
| Material | Martensitic Stainless Steel (410) |
| Point Type | Self-Drilling |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Self-Tapping |
| Driver Bit Size | PH2 |
| Substrates | Steel |
| Approval | All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines. |
Attribute Group 1
| Brand | TIMCO |

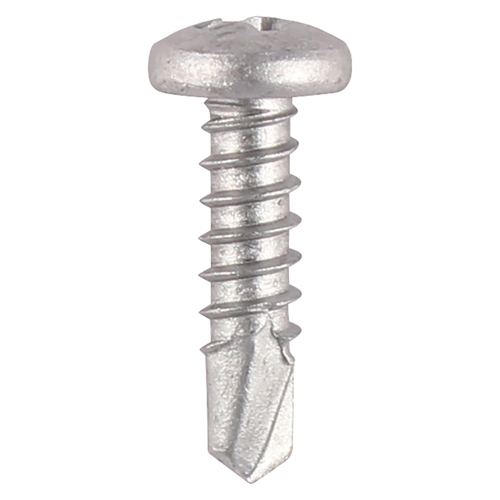

Window Fabrication Screws - Pan - PH - Self-Tapping - Self-Drilling Point - Martensitic Stainless Steel & Silver Organic
4.2 x 19
- Product Code: 132SS
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055331849076
