Product Information
For attaching friction stays to PVCu frames. Stainless steel should be used where there is a corrosive environment.
Documents
Technical Specifications
Product Specification
| Length mm | 16 |
| Diameter mm | 4.8 |
| Size mm | 4.8 x 16 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 135 x 90 x 60 |
| Pack Weight kg | 1.38 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 384 |
| Product Code | 215SS |
| SKU Barcode | 5055017529889 |
| Thread Dia mm | 4.8 |
Product Specifications
| Colour | Silver |
| Head Type | Shallow Pan with Serrations |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | Gimlet |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Single |
| Driver Bit Size | PH2 |
| Substrates | PVCu |
| Approval | All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines. |
Attribute Group 1
| Brand | TIMCO |

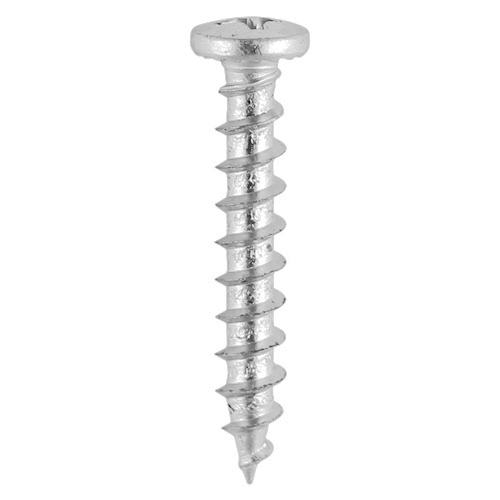

Window Fabrication Screws - Friction Stay - Shallow Pan with Serrations - PH - Single Thread - Gimlet Tip - Stainless Steel
4.8 x 16
- Product Code: 215SS
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017529889
