Product Information
For attaching friction stays with countersunk holes to PVCu frames.
Documents
Technical Specifications
Product Specification
| Length mm | 16 |
| Diameter mm | 4.3 |
| Size mm | 4.3 x 16 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 135 x 90 x 60 |
| Pack Weight kg | 1.26 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| Product Code | 213Z |
| SKU Barcode | 5055017528998 |
| Thread Dia mm | 4.3 |
Product Specifications
| Finish | Zinc |
| Head Type | Shallow Pan Countersunk |
| Material | Carbon Steel |
| Point Type | Gimlet |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Single |
| Driver Bit Size | PH2 |
| Substrates | PVCu |
| Approval | All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines. |
Attribute Group 1
| Brand | TIMCO |

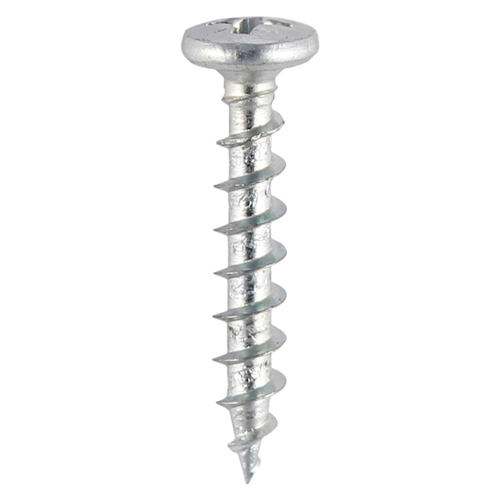

Window Fabrication Screws - Friction Stay - Shallow Pan Countersunk - PH - Single Thread - Gimlet Point - Zinc
4.3 x 16
- Product Code: 213Z
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017528998
