Product Information

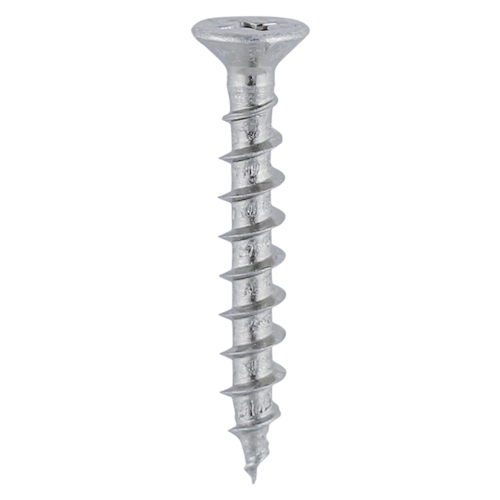

Multiple uses for fitting a variety of hardware to frames where there is no steel or aluminium reinforcement present. Countersunk head with ribs under head for improved countersinking. The larger 4.8mm diameter screws known as repair screws are frequently used in stripped holes. Stainless steel should be used where there is a corrosive environment.
Documents
Technical Specifications
Product Specification
| Length mm | 25 |
| Diameter mm | 4.8 |
| Size mm | 4.8 x 25 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 135 x 90 x 90 |
| Pack Weight kg | 1.786 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 384 |
| Product Code | 209SS |
| SKU Barcode | 5055017529803 |
| Thread Dia mm | 4.8 |
Product Specifications
| Colour | Silver |
| Head Type | Countersunk with Ribs |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | Gimlet |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Single |
| Driver Bit Size | PH2 |
| Substrates | PVCu |
| Approval | All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines. |
Attribute Group 1
| Brand | TIMCO |
Window Fabrication Screws - Countersunk with Ribs - PH - Single Thread - Gimlet Tip - Stainless Steel
4.8 x 25
- Product Code: 209SS
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017529803
