Product Information
Multiple uses for fitting a variety of hardware to frames where there is no steel or aluminium reinforcement present. Also known as a repair screw, frequently used in stripped holes. Countersunk head with ribs under head for improved countersinking.
Documents
Technical Specifications
Product Specification
| Length mm | 38 |
| Diameter mm | 4.8 |
| Size mm | 4.8 x 38 |
| Finish | Zinc |
| Head Type | Countersunk with Ribs |
| Material | Carbon Steel |
| Point Type | Gimlet |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Single |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Driver Bit Size | PH2 |
| Substrates | PVCu |
| Pack Dimensions L x W x H mm | 234 x 94 x 92 |
| Pack Weight kg | 2.58 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 216 |
| Approval | All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines. |
| Product Code | 210Z |
| SKU Barcode | 5055017528943 |
| Thread Dia mm | 4.8 |
Attribute Group 1
| Brand | TIMCO |

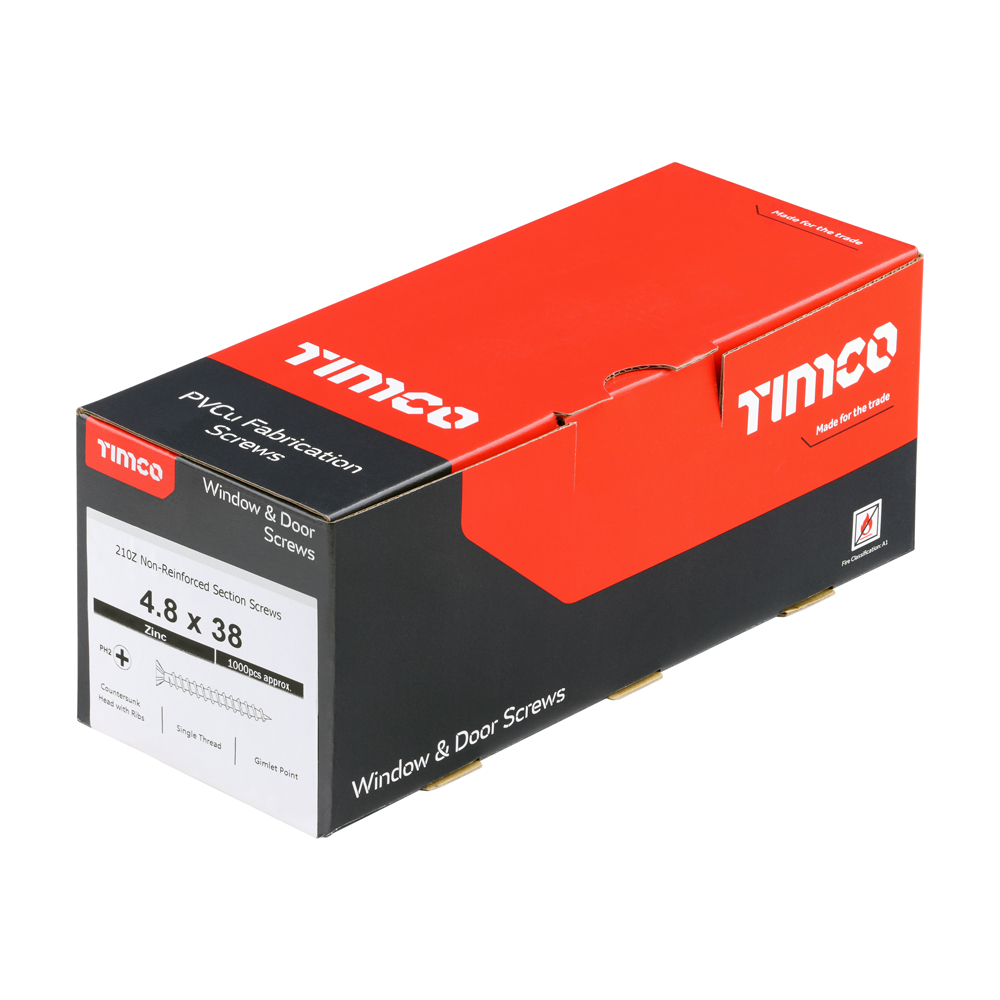

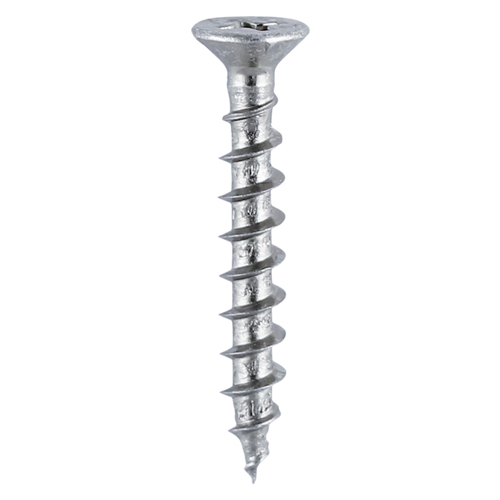

Window Fabrication Screws - Countersunk with Ribs - PH - Single Thread - Gimlet Point - Zinc
4.8 x 38
- Product Code: 210Z
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017528943
