Product Information
Multiple uses for fitting a variety of hardware to frames where there is a steel or aluminium reinforcement present. Countersunk head with ribs under head for improved countersinking.
Documents
Technical Specifications
Product Specification
| Length mm | 19 |
| Diameter mm | 3.9 |
| Size mm | 3.9 x 19 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Max Drilling Thickness mm | 2.5 |
| Pack Dimensions L x W x H mm | 135 x 90 x 60 |
| Pack Weight kg | 1.299 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| Product Code | 122Y |
| SKU Barcode | 5055017528233 |
| Thread Dia mm | 3.9 |
Product Specifications
| Finish | Zinc & Yellow |
| Head Type | Countersunk with Ribs |
| Material | Carbon Steel |
| Point Type | Self-Drilling |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Self-Tapping |
| Driver Bit Size | PH2 |
| Substrates | Steel |
| Approval | All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines. |
Attribute Group 1
| Brand | TIMCO |

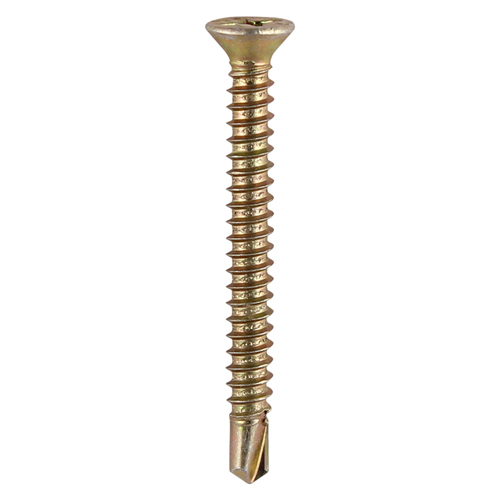

Window Fabrication Screws - Countersunk with Ribs - PH - Self-Tapping - Self-Drilling Point - Yellow
3.9 x 19
- Product Code: 122Y
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017528233
