Product Information
Multiple uses for fitting a variety of hardware to frames where there is a steel or aluminium reinforcement present.
Documents
Brochure Page
Technical Specifications
Product Specification
Length mm 45
Diameter mm 3.9
Size mm 3.9 x 45
Finish Zinc
Head Type Countersunk
Material Carbon Steel
Point Type Self-Drilling
Recess Type Phillips
Thread Coverage Fully Threaded
Thread Type Self-Tapping
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Driver Bit Size PH2
Max Drilling Thickness mm 2.5
Substrates Steel
Pack Dimensions L x W x H mm 135 x 90 x 90
Pack Weight kg 1.46
Carton Qty Packs 16
Pallet Qty Packs 384
Approval All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines.
Product Code 127Z
SKU Barcode 5055017528325
Thread Dia mm 3.9
Attribute Group 1
Brand TIMCO

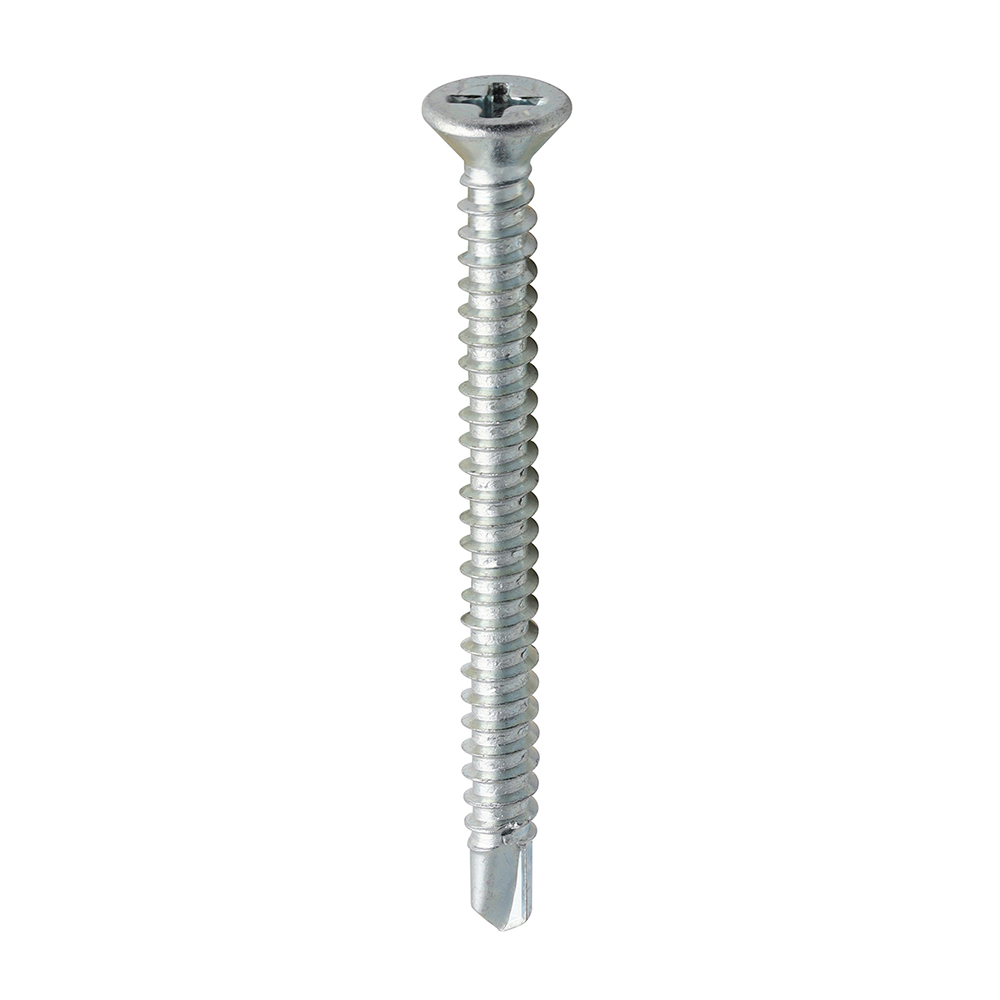

Window Fabrication Screws - Countersunk - PH - Self-Tapping - Self-Drilling Point - Zinc

3.9 x 45

  • Product Code: 127Z
  • Pack Type: Box
  • Pack Quantity: 500
  • Barcode: 5055017528325
