Product Information
Frequently used with auto feed machines when ‘pinning’ steel reinforcement inside PVCu frames.
Documents
Technical Specifications
Product Specification
| Length mm | 16 |
| Size mm | M4 x 16 |
| Finish | Zinc |
| Head Type | Countersunk Facet |
| Material | Carbon Steel |
| Point Type | Self-Drilling |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Driver Bit Size | PH2 |
| Max Drilling Thickness mm | 2.5 |
| Substrates | Steel |
| Pack Dimensions L x W x H mm | 135 x 90 x 60 |
| Pack Weight kg | 1.18 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| Approval | All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines. |
| Product Code | 231Z |
| SKU Barcode | 5055017529148 |
| Thread Dia mm | M4 |
Attribute Group 1
| Brand | TIMCO |

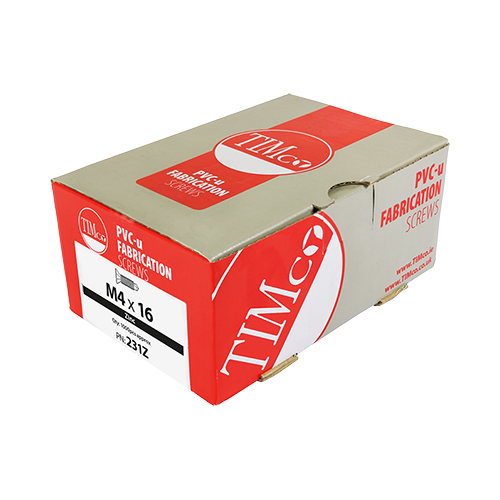

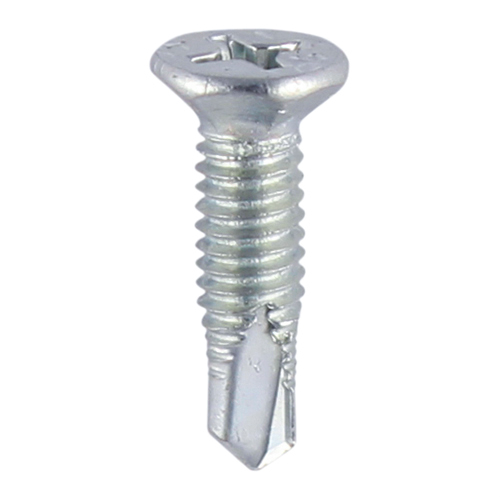

Window Fabrication Screws - Countersunk Facet - PH - Metric Thread - Self-Drilling Point - Zinc
M4 x 16
- Product Code: 231Z
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017529148
