Product Information
The TIMCO Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork.
Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Conforms to Eurocode 6 and service class 3
- Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber
Documents
Technical Specifications
Product Specification
| Bearing mm | 80 |
| Height mm | 215 |
| Joist Size W x H mm | 47 x 225 |
| Thickness mm | 2.4 |
| Width mm | 47 |
| Type | Welded |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Safe Working Load kN | 3.5 |
| Pack Dimensions L x W x H mm | 80 x 47 x 215 |
| Pack Weight kg | 0.56 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | N/A |
| CE Standard Web | BS EN 845-1:2013+A1:2016 |
| Eurocode | 6 |
| Service Class | 3 |
| Product Code | 47225WMHS |
| SKU Barcode | 5022456320728 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
| Approval | BS 5628 |
Attribute Group 1
| Brand | TIMCO |

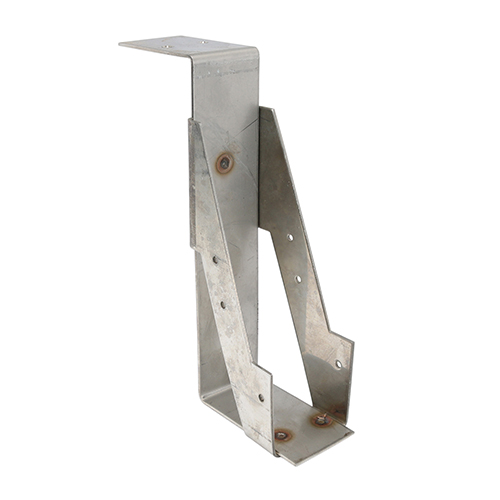

Welded Masonry Joist Hangers - A2 Stainless Steel
47 x 225
- Product Code: 47225WMHS
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456320728
