Product Information
Perfect for masonry cavity walls in domestic houses and small commercial buildings of up to two storeys and maximum 10m in height. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Tangle free design
Documents
Technical Specifications
Product Specifications
| Gauge | 2.3 |
| Material | Austenitic Stainless Steel (A2-304) |
Product Specification
| Length mm | 200 |
| Size L x Gauge mm | 200 x 2.3 |
| Type | Type 4 |
| Cavity Width mm | 50 to 75 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Height metre | 10 |
| Suitable for Cavities mm | 50 to 75 |
| Pack Dimensions L x W x H mm | 150 x 150 x 200 |
| Pack Weight kg | 2.69 |
| CE Standard Web | BS EN 845-1:2013+A1:2016 |
| Service Class | 3 |
| Product Code | 200WT4 |
| SKU Barcode | 5055893302095 |
Attribute Group 1
| Brand | TIMCO |

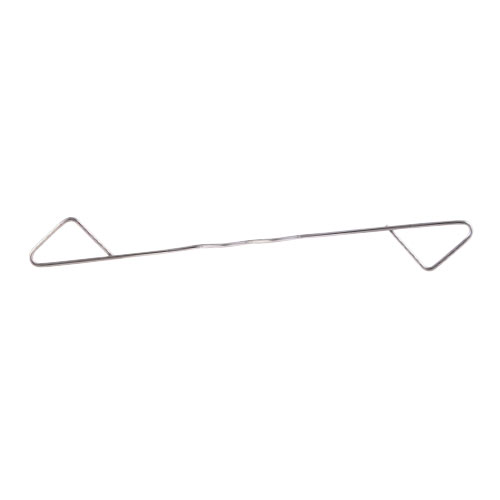

Wall Ties - Light Duty - Type 4 - A2 Stainless Steel
200mm
- Product Code: 200WT4

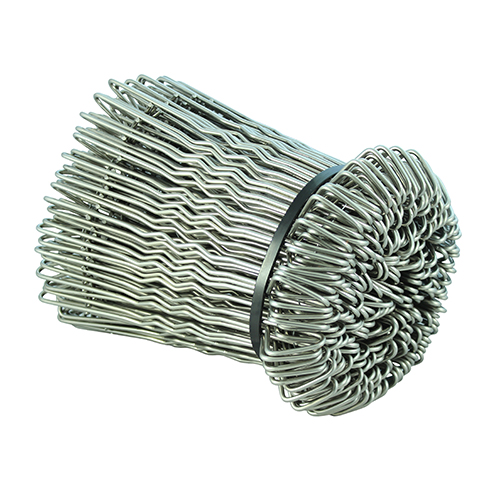

- Pack Type: Bundle
- Pack Quantity: 250
- Barcode: 5055893302095
