Product Information
Perfect for masonry cavity walls in domestic houses and small commercial buildings of up to three storeys and maximum 15m in height. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Tangle free design
Documents
Technical Specifications
Product Specifications
| Gauge | 3 |
| Material | Austenitic Stainless Steel (A2-304) |
Product Specification
| Length mm | 275 |
| Size L x Gauge mm | 275 x 3.0 |
| Type | Type 2 |
| Cavity Width mm | Up to 150 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Height metre | 15 |
| Suitable for Cavities mm | 126 to 150 |
| Pack Dimensions L x W x H mm | 165 x 165 x 275 |
| Pack Weight kg | 8.04 |
| CE Standard Web | BS EN 845-1:2013+A1:2016 |
| Service Class | 3 |
| Product Code | 275WT2 |
| SKU Barcode | 5055893352922 |
Attribute Group 1
| Brand | TIMCO |

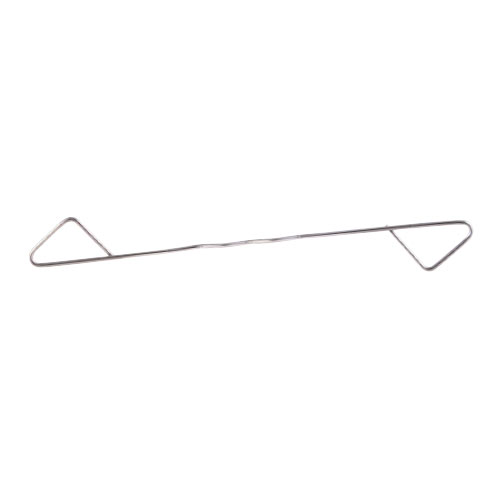

Wall Ties - General Duty - Type 2 - A2 Stainless Steel
275mm
- Product Code: 275WT2
- Pack Type: Bundle
- Pack Quantity: 250
- Barcode: 5055893352922
