Product Information
A high security, heavy duty hasp and staple for sheds, gates and doors in heavy domestic, commercial and agricultural applications. The vertical pattern fixing plate makes this ideal for fitting to a narrow stile door or frame. Bolt fixed for additional security. Fixings not included.
Documents
Technical Specifications
Product Specification
| Fixing Plate Size L x W mm | 50 x 150 |
| Hasp Plate Size L x W mm | 92 x 55 |
| Size inch | 6 |
| Size mm | 150 |
| Staple Plate Size L x W mm | 65 x 55 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Max Padlock Shackle Diameter mm | 15 |
| Pack Dimensions L x W x H mm | 160 x 20 x 290 |
| Pack Weight kg | 0.6 |
| Carton Qty Packs | 30 |
| Pallet Qty Packs | N/A |
| Product Code | VHS6BB |
| SKU Barcode | 5055893356210 |
| To Fit Carriage Bolt Dia mm | M12 |
| No of Bolt Holes | 2 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

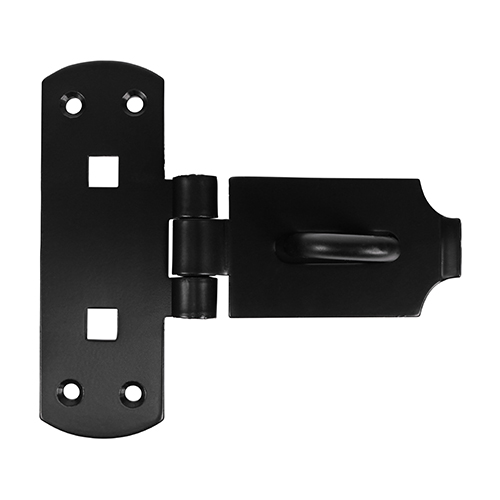

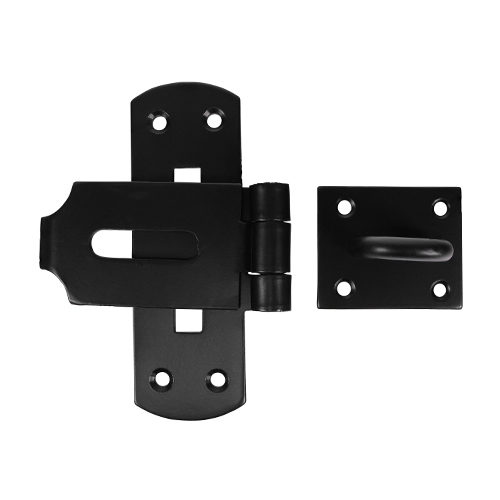

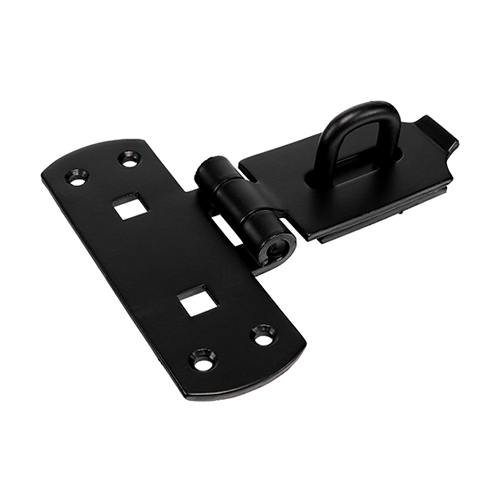

Vertical Pattern Bolt On Hasp & Staple - Heavy Duty - Black
6"
- Product Code: VHS6BB
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893356210
