Product Information

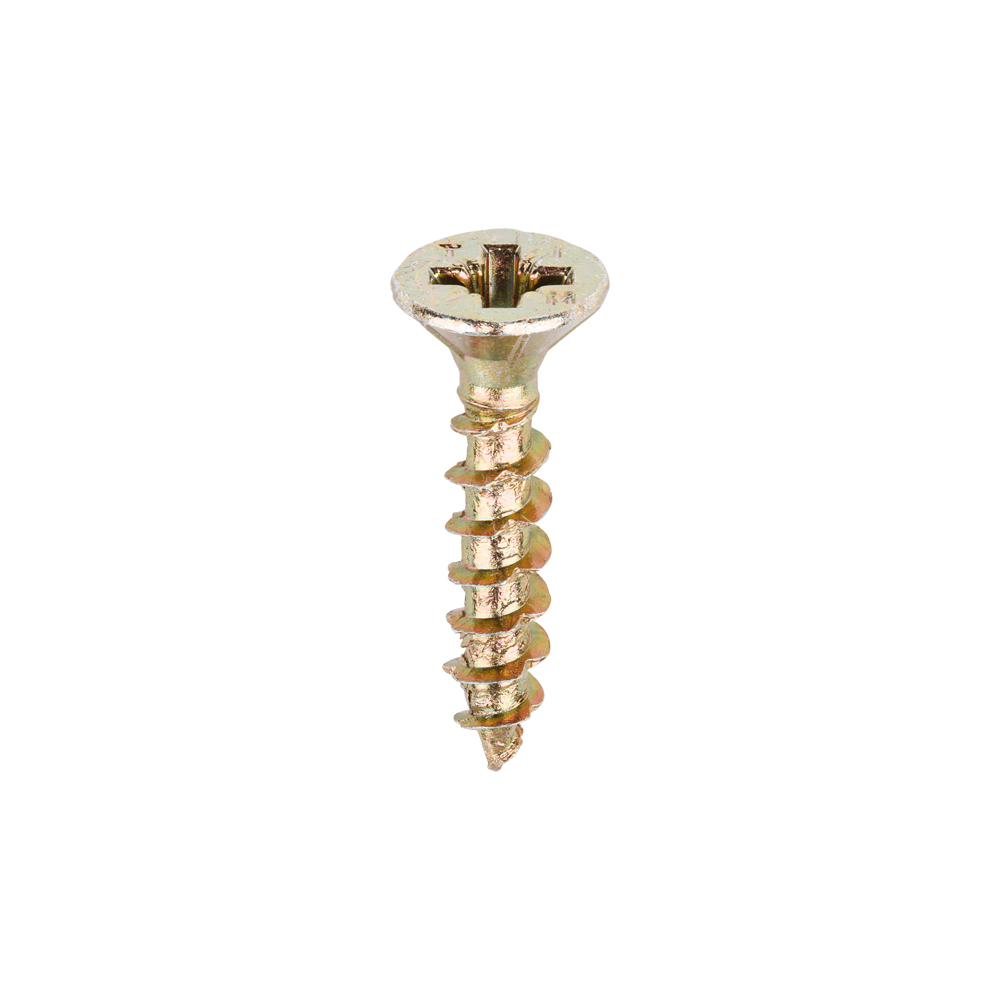

The unique patented Velocity screw has been specifically designed to give rapid installation into many different materials, whilst achieving exceptional pull-out resistance. It has been designed to give the user a consistent and reliable product that can be used in a variety of applications.
- Dual angle thread designed for superior hold
- Partially threaded stops the timber jacking. NOTE: Partially threaded from 40mm
- Rapid drive twist cut enhances drive performance
- Slash point tip helps prevent the timber splitting when screwing close to the edge, whilst also helping to reduce torque. NOTE: Slash point from 25mm and above
Documents
Technical Specifications
Product Specifications
| Gauge | 8 |
| Finish | Zinc & Yellow |
| Head Type | Double Countersunk with Ribs |
| Material | Carbon Steel |
| Point Type | Quick Start |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | Serrated Dual Angle |
| Driver Bit Size | PZ2 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Product Specification
| Length inch | 3/4 |
| Length mm | 20 |
| Diameter mm | 4.0 |
| Size mm | 4.0 x 20 |
| Thread Length mm | 20 |
| Lubrication | Wax |
| Shank Type | Rapid Drive Twist |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Indoor Outdoor Usage | Internal |
| Pack Dimensions L x W x H mm | 70 x 58 x 34 |
| Pack Weight kg | 0.24 |
| Carton Qty Packs | 75 |
| Pallet Qty Packs | 2700 |
| CE Standard Web | BS EN 14592:2008 |
| Service Class | 1 |
| Product Code | 40020VY |
| SKU Barcode | 5055331804686 |
| Size imp | 8 x 3/4 |
| Thread Dia mm | 4 |
| Inner Thread Dia mm | 2.52 |
| Head Dia mm | 7.71 |
Attribute Group 1
| Brand | TIMCO |

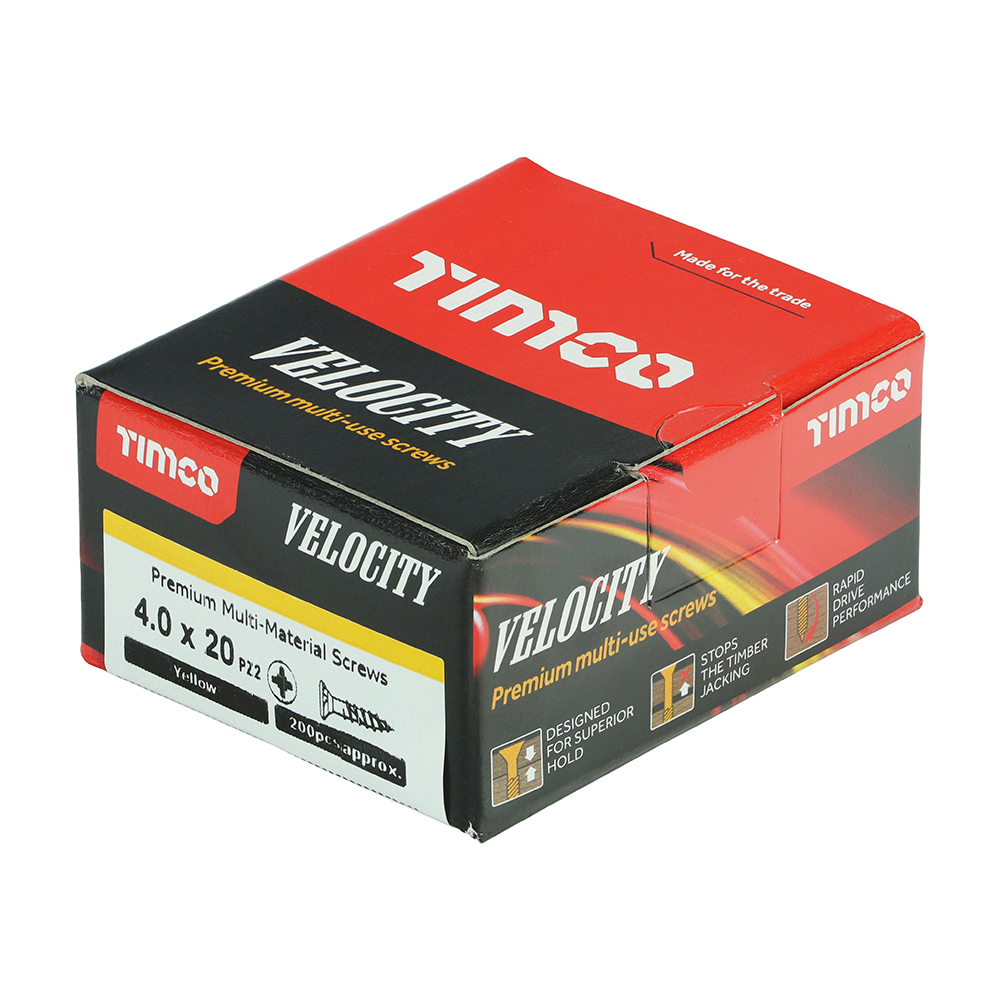

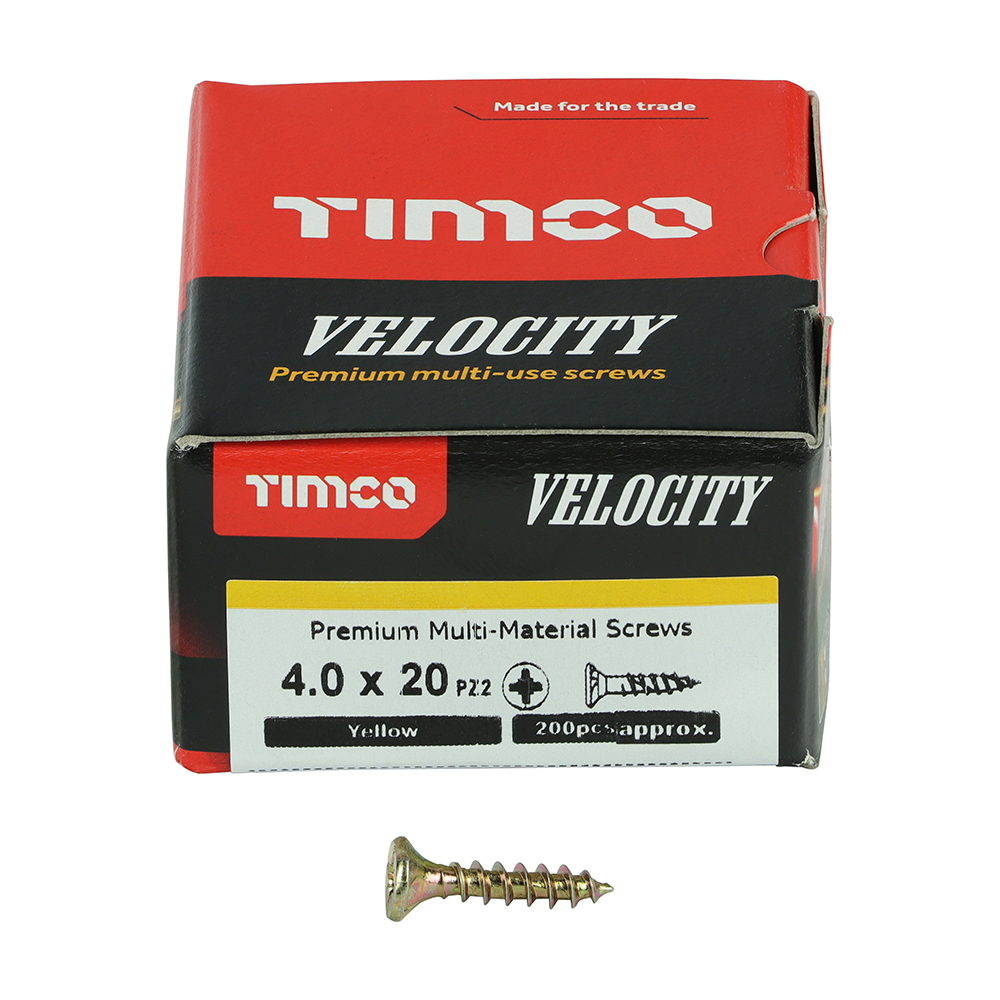

Velocity Premium Multi-Use Screws - PZ - Double Countersunk - Yellow
4.0 x 20
- Product Code: 40020VY
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055331804686
