Product Information

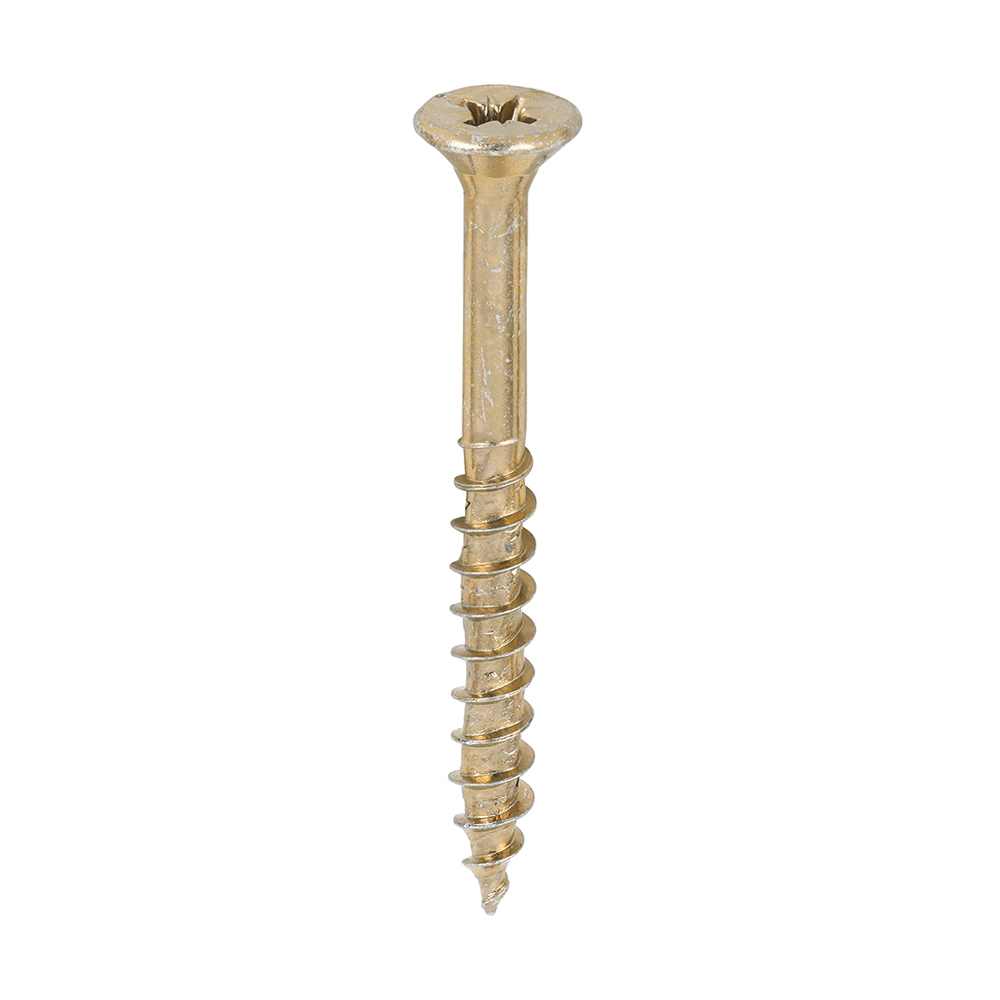

The unique patented Velocity screw has been specifically designed to give rapid installation into many different materials, whilst achieving exceptional pull-out resistance. It has been designed to give the user a consistent and reliable product that can be used in a variety of applications.
- Dual angle thread designed for superior hold
- Partially threaded stops the timber jacking. NOTE: Partially threaded from 40mm
- Rapid drive twist cut enhances drive performance
- Slash point tip helps prevent the timber splitting when screwing close to the edge, whilst also helping to reduce torque. NOTE: Slash point from 25mm and above
Documents
Technical Specifications
Product Specifications
| Gauge | 10 |
| Finish | Zinc & Yellow |
| Head Type | Double Countersunk with Ribs |
| Material | Carbon Steel |
| Point Type | Single Slash |
| Recess Type | Pozi |
| Thread Coverage | Partially Threaded |
| Thread Type | Serrated Dual Angle |
| Driver Bit Size | PZ2 |
| Included Items | PZ2 38mm Power Bit (Qty 1) |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Product Specification
| Length inch | 2 |
| Length mm | 50 |
| Diameter mm | 5.0 |
| Size mm | 5.0 x 50 |
| Thread Length mm | 30 |
| Lubrication | Wax |
| Shank Type | Rapid Drive Twist |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 160 x 140 x 118 |
| Pack Weight kg | 2.75 |
| Carton Qty Packs | 4 |
| Pallet Qty Packs | 180 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 50050VYTUB |
| SKU Barcode | 5056110846347 |
| Size imp | 10 x 2 |
| Thread Dia mm | 5 |
| Inner Thread Dia mm | 3.5 |
| Head Dia mm | 9.5 |
Attribute Group 1
| Brand | TIMCO |

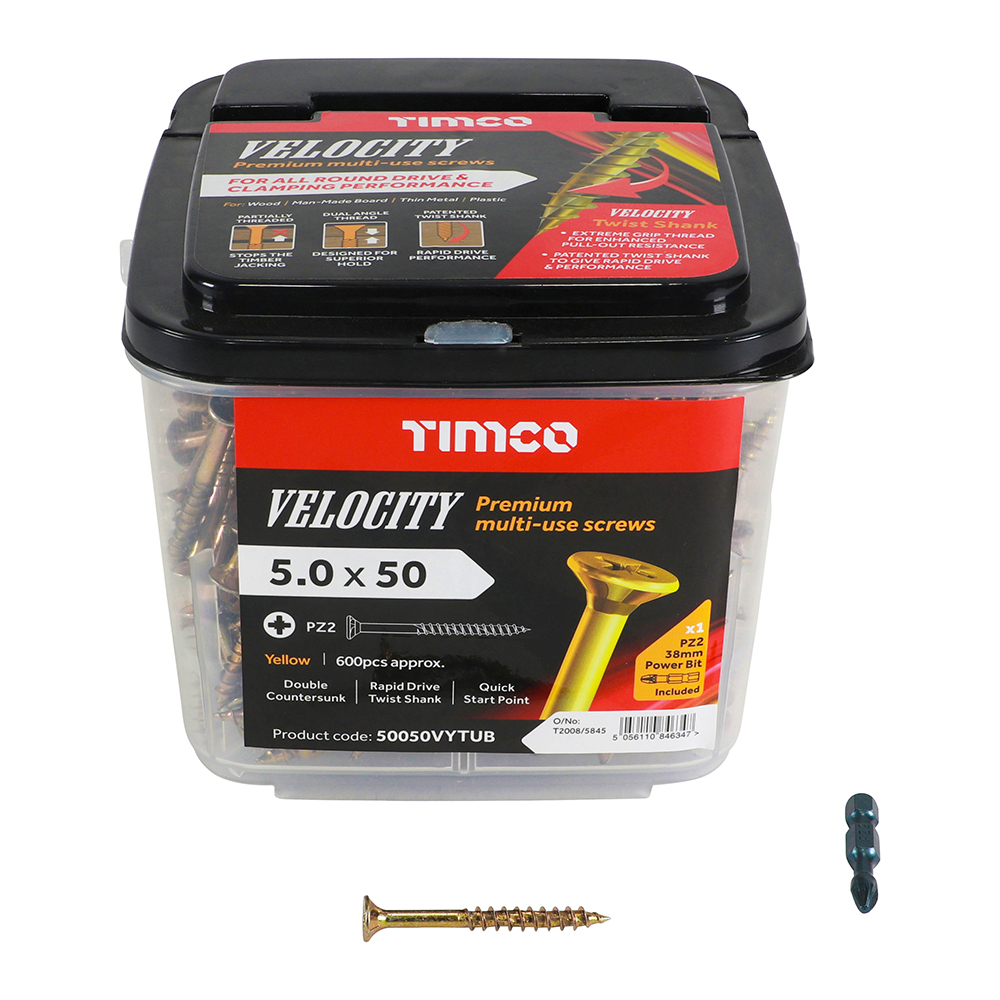

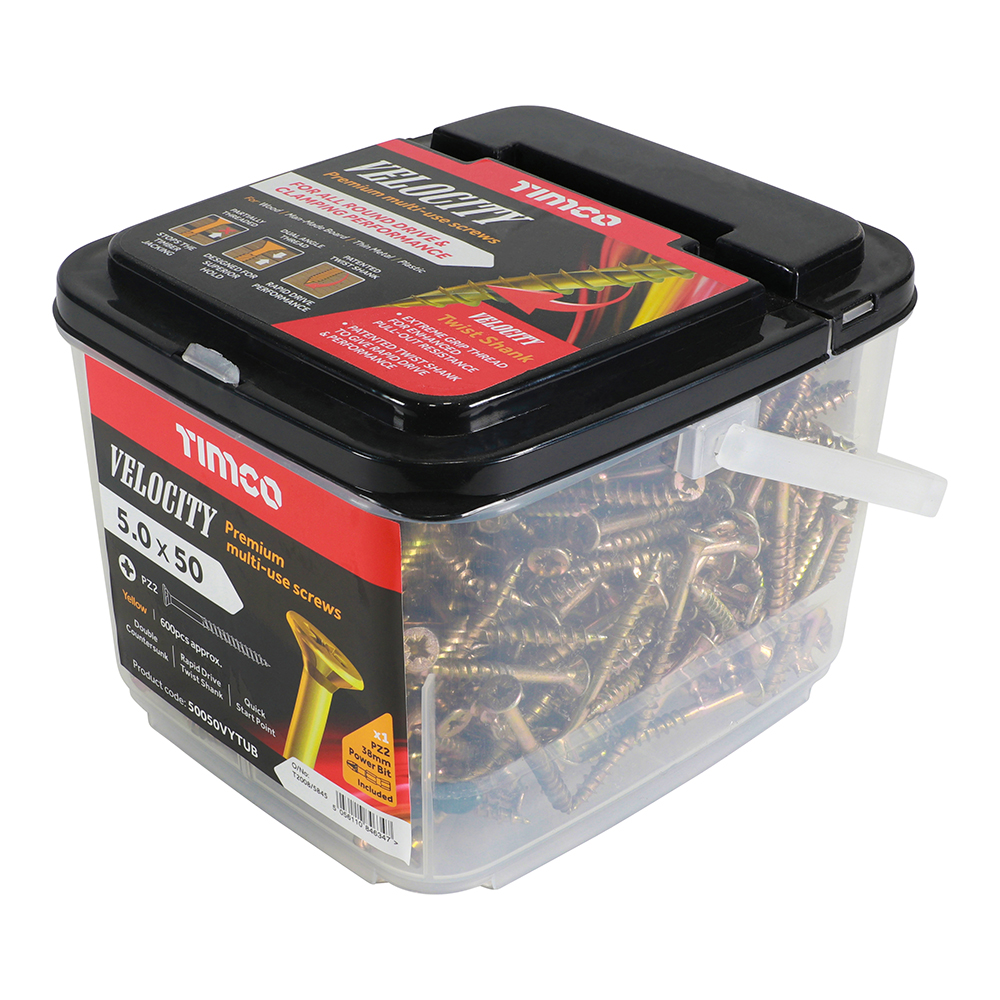

Velocity Premium Multi-Use Screws - PZ - Double Countersunk - Yellow
5.0 x 50
- Product Code: 50050VYTUB
- Pack Type: Tub
- Pack Quantity: 600
- Barcode: 5056110846347
