Product Information
A traditional twin-thread woodscrew with single lead start for a fast installation. Mainly used in soft timber applications or masonry with a plastic plug. NOTE: Partially threaded from 1 1/4".
- Double countersunk head reduces the likelihood of head shear and assists completion of countersinking
- Partially threaded from 1 1/4” and above
- Made from C10-18 steel to ensure consistent quality
- 60° twin-threads with parallel shank for faster insertion and greater pull-out resistance
- Surface hardened to prevent torque shearing under load and core hardened for improved ductility
- 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specifications
| Gauge | Assorted |
| Finish | Zinc |
| Head Type | Double Countersunk |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Pozi |
| Thread Type | 60° Twin Threads |
| Driver Bit Size | PZ2 |
| Substrates | Softwood, Masonry (with plug) |
| Contents | 6 x 1/2" (Qty 180), 6 x 5/8" (Qty 190), 6 x 3/4" (Qty 130), 6 x 1" (Qty 100), 6 x 1 1/4" (Qty 110), 8 x 3/4" (Qty 100), 8 x 1 1/4" (Qty 85), 8 x 1 1/2" (Qty 65), 8 x 1" (Qty 60), 8 x 2" (Qty 50), 10 x 2" (Qty 35), 10 x 2 1/2" (Qty 35) |
Product Specification
| Length inch | Assorted |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 42 x 298 x 168 |
| Pack Weight kg | 2.014 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 108 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | WOODTRAY |
| SKU Barcode | 5055331818232 |
| Size imp | Assorted |
Attribute Group 1
| Brand | TIMCO |

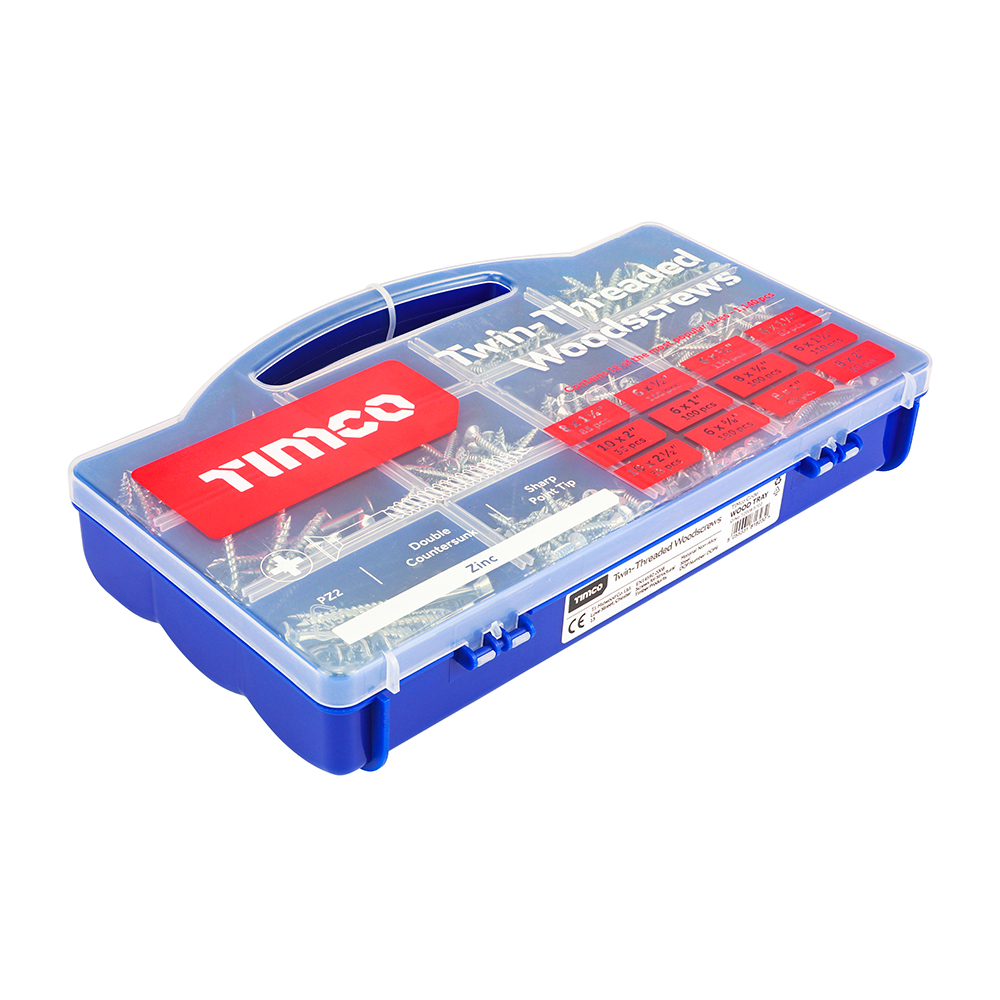

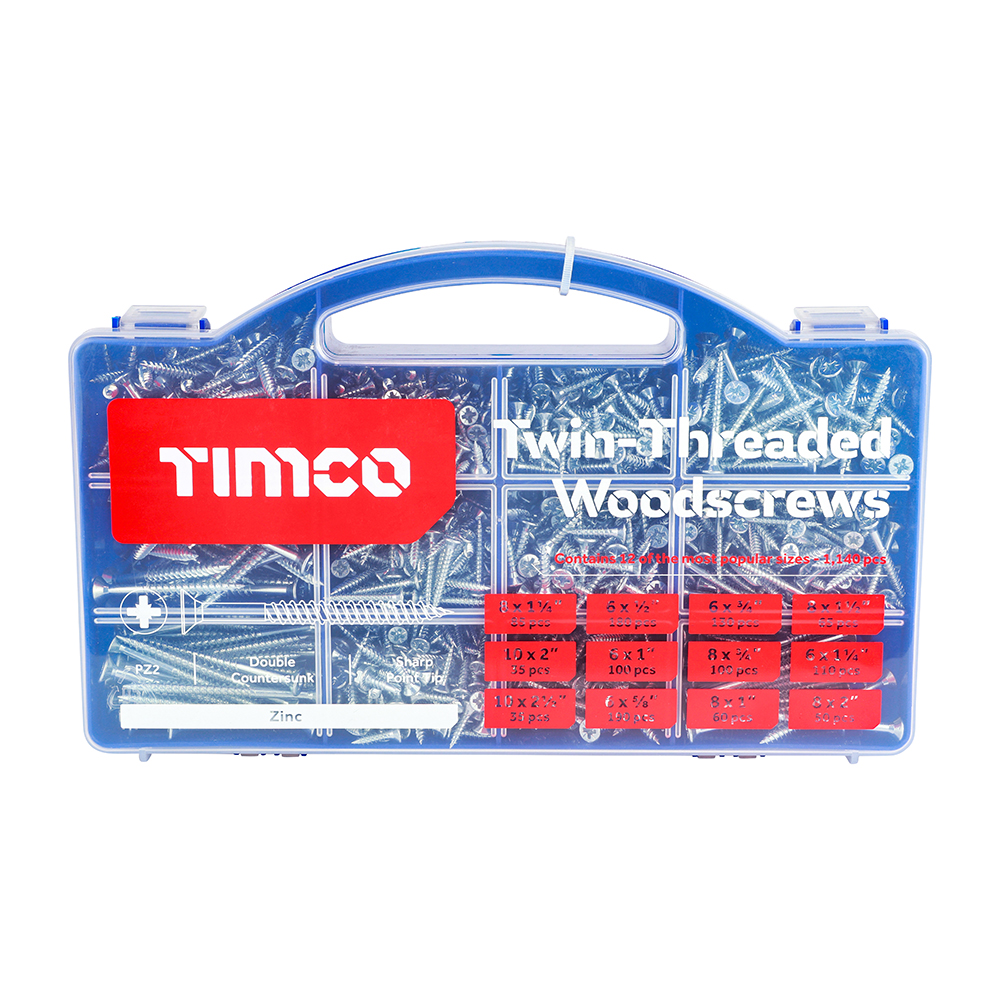

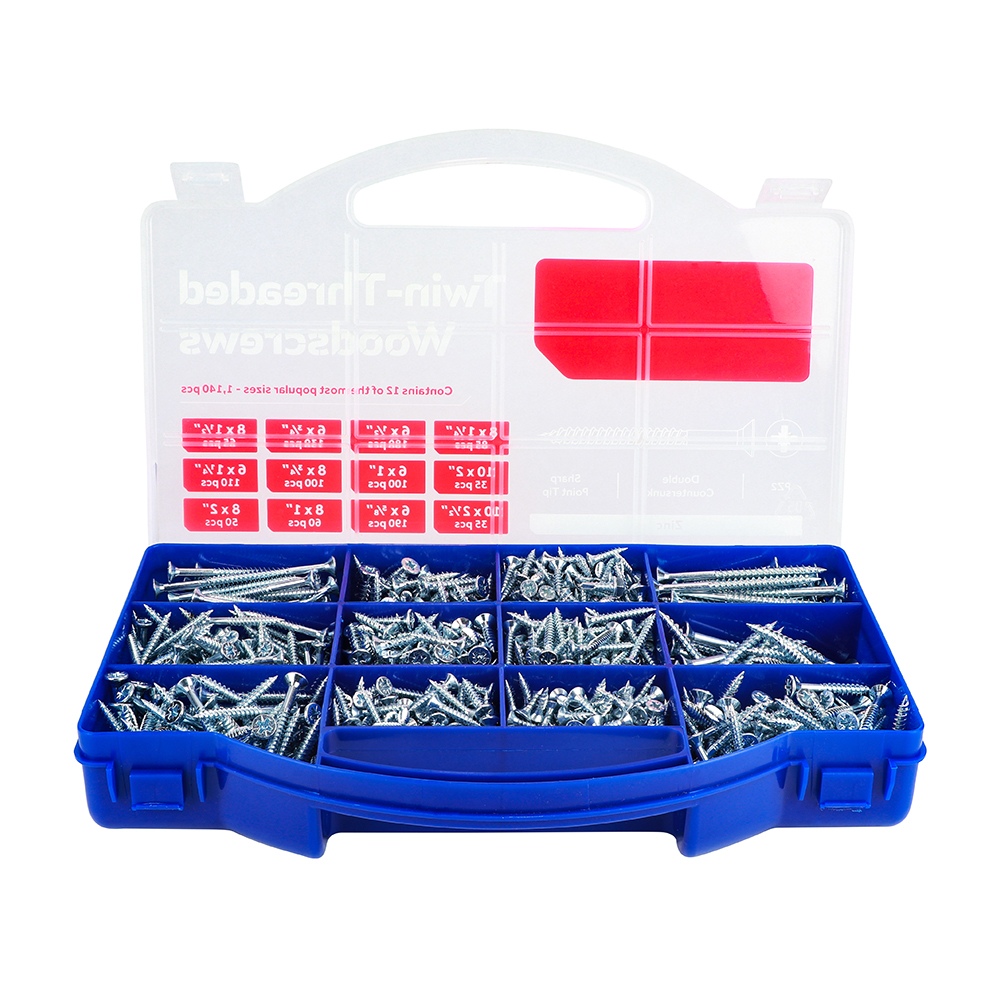

Twin-Threaded Woodscrews - Mixed Tray - PZ - Double Countersunk - Zinc
1,140pcs
- Product Code: WOODTRAY
- Pack Type: Tray
- Pack Quantity: 1140
- Barcode: 5055331818232
