Product Information

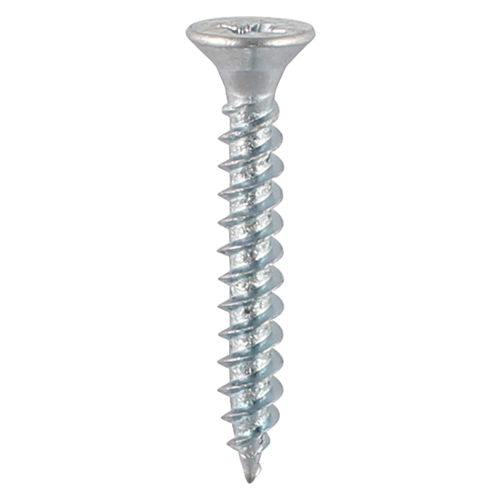

A traditional twin-thread woodscrew with single lead start for a fast installation. Mainly used in soft timber applications or masonry with a plastic plug.
- Double countersunk head reduces the likelihood of head shear and assists completion of countersinking
- Partially threaded from 1 1/4” and above
- Made from C10-18 steel to ensure consistent quality
- 60° twin-threads with parallel shank for faster insertion and greater pull-out resistance
- Surface hardened to prevent torque shearing under load and core hardened for improved ductility
- 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specifications
| Gauge | 8 |
| Finish | Zinc |
| Head Type | Double Countersunk |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Twin Threads |
| Driver Bit Size | PZ2 |
| Substrates | Softwood, Masonry (with plug) |
Product Specification
| Length inch | 1 |
| Length mm | 25 |
| Diameter mm | 4.0 |
| Size mm | 4.0 x 25 |
| Thread Length mm | 25 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.049 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 7200 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 00081CWZP |
| SKU Barcode | 5055331828286 |
| Size imp | 8 x 1 |
| Thread Dia mm | 4 |
| Inner Thread Dia mm | 2.7 |
| Head Dia mm | 8.2 |
Attribute Group 1
| Brand | TIMCO |

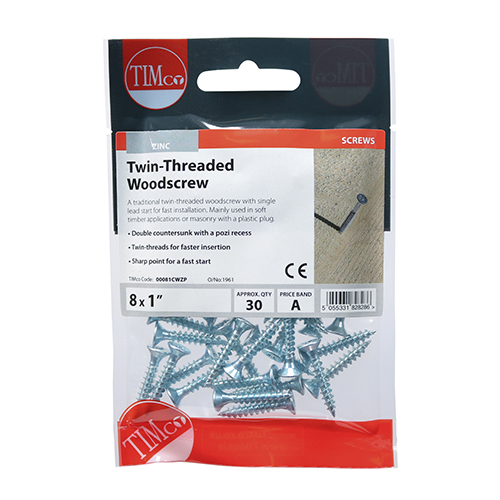

Twin-Thread Woodscrews - PZ - Double Countersunk - Zinc
8 x 1
- Product Code: 00081CWZP
- Pack Type: TIMpac
- Pack Quantity: 30
- Barcode: 5055331828286
