Product Information
Twin slot shelf brackets are used in conjunction with uprights. They are available in varying lengths to suit the depth of shelf required. Maximum weight loading's are shown for each individual bracket but consideration should also be given to the wall structure, types of fixing, shelving types and distances between brackets.
Documents
Technical Specifications
Product Specification
Depth mm 81.5
Shelf Length mm 470
Size L x W mm 484 x 13.5
Thickness mm 1.6
Total Length mm 484
Width mm 13.5
Fixing Hole Qty 2
Max Recommended Load kg 81
Pack Dimensions L x W x H mm 485 x 10 x 80
Pack Weight kg 0.546
Carton Qty Packs 30
Pallet Qty Packs 1440
Product Code 712258
SKU Barcode 5056110816005
Rec Screw Dia mm 5.0
Product Specifications
Colour White
Finish Antimicrobial Powder Coat
Material Steel
Attribute Group 1
Brand TIMCO

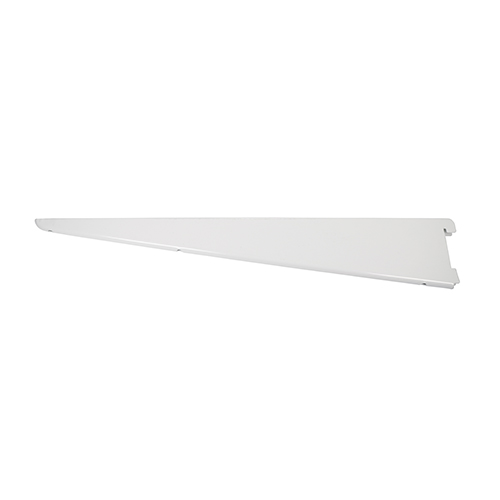

Twin Slot Shelf Bracket - White

470mm

  • Product Code: 712258
  • Pack Type: Unit
  • Pack Quantity: 1
  • Barcode: 5056110816005
