Product Information
Designed for use on medium duty doors in domestic applications.
- Two lubricated ball bearings prevent knuckle wear for long lasting performance
- Ball bearings provide a smooth door operation
- Button tip for improved aesthetics
- Manufactured from steel with a variety of plating finishes
Documents
Technical Specifications
Product Specification
| Length inch | 3 |
| Length mm | 76 |
| Open Width mm | 51 |
| Screw Size mm | 4.0 x 25 |
| Size L x W mm | 76 x 51 |
| Thickness mm | 2.2 |
| Bearing Type | Ball Bearing |
| Corner Type | Square |
| Knuckle Type | Ball Bearing |
| Pin Material | Steel |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 12 |
| No of CSK Screws | 12 |
| Pack Dimensions L x W x H mm | 148 x 50 x 22 |
| Pack Weight kg | 0.223 |
| Carton Qty Packs | 50 |
| Pallet Qty Packs | 3000 |
| Offers | Clearance |
| Product Code | 340369 |
| SKU Barcode | 5056110826950 |
| Size imp | 3 |
| Screw Size imp | 8 x 1 |
| Knuckle Dia mm | 10.6 |
| Hole Dia mm | 6 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Epoxy White |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

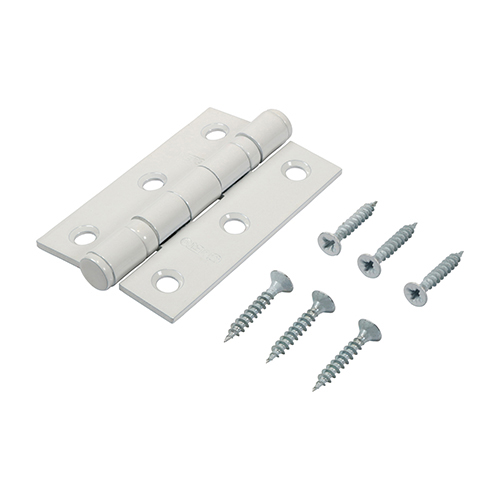

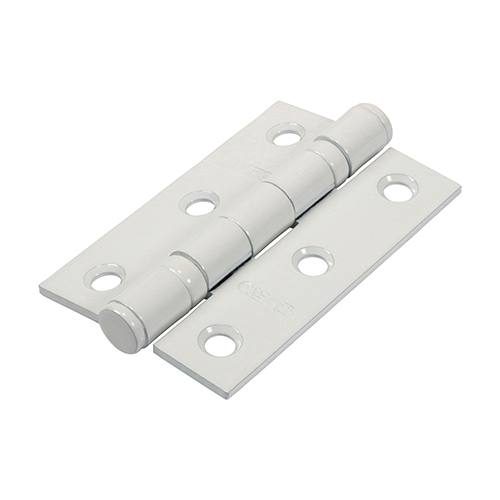

Twin Ball Bearing Hinges - Steel - White
76 x 51
- Product Code: 340369
- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5056110826950
