Product Information
A medium duty tubular latch suitable for use in domestic and commercial applications. The latch should be used with sprung door furniture.
- Suitable for 30 & 60 minute fire doors
- Bolt through
- Use with sprung furniture
- Complete with dust box and fixing screws
Documents
Technical Specifications
Product Specification
| Backset mm | 45 |
| Faceplate Size H x W mm | 58 x 27 |
| Keep Size H x W mm | 57 x 24 |
| Lock Case Depth mm | 67 |
| Lock Case Height mm | 21 |
| Lock Case Size H x D mm | 21 x 67 |
| Lock Case Width mm | 15 |
| Lock Follower Backset mm | 45 |
| Screw Size mm | 4.0 x 25 |
| Size mm | 67 / 45 |
| Faceplate Type | Square |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 4 |
| No of CSK Screws | 4 |
| Pack Dimensions L x W x H mm | 108 x 76 x 29 |
| Pack Weight kg | 0.106 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 2400 |
| BS EN Classification | NPDM410F-B010 |
| CE Standard Web | BS EN 12209:2003 |
| Certifire Number | CF5531 |
| Fire Rating | 30 & 60 Minutes |
| Product Code | 675303 |
| SKU Barcode | 5056110837505 |
| Screw Size imp | 8 x 1 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Electro Brass |
Attribute Group 1
| Brand | TIMCO |

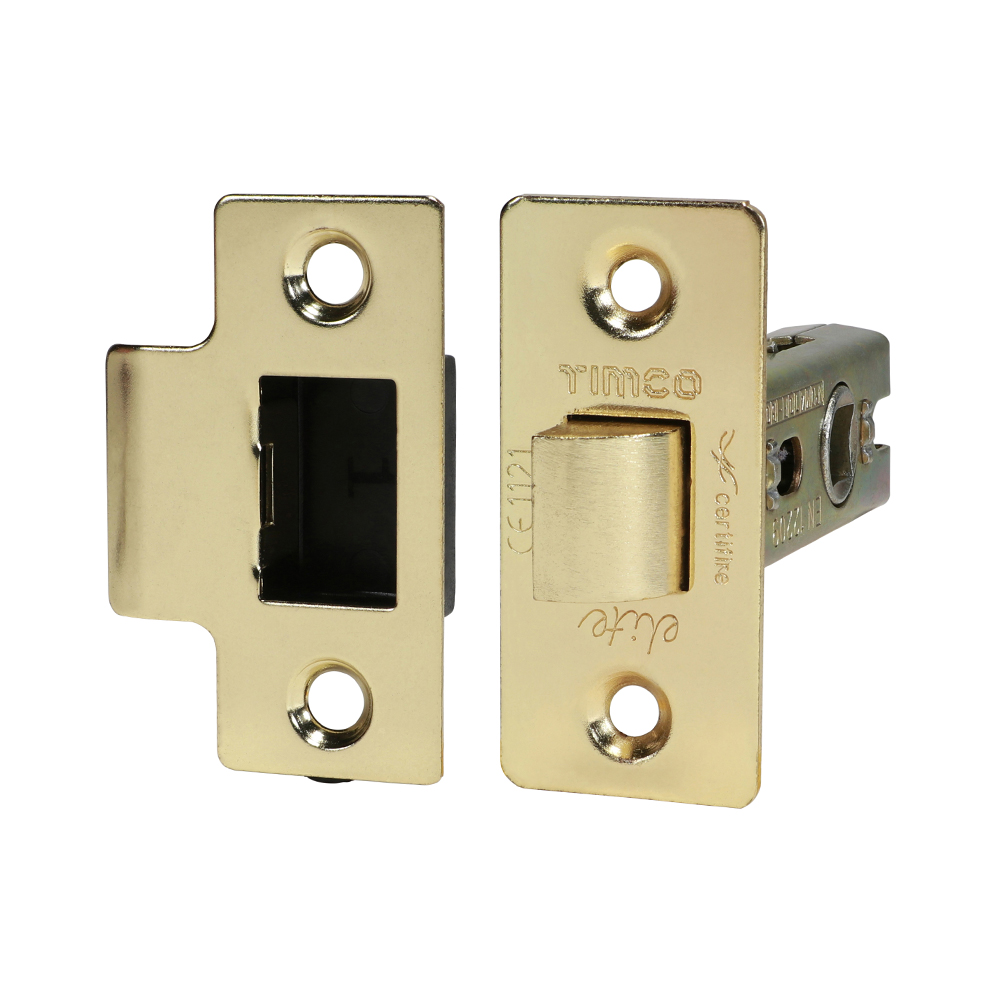

Tubular Latch - Electro Brass
67 case / 45 backset
- Product Code: 675303

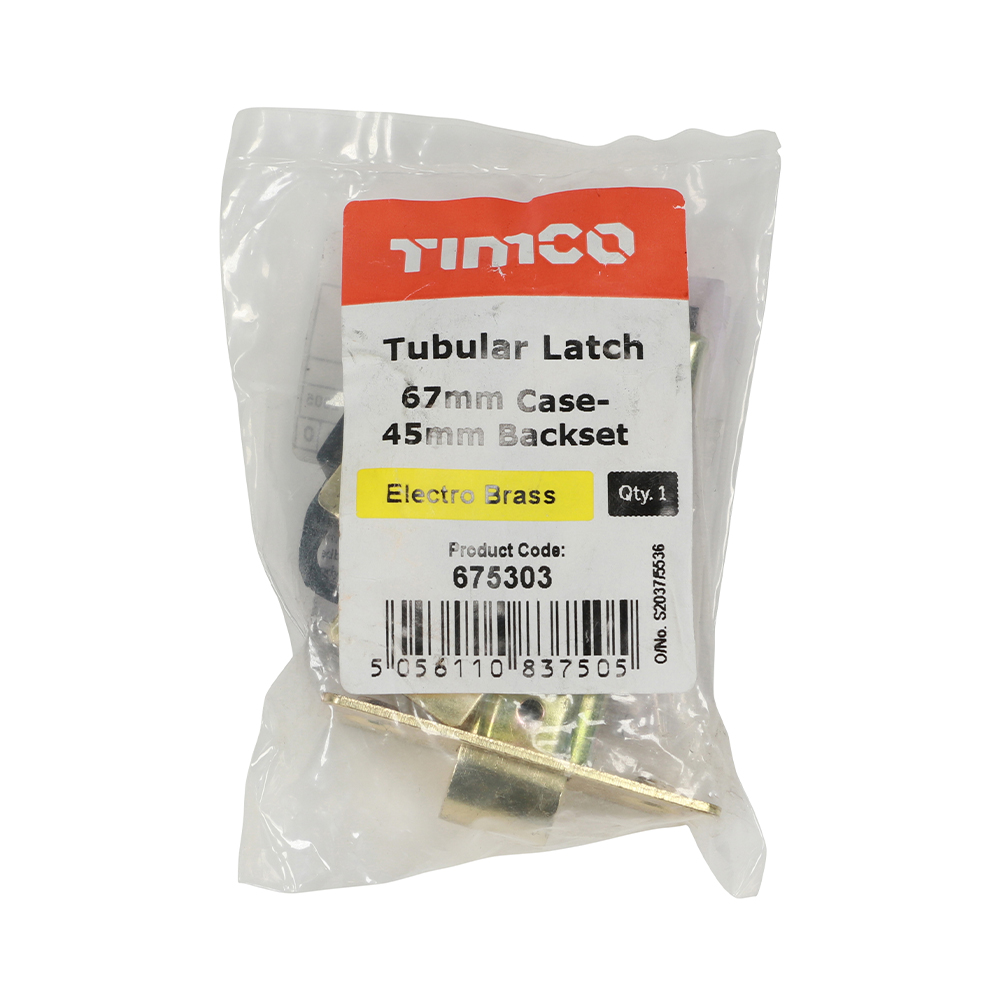

- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110837505
