Product Information
A medium duty tubular latch suitable for use in domestic and commercial applications. The latch should be used with sprung door furniture.
- Suitable for 30 & 60 minute fire doors
- Bolt through
- Use with sprung furniture
- Complete with dust box and fixing screws
Documents
Technical Specifications
Product Specification
| Backset mm | 45 |
| Faceplate Size H x W mm | 58 x 27 |
| Keep Size H x W mm | 57 x 24 |
| Lock Case Depth mm | 67 |
| Lock Case Height mm | 21 |
| Lock Case Size H x D mm | 21 x 67 |
| Lock Case Width mm | 15 |
| Lock Follower Backset mm | 45 |
| Screw Size mm | 4.0 x 25 |
| Size mm | 67 / 45 |
| Faceplate Type | Square |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 228 x 117 x 30 |
| Pack Weight kg | 0.136 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| BS EN Classification | NPDM410F-B010 |
| CE Standard Web | BS EN 12209:2003 |
| Certifire Number | CF5531 |
| Fire Rating | 30 & 60 Minutes |
| Product Code | 675303P |
| SKU Barcode | 5056110888583 |
| Size imp | 2.5 |
| Screw Size imp | 8 x 1 |
Product Specifications
| Finish | Electro Brass |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

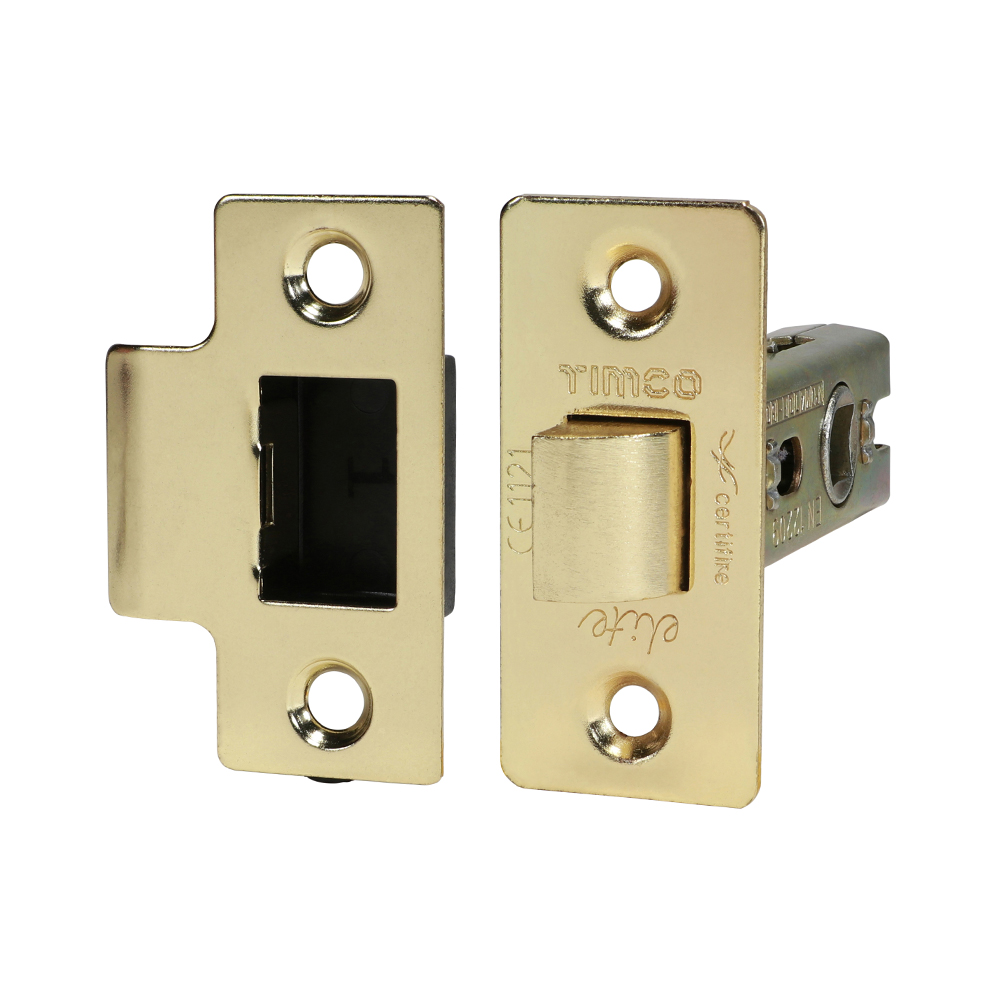

Tubular Latch - Electro Brass
67 case / 45 backset
- Product Code: 675303P

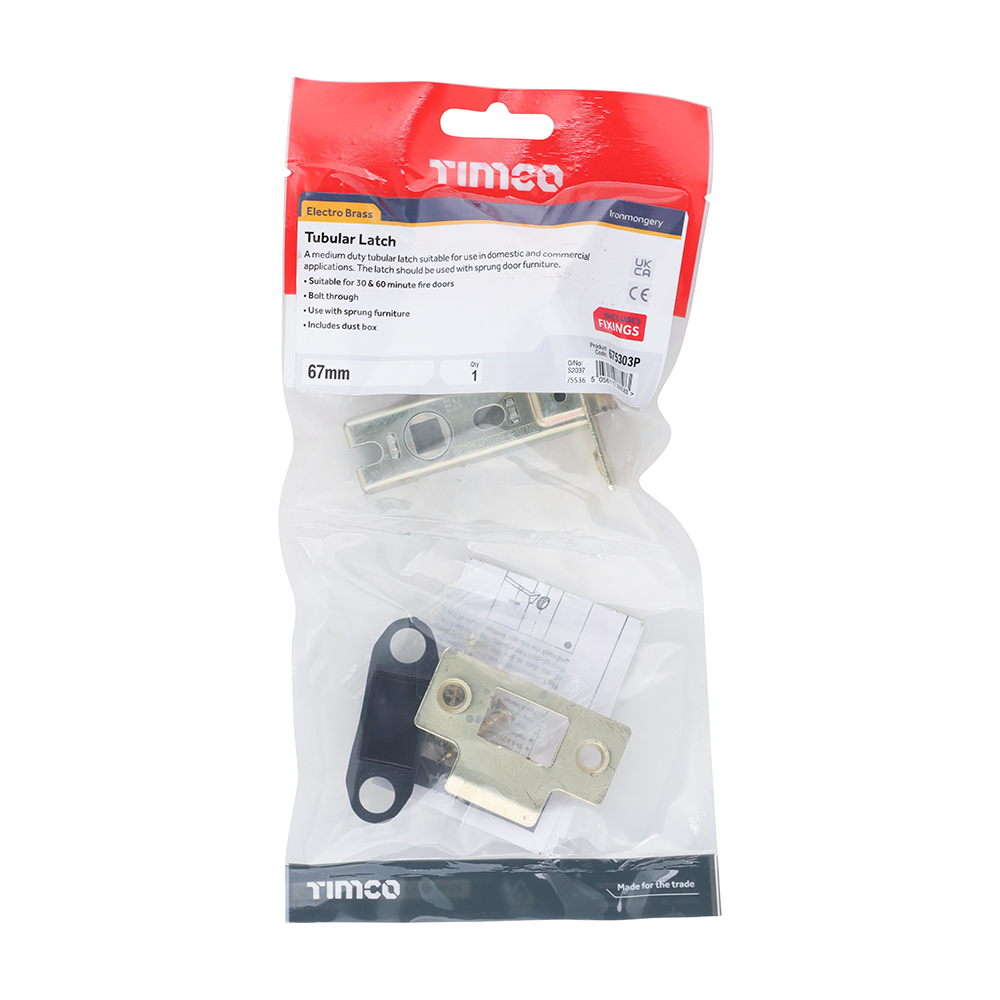

- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5056110888583
