Product Information
For fixing trusses, girders and rafters to a wall plate. Can also be used for general applications as a multi-purpose connector to provide restraint whenever two timber members cross.
Documents
Technical Specifications
Product Specification
| Thickness mm | 1 |
| Total Height mm | 110 |
| Width mm | 38 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Safe Working Load Short Term kN | 3.18 |
| Pack Dimensions L x W x H mm | 150 x 38 x 40 |
| Pack Weight kg | 0.07 |
| Carton Qty Packs | 25 |
| Pallet Qty Packs | N/A |
| Product Code | 38TC |
| SKU Barcode | 5022456313430 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

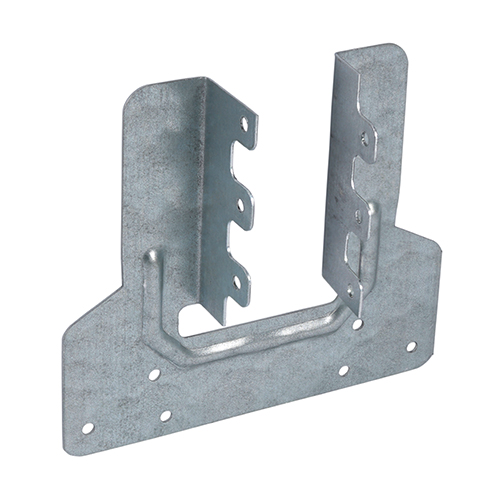

Truss Clips - Galvanised
38 x 110
- Product Code: 38TC
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456313430
