Product Information

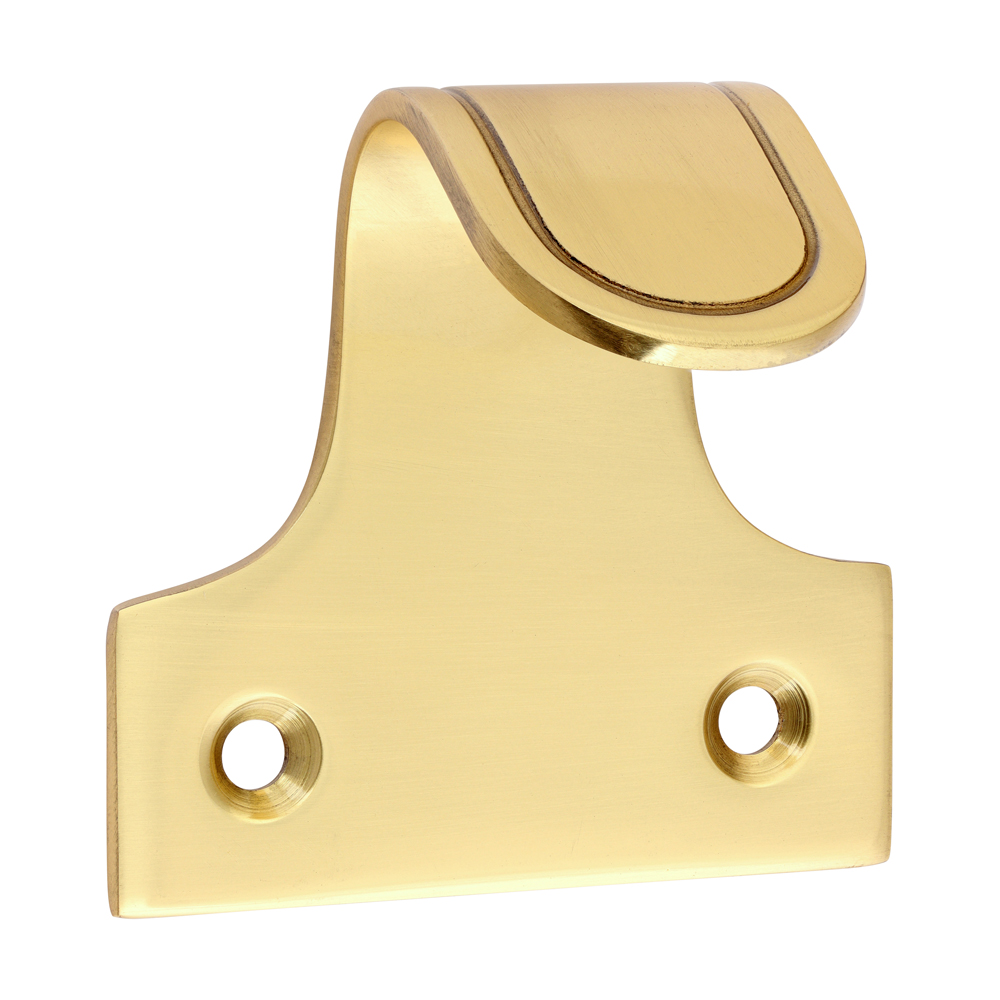

Use to aid lifting wooden sash windows open. Sleek hook shape for user comfort and easy grip to move the window with ease. Commonly fitted in pairs on larger windows for tandem lifting.
- Internal use with wooden sash windows
- Manufactured from solid brass
- Screw fixing
- Fixings included
Documents
Technical Specifications
Product Specification
| Centres mm | 33 |
| Depth mm | 2.3 |
| Height mm | 19 |
| Screw Size mm | 3.5 x 25 |
| Size mm | 52 |
| Width mm | 52 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| No of CSK Screws | 2 |
| Pack Dimensions L x W x H mm | 104 x 74 x 32 |
| Pack Weight kg | 0.048 |
| Carton Qty Packs | 240 |
| Pallet Qty Packs | N/A |
| Product Code | 949207 |
| SKU Barcode | 5056601906833 |
| Rec Screw Dia mm | 3.5 |
Product Specifications
| Finish | Polished Brass |
| Material | Brass |
Attribute Group 1
| Brand | TIMCO |

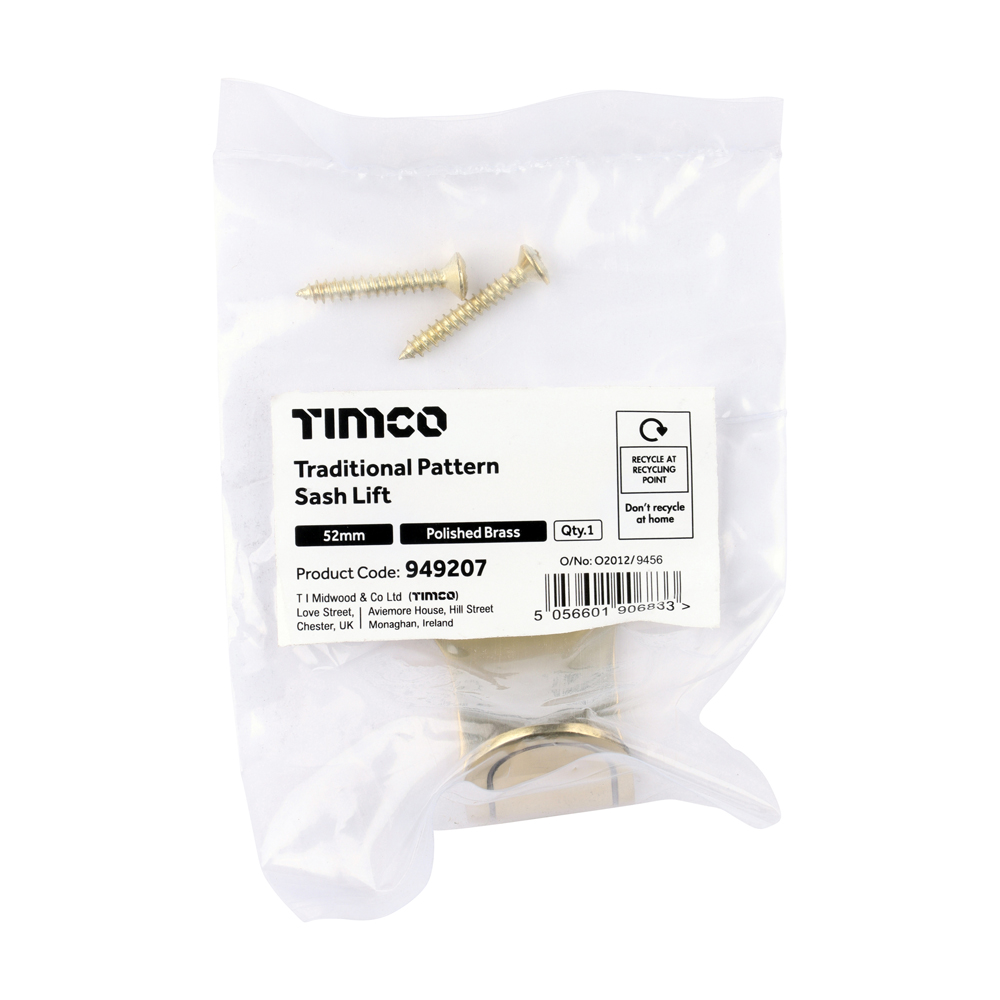

Traditional Pattern Sash Lift - Polished Brass
52mm
- Product Code: 949207
- Pack Type: Bag
- Pack Quantity: 1
- Barcode: 5056601906833
