Product Information
A high quality diamond blade, manufactured using premium diamond powder and laser welded turbo segments, with a vented heavy duty body for exceptional cutting speed, accuracy and lifespan. Suitable for use on most medium to hard density materials including Concrete, Brick, Stone, Paving and much more.
- Long Life
- Fast cutting
- Heavy duty body
- Self cooling
Documents
Technical Specifications
Product Specification
| Bore mm | 22.2 |
| Segment Height mm | 10 |
| Colour | Blue |
| Material | Hardened Carbon Steel with Diamond Segment |
| Weld Type | Laser |
| Max RPM | 6,650 |
| Substrates | Concrete, Brick, Slate, Slabs, Sandstone, Clay Tiles, Limestone |
| Pack Dimensions L x W x H mm | 8 x 234 x 278 |
| Pack Weight kg | 0.62 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Approval | oSa Approved |
| Safety Standard | BS EN 13236 |
| Product Code | GPL230222 |
| SKU Barcode | 5055017575732 |
| Disc Dia mm | 230 |
| Disc Dia inch | 9 |
Attribute Group 1
| Brand | TIMCO |

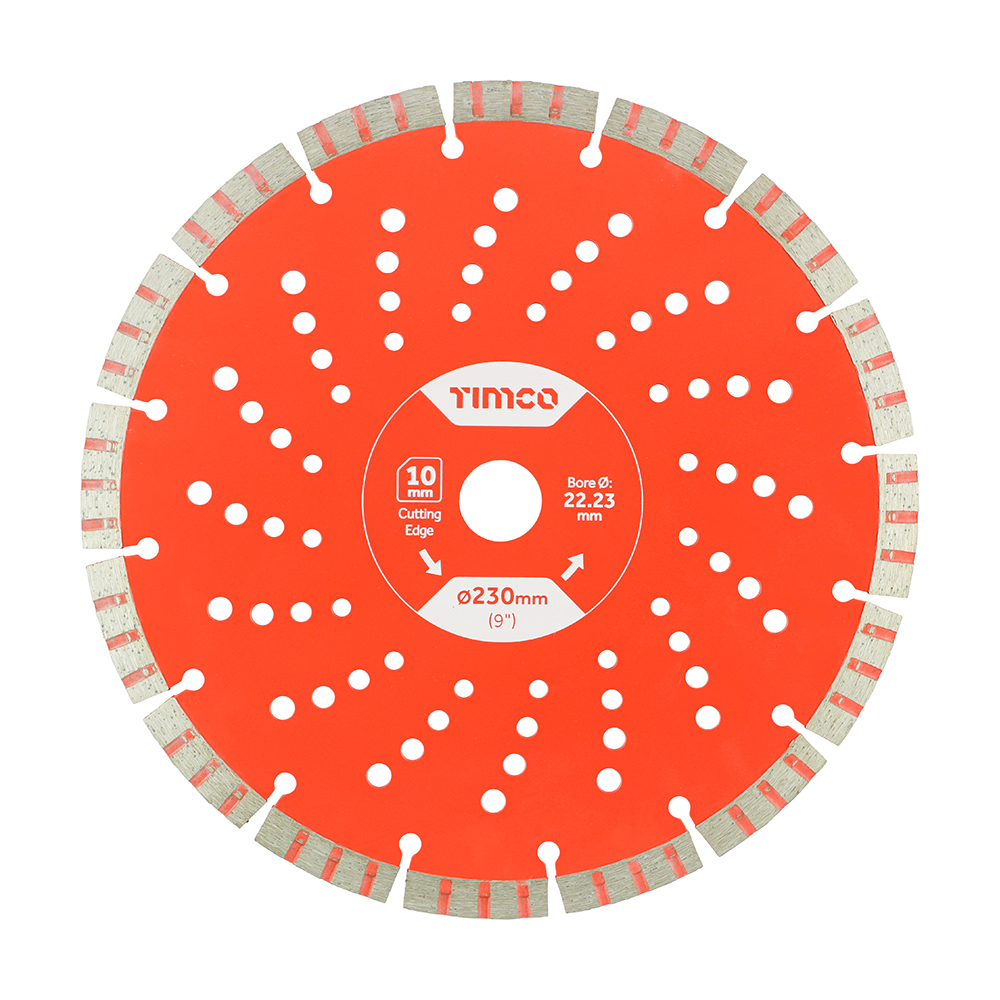

Trade Diamond Blade - Segmented
230 x 22.2
- Product Code: GPL230222
- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5055017575732
