Product Information

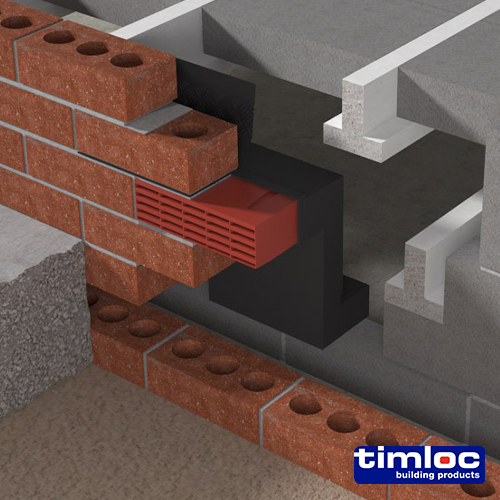

Fits on to the lower rear opening of the telescopic underfloor ventilator to allow a standard 110mm external diameter plastic underground drainage pipe to be connected via a coupling connection.
Documents
Technical Specifications
Product Specification
| Height mm | 50 |
| Length mm | 100 |
| Diameter mm | 110 |
| Width mm | 215 |
| Type | Underfloor Duct Adaptor |
| Pack Dimensions L x W x H mm | 217 x 111 x 118 |
| Pack Weight kg | 0.116 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | N/A |
| Product Code | LOC1205 |
| SKU Barcode | 5036889006630 |
Product Specifications
| Colour | Black |
| Material | Plastic |
Attribute Group 1
| Brand | TIMLOC |

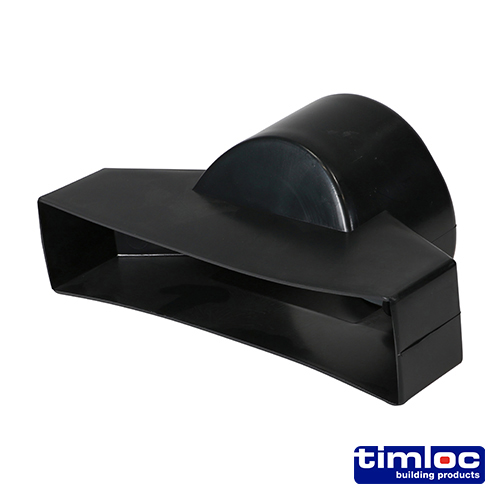

Timloc Underfloor Vent - Duct Adaptor - 1205
To suit 110mm diameter duct
- Product Code: LOC1205
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5036889006630
