Product Information

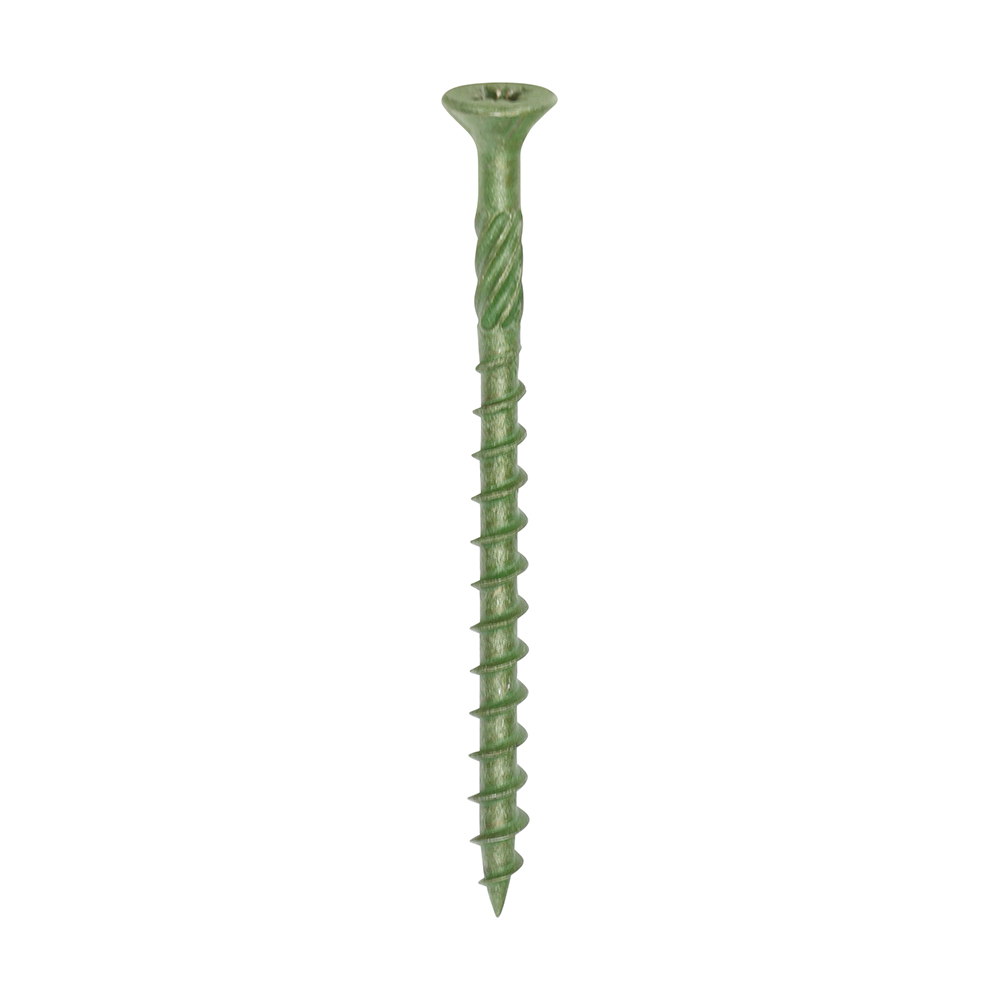

An economic but highly effective softwood decking screw. Plated to withstand up to 500 hours in a salt spray cabinet and designed to give a rapid installation and a secure fixing.
- Ribs under head for improved countersinking
- Helix shank for removing debris and to improve clamping
- 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specifications
| Gauge | 9 |
| Colour | Green |
| Finish | Exterior (Green Organic) |
| Head Type | Double Countersunk with Ribs |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Pozi |
| Thread Coverage | Partially Threaded |
| Thread Type | 40° Single Deep |
| Driver Bit Size | PZ2 |
| Substrates | Hardwood, Softwood |
Product Specification
| Length inch | 2 1/2 |
| Length mm | 60 |
| Diameter mm | 4.5 |
| Size mm | 4.5 x 60 |
| Thread Length mm | 42 |
| Shank Type | Helix |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Pack Dimensions L x W x H mm | 190 x 136 x 130 |
| Pack Weight kg | 3.78 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 144 |
| CE Standard Web | BS EN 14592:2008 |
| Offers | Sale |
| Product Code | 60TDECKIND |
| SKU Barcode | 5056110874593 |
| Size imp | 9 x 2 1/2 |
| Thread Dia mm | 4.5 |
| Inner Thread Dia mm | 2.7 |
| Head Dia mm | 8.76 |
Attribute Group 1
| Brand | TIMCO |

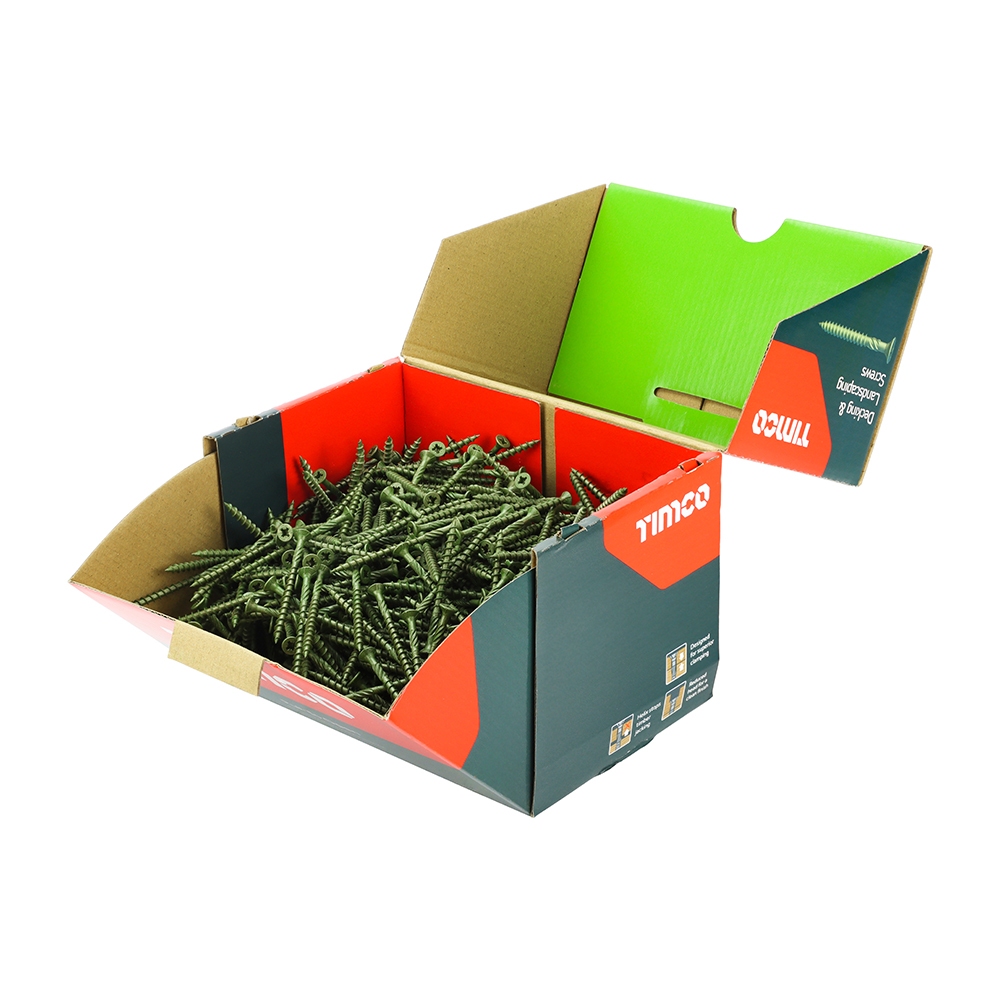

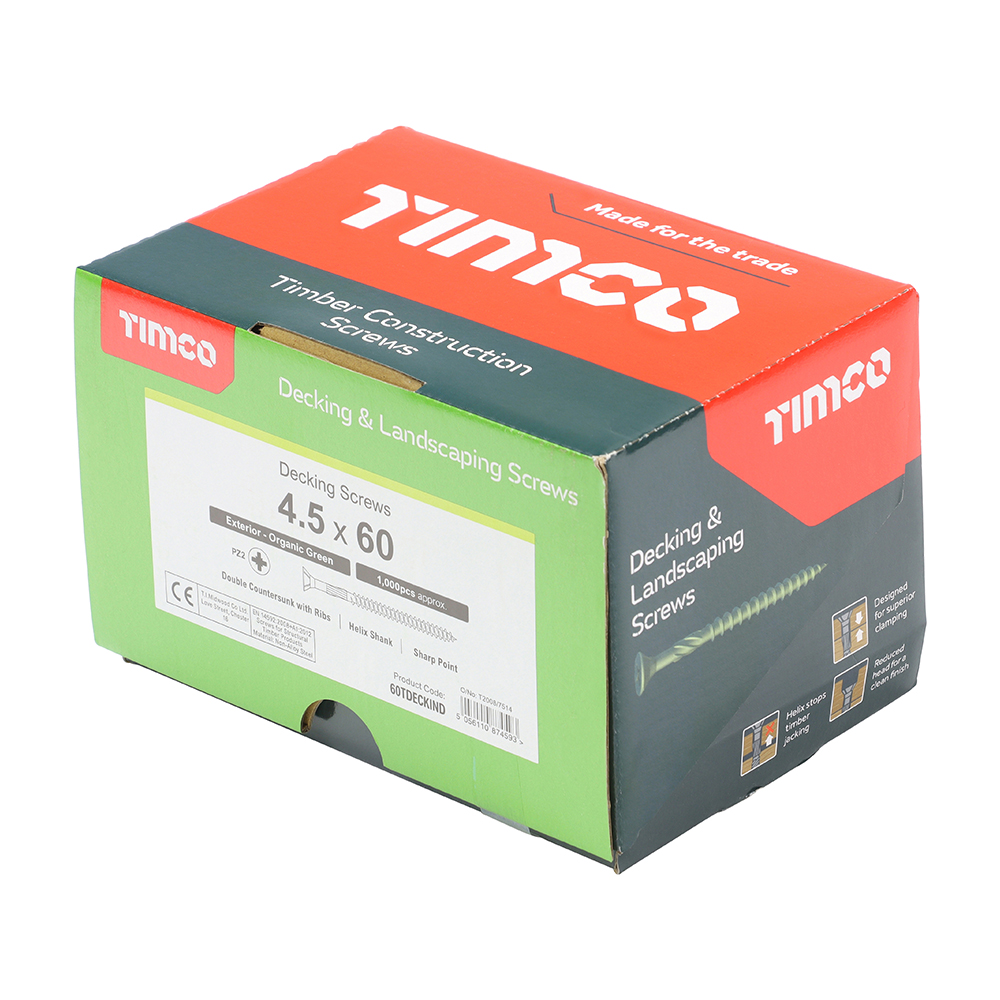

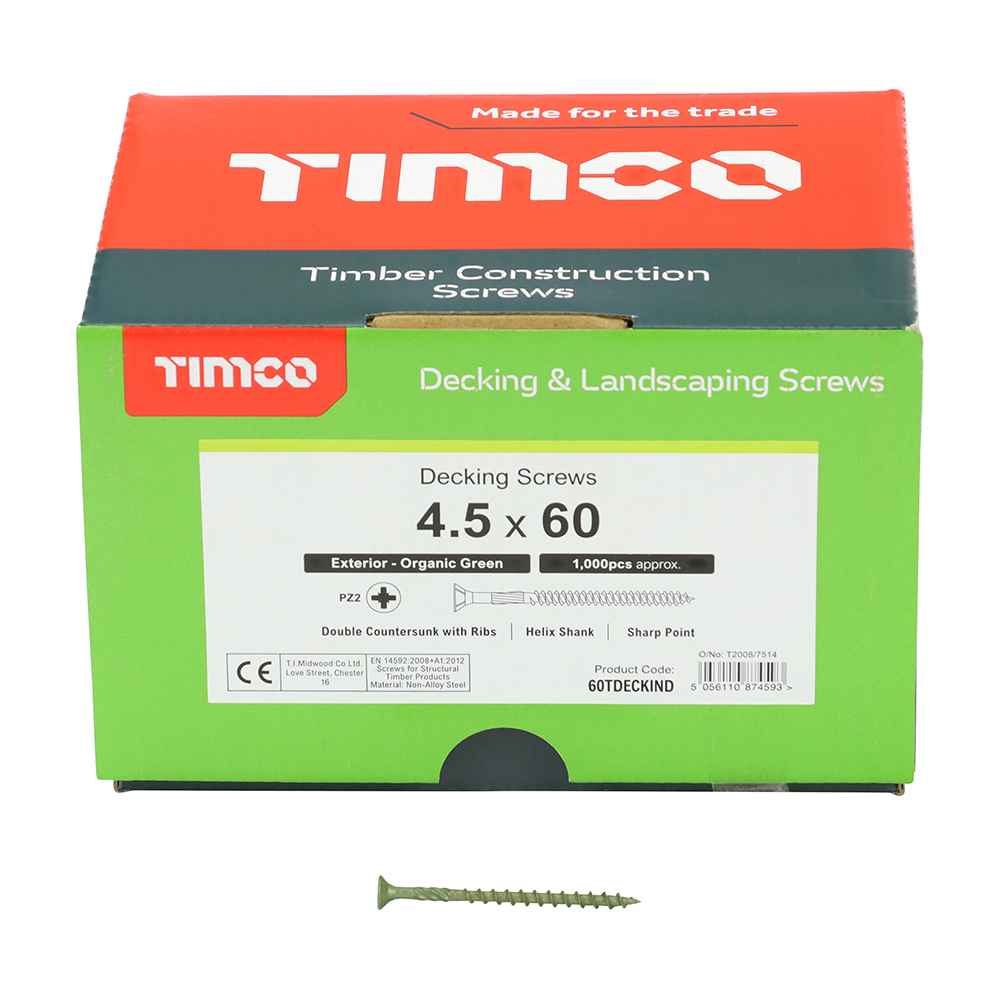

TIMCO Decking Industry Pack
4.5 x 60
- Product Code: 60TDECKIND
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5056110874593
