Product Information

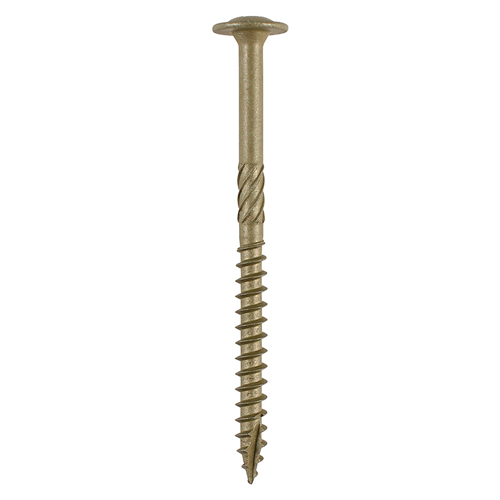

Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.
  • Wafer head countersunk and TX30 recess
  • Long lasting withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
  • Helix shank for removing debris and to improve clamping
  • 50° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash point to reduce torque and the risk of timber splitting at low edge distance
  • 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specification
Length mm 95
Diameter mm 6.7
Size mm 6.7 x 95
Thread Length mm 52
Colour Olive Green
Finish Exterior (Green Organic)
Head Type Wafer
Lubrication Wax
Material Carbon Steel
Point Type 25° Sharp with Single Slash
Recess Type TX Drive
Shank Type Helix
Thread Coverage Partially Threaded
Thread Type 50° Single Deep
Corrosion Rating 3 - Urban & industrial areas with a low salt atmosphere
Driver Bit Size TX30
Included Items TX30 S2 Bit (Qty 1)
Substrates Hardwood, Softwood
Pack Dimensions L x W x H mm 15 x 90 x 198
Pack Weight kg 0.12
Carton Qty Packs 10
Pallet Qty Packs N/A
CE Standard Web BS EN 14592:2008
Product Code 95INDEXWP
SKU Barcode 5055331828392
Thread Dia mm 6.7
Inner Thread Dia mm 4.4
Head Dia mm 16.08
Fixed Washer Dia mm 12
Attribute Group 1
Brand TIMCO

Timber Screws - TX - Wafer - Exterior - Green

6.7 x 95

  • Product Code: 95INDEXWP
  • Pack Type: TIMpac
  • Pack Quantity: 6
  • Barcode: 5055331828392
