Product Information
Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.
- 8mm hex head countersunk with a fixed washer
- Long lasting plating withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
- Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
- Helix shank for removing debris and to improve clamping
- 50° deep single thread to provide a secure fixing with high pull-out resistance
- Single slash point to reduce torque and the risk of timber splitting at low edge distance
- 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specification
| Length mm | 200 |
| Diameter mm | 6.7 |
| Size mm | 6.7 x 200 |
| Socket Size mm | 8 |
| Thread Length mm | 52 |
| Lubrication | Wax |
| Shank Type | Helix |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Pack Dimensions L x W x H mm | 262 x 146 x 47 |
| Pack Weight kg | 0.676 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 600 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 200INDEXTB |
| SKU Barcode | 5055331820631 |
| Thread Dia mm | 6.7 |
| Inner Thread Dia mm | 4.4 |
| Head Dia mm | 16.08 |
| Fixed Washer Dia mm | 12 |
Product Specifications
| Colour | Olive Green |
| Finish | Exterior (Green Organic) |
| Head Type | Hex |
| Material | Carbon Steel |
| Point Type | Single Slash |
| Recess Type | External Hex |
| Thread Coverage | Partially Threaded |
| Thread Type | 50° Single Deep |
| Substrates | Hardwood, Softwood |
Attribute Group 1
| Brand | TIMCO |

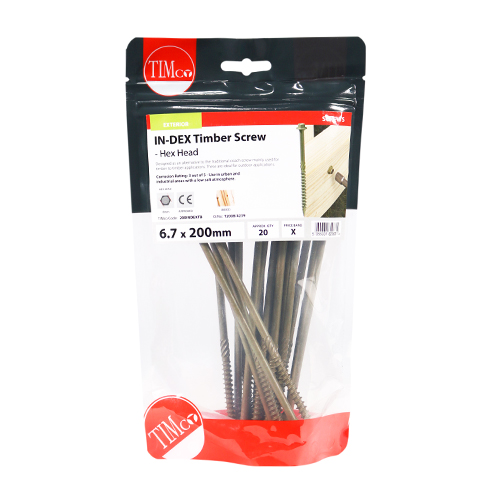

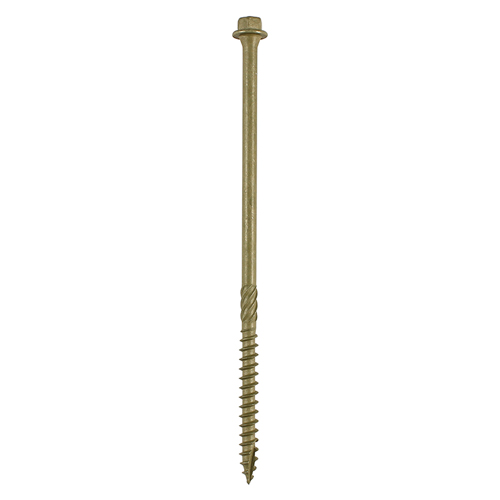

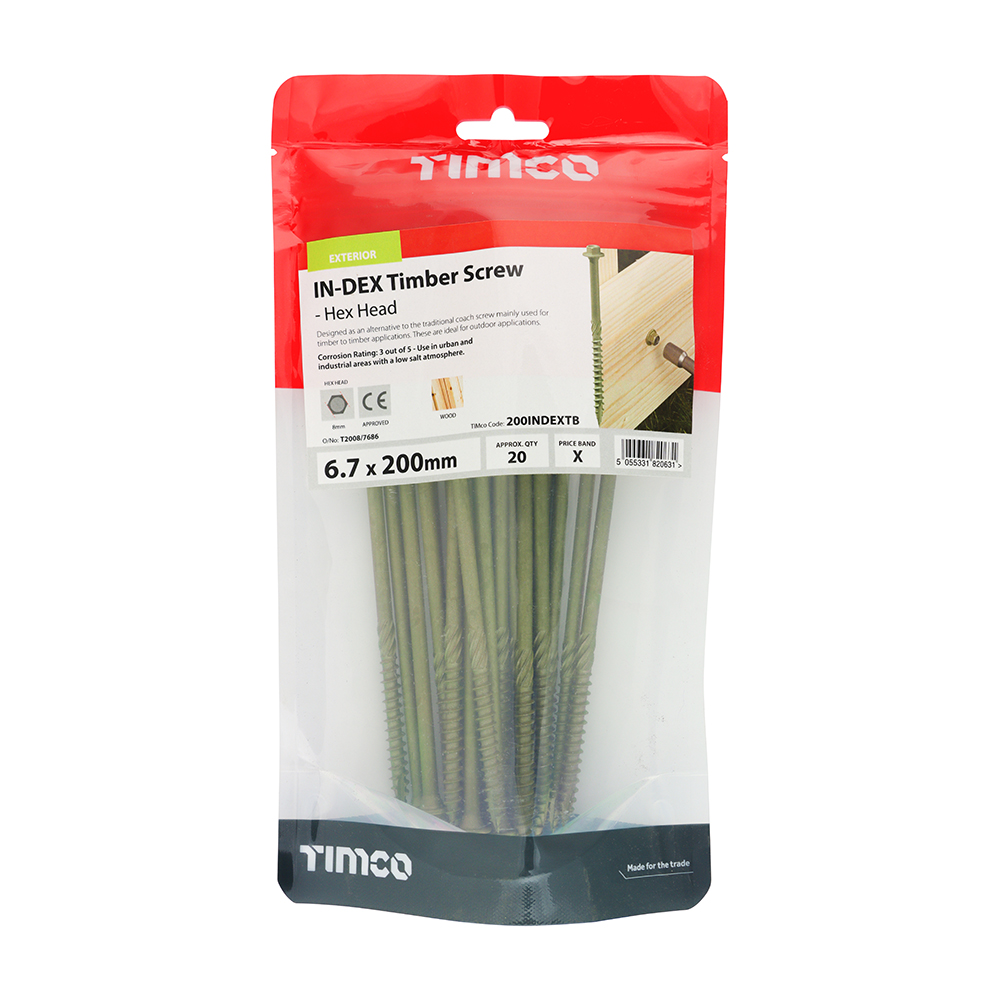

Timber Screws - Hex Head - Exterior - Green
6.7 x 200
- Product Code: 200INDEXTB
- Pack Type: TIMbag
- Pack Quantity: 20
- Barcode: 5055331820631
