Product Information
The TIMCO Timber Hanger range has been designed as simple solution for various timber to timber connections such as joists and stairwell trimming. They have increased leg lengths so that all widths can take up to a 225mm deep joist.
Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Conforms to Eurocode 5 and service class 3
Documents
Technical Specifications
Product Specification
| Bearing mm | 50 |
| Joist Size W x H mm | 76 x 100 to 225 |
| Leg Length mm | 300 |
| Thickness mm | 1 |
| Width mm | 76 |
| Type | Standard |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Safe Working Load Long Term kN | 6.43 |
| Safe Working Load Medium Term kN | 7.35 |
| Safe Working Load Short Term kN | 7.72 |
| Pack Dimensions L x W x H mm | 75 x 76 x 300 |
| Pack Weight kg | 0.23 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | 480 |
| Eurocode | 5 |
| Service Class | 3 |
| Product Code | 76THS |
| SKU Barcode | 5022456321947 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
| Approval | BS 5268 |
Attribute Group 1
| Brand | TIMCO |

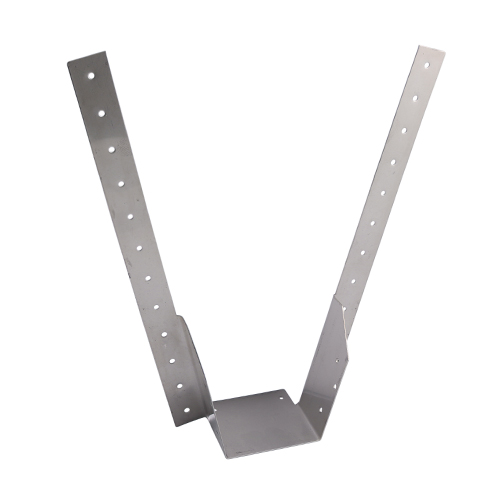

Timber Hangers - Standard - A2 Stainless Steel
76 x 100 to 225
- Product Code: 76THS
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456321947
