Product Information
The TIMCO Timber Hanger range has been designed to give a quick and simple solution for various timber to timber connections such as joists and stairwell trimming. The superior design allows the use of fewer nails for faster installation. All widths can take up to a 220mm deep joist. Manufactured from Pre-Galvanised Steel to give a high level of corrosion resistance.
- Conforms to Eurocode 5 and service class 2
Documents
Technical Specifications
Product Specification
| Bearing mm | 60 |
| Joist Size W x H mm | 63 x 125 to 220 |
| Leg Length mm | 297 |
| Thickness mm | 0.8 |
| Width mm | 63 |
| Type | No Tag |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Safe Working Load Long Term kN | 6 |
| Safe Working Load Medium Term kN | 6.86 |
| Safe Working Load Short Term kN | 7.21 |
| Pack Dimensions L x W x H mm | 60 x 63 x 297 |
| Pack Weight kg | 0.2 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | N/A |
| Eurocode | 5 |
| Service Class | 2 |
| Product Code | 63TH |
| SKU Barcode | 5022456315175 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
| Approval | BS 5268 |
Attribute Group 1
| Brand | TIMCO |

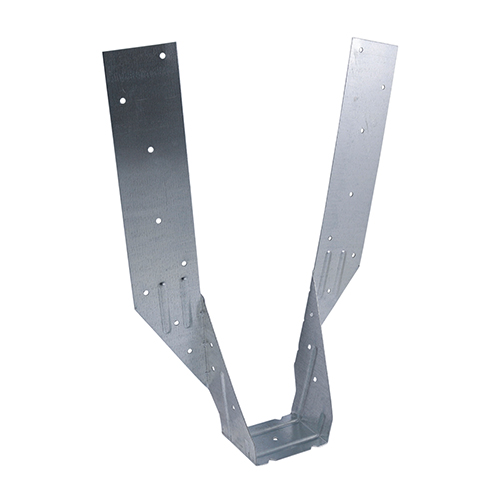

Timber Hangers - No Tag - Galvanised
63 x 125 to 220
- Product Code: 63TH
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456315175
