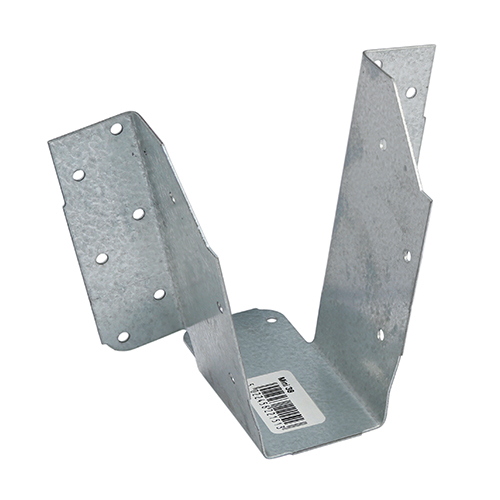

Product Image 1
Product Information
Designed to give a small and economic light weight timber to timber connection such as loft hatches and decking. Timber to timber joist hangers are suitable for light duty applications such as ceiling joists, decking and trimmers. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. NOTE: Tag on base of the hanger helps avoid rotation.
  • Conforms to Eurocode 5 and service class 2
Documents
Brochure Page
Technical Specifications
Product Specification
Bearing mm 50
Height mm 100
Joist Size W x H mm 38 x 100 to 150
Thickness mm 1
Width mm 38
Type Mini Plus
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Safe Working Load Long Term kN 3.96
Safe Working Load Medium Term kN 4.53
Safe Working Load Short Term kN 4.75
Pack Dimensions L x W x H mm 50 x 38 x 100
Pack Weight kg 0.12
Carton Qty Packs 20
Pallet Qty Packs N/A
Eurocode 5
Service Class 2
Product Code 38THMP
SKU Barcode 5022456221513
Product Specifications
Finish Galvanised
Material Carbon Steel
Approval BS 5268
Attribute Group 1
Brand TIMCO

Timber Hangers - Mini Plus - Galvanised

38 x 100 to 150

  • Product Code: 38THMP
  • Pack Type: Unit
  • Pack Quantity: 1
  • Barcode: 5022456221513
