Product Information
Designed to give a small and economic light weight timber to timber connection such as loft hatches and decking. Timber to timber joist hangers are suitable for light duty applications such as ceiling joists, decking and trimmers. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. NOTE: Tag on base of the hanger helps avoid rotation.
- Conforms to Eurocode 5 and service class 2
Documents
Technical Specifications
Product Specification
| Bearing mm | 50 |
| Height mm | 97 |
| Joist Size W x H mm | 44 x 100 to 150 |
| Thickness mm | 1 |
| Width mm | 44 |
| Type | Mini Plus |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Safe Working Load Long Term kN | 3.96 |
| Safe Working Load Medium Term kN | 4.53 |
| Safe Working Load Short Term kN | 4.75 |
| Pack Dimensions L x W x H mm | 50 x 44 x 97 |
| Pack Weight kg | 0.13 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | N/A |
| Eurocode | 5 |
| Service Class | 2 |
| Product Code | 44THMP |
| SKU Barcode | 5022456315625 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
| Approval | BS 5268 |
Attribute Group 1
| Brand | TIMCO |

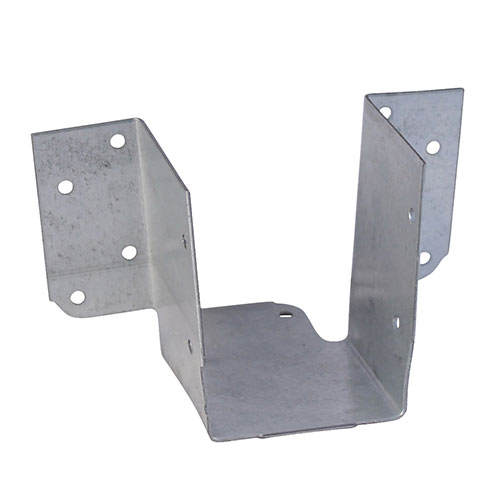

Timber Hangers - Mini Plus - Galvanised
44 x 100 to 150
- Product Code: 44THMP
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456315625
