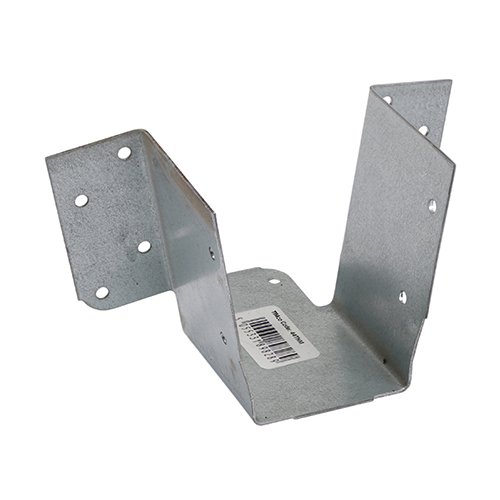

Product Image 1
Product Information
Designed to give a small and economic light weight timber to timber connection such as loft hatches and decking. Timber to timber joist hangers are suitable for light duty applications such as ceiling joists, decking and trimmers. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. NOTE: Tag on base of the hanger helps avoid rotation.
  • Conforms to Eurocode 5 and service class 2
Documents
Brochure Page
Technical Specifications
Product Specification
Bearing mm 50
Height mm 68
Joist Size W x H mm 44 x 75 to 100
Thickness mm 1
Width mm 44
Finish Galvanised
Material Carbon Steel
Type Mini
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Safe Working Load Long Term kN 3.47
Safe Working Load Medium Term kN 3.97
Safe Working Load Short Term kN 4.17
Pack Dimensions L x W x H mm 50 x 44 x 68
Pack Weight kg 0.1
Carton Qty Packs 20
Pallet Qty Packs N/A
Approval BS 5268
Eurocode 5
Service Class 2
Product Code 44THM
SKU Barcode 5022456315618
Attribute Group 1
Brand TIMCO

Timber Hangers - Mini - Galvanised

44 x 75 to 100

  • Product Code: 44THM
  • Pack Type: Unit
  • Pack Quantity: 1
  • Barcode: 5022456315618
