Product Information
Designed to give a small and economic light weight timber to timber connection such as loft hatches and decking. Timber to timber joist hangers are suitable for light duty applications such as ceiling joists, decking and trimmers. NOTE: Tag on base of the hanger helps avoid rotation.
Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Conforms to Eurocode 5 and service class 3
Documents
Technical Specifications
Product Specification
| Bearing mm | 50 |
| Height mm | 96 |
| Joist Size W x H mm | 47 x 75 to 100 |
| Thickness mm | 1 |
| Width mm | 47 |
| Type | Mini |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Safe Working Load Long Term kN | 3.96 |
| Safe Working Load Medium Term kN | 4.53 |
| Safe Working Load Short Term kN | 4.75 |
| Pack Dimensions L x W x H mm | 50 x 47 x 96 |
| Pack Weight kg | 0.12 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Eurocode | 5 |
| Service Class | 3 |
| Product Code | 47THMS |
| SKU Barcode | 5022456321916 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
| Approval | BS 5268 |
Attribute Group 1
| Brand | TIMCO |

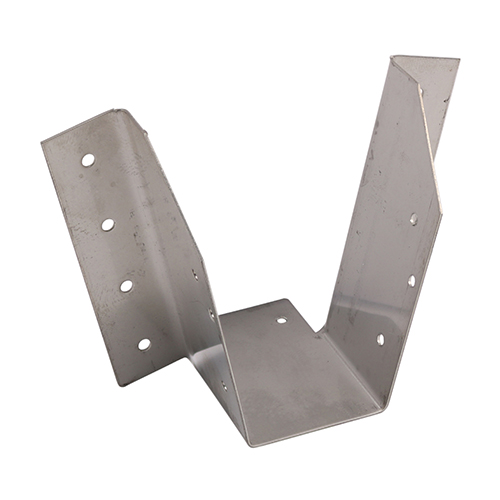

Timber Hangers - Mini - A2 Stainless Steel
47 x 75 to 100
- Product Code: 47THMS
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456321916
