Product Information

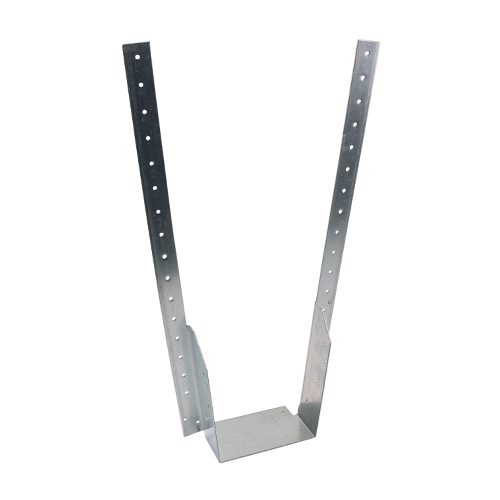

Specifically designed for deeper timber to timber applications. Ideal for loft conversions and “under-slung” floor joist applications where the hanger extends below the supporting beam. They have increase leg lengths so that all widths can take up to a 250mm deep joist. Manufactured from Pre-Galvanised Steel to give a high level of corrosion resistance.
- Conforms to Eurocode 5 and service class 2
Documents
Technical Specifications
Product Specification
| Bearing mm | 50 |
| Joist Size W x H mm | 125 x 150 to 250 |
| Leg Length mm | 450 |
| Thickness mm | 1.2 |
| Width mm | 125 |
| Type | Long Leg |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Safe Working Load Long Term kN | 11.68 |
| Safe Working Load Medium Term kN | 13.35 |
| Safe Working Load Short Term kN | 14.02 |
| Pack Dimensions L x W x H mm | 50 x 125 x 450 |
| Pack Weight kg | 0.5 |
| Carton Qty Packs | 10 |
| Eurocode | 5 |
| Service Class | 2 |
| Product Code | 125450LTH |
| SKU Barcode | 5022456318145 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
| Approval | BS 5268 |
Attribute Group 1
| Brand | TIMCO |
Timber Hangers - Long Leg - Galvanised
125 x 150 to 250
- Product Code: 125450LTH
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456318145
