Product Information
Timber Frame Ties are suitable for tying masonry outer cladding to softwood structural framework of domestic dwellings and industrial / commercial buildings up to 4 storeys and not greater than 15m in height. Supplied with annular ring shank nails. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Complies with a DD140 Type 6 tie
- Meets with the appropriate parts of NHBC standards
- Supplied with annular ring shank nails included
Documents
Technical Specifications
Product Specification
| Bend mm | 75 |
| Length mm | 80 |
| Nail Size mm | 3.35 x 50 |
| Total Length mm | 155 |
| Width mm | 19 |
| Cavity Width mm | 75 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Suitable for Cavities mm | 75 |
| Pack Dimensions L x W x H mm | 536 x 362 x 168 |
| Pack Weight kg | 6.01 |
| CE Standard Web | BS EN 845-1:2013+A1:2016 |
| Product Code | 269846 |
| SKU Barcode | 5022456316080 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
| Substrates | Softwood, Masonry |
Attribute Group 1
| Brand | TIMCO |

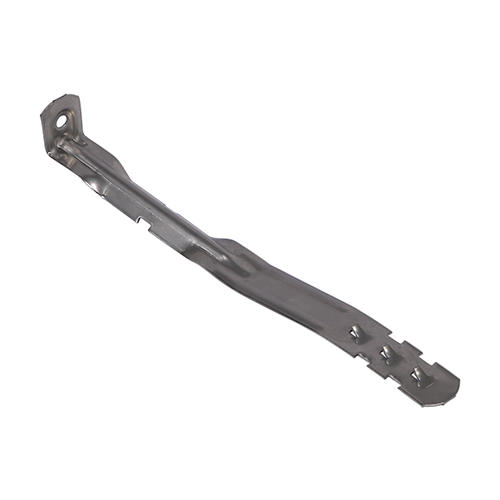

Timber Frame Ties - A2 Stainless Steel
75mm
- Product Code: 269846
- Pack Type: Box
- Pack Quantity: 250
- Barcode: 5022456316080
