Product Information
Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.
  • Wafer head countersunk and TX40 recess
  • Long lasting plating withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
  • Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
  • Helix shank for removing debris and to improve clamping
  • 50° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash point to reduce torque and the risk of timber splitting at low edge distance
  • 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specification
Length mm 300
Diameter mm 8.0
Size mm 8.0 x 300
Thread Length mm 70
Lubrication Wax
Shank Type Helix
Corrosion Rating 3 - Urban & industrial areas with a low salt atmosphere
Pack Dimensions L x W x H mm 324 x 94 x 62
Pack Weight kg 1.78
Carton Qty Packs 9
Pallet Qty Packs 216
CE Standard Web BS EN 14592:2008
Product Code 300INW
SKU Barcode 5055331860958
Thread Dia mm 8
Inner Thread Dia mm 5.6
Head Dia mm 20.84
Fixed Washer Dia mm 21
Product Specifications
Colour Olive Green
Finish Exterior (Green Organic)
Head Type Wafer
Material Carbon Steel
Point Type 25° Sharp with Single Slash
Recess Type TX Drive
Thread Coverage Partially Threaded
Thread Type 50° Single Deep

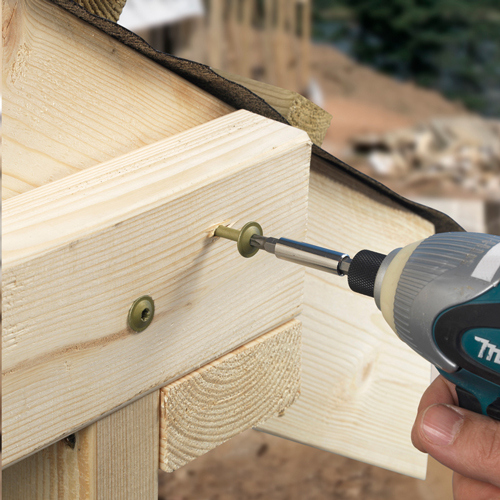

Application Framing, Landscaping, Decking, Fencing, Stairs, Roofing, Gazebos, Pergolas, Sleepers
Driver Bit Size TX40
Included Items TX40 S2 Bit (Qty 1)
Substrates Hardwood, Softwood
Attribute Group 1
Brand TIMCO

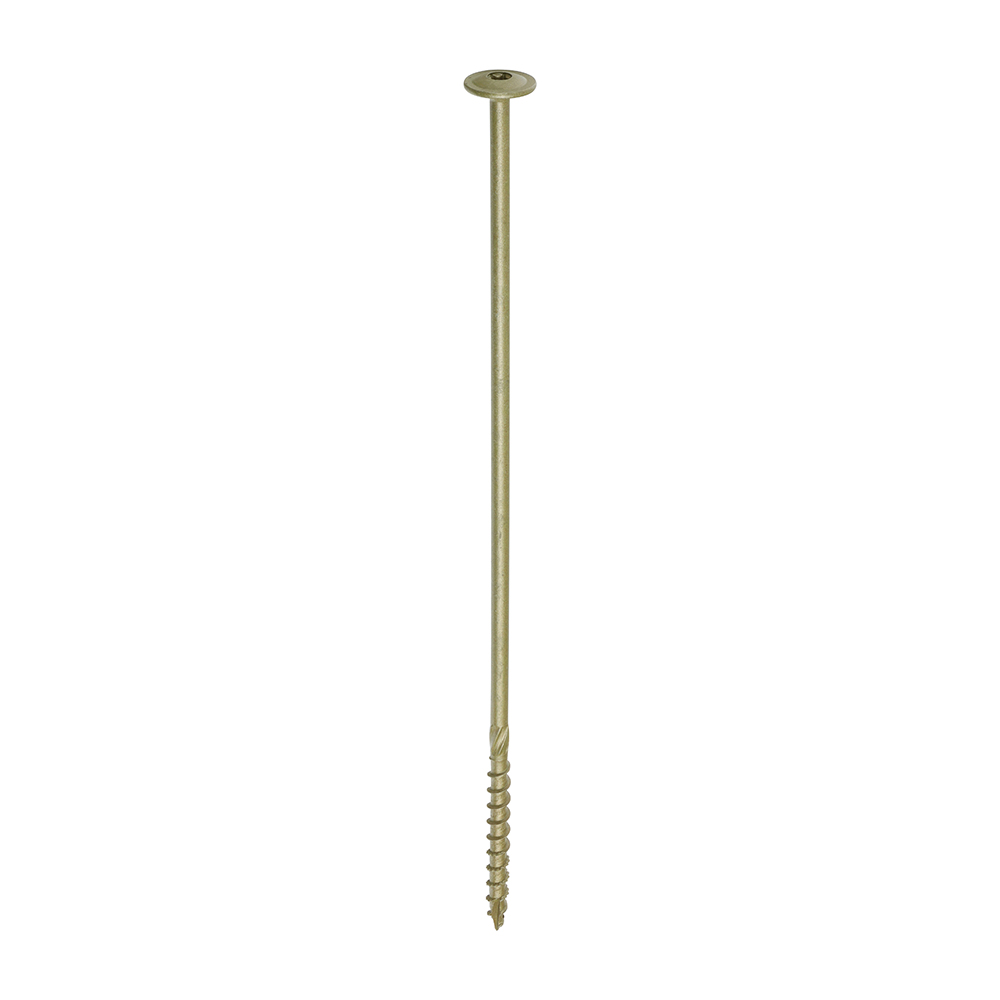

Timber Frame Construction & Landscaping Screws - Wafer - Exterior - Green Organic

8.0 x 300

  • Product Code: 300INW

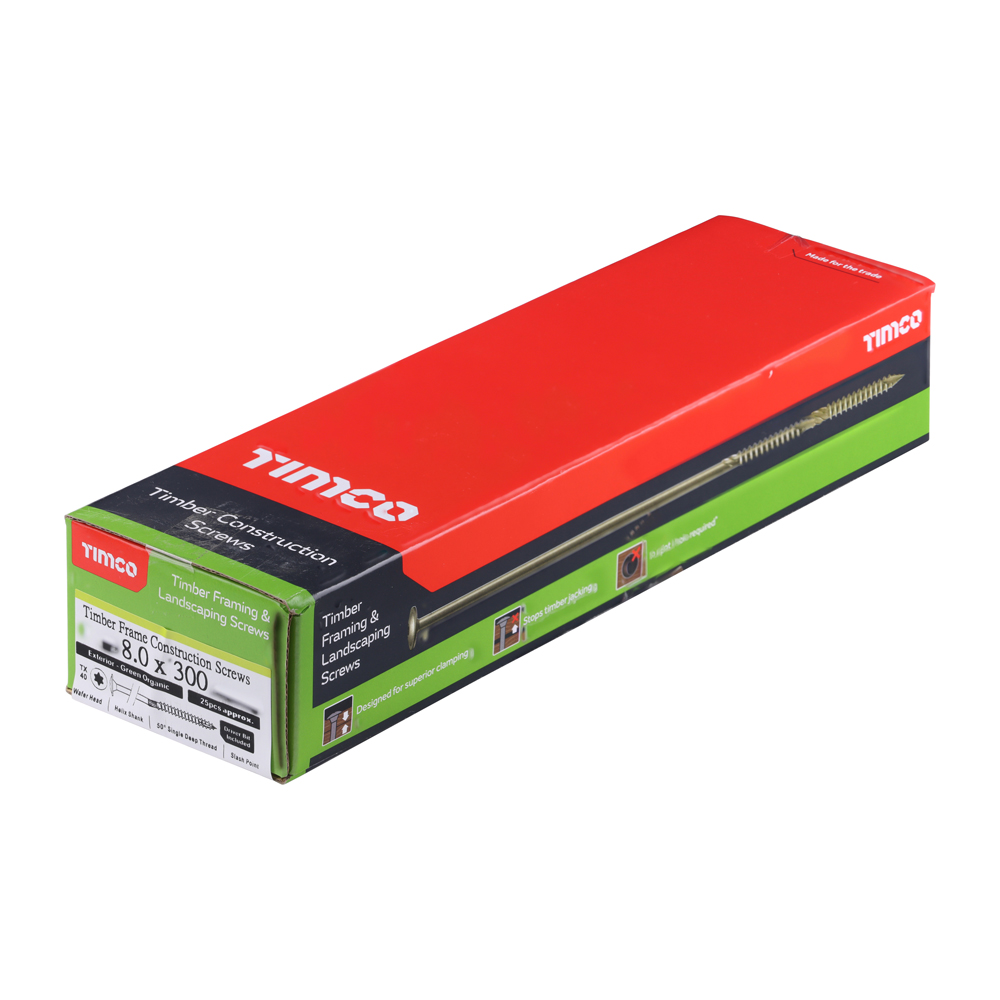

  • Pack Type: Box
  • Pack Quantity: 25
  • Barcode: 5055331860958
