Product Information

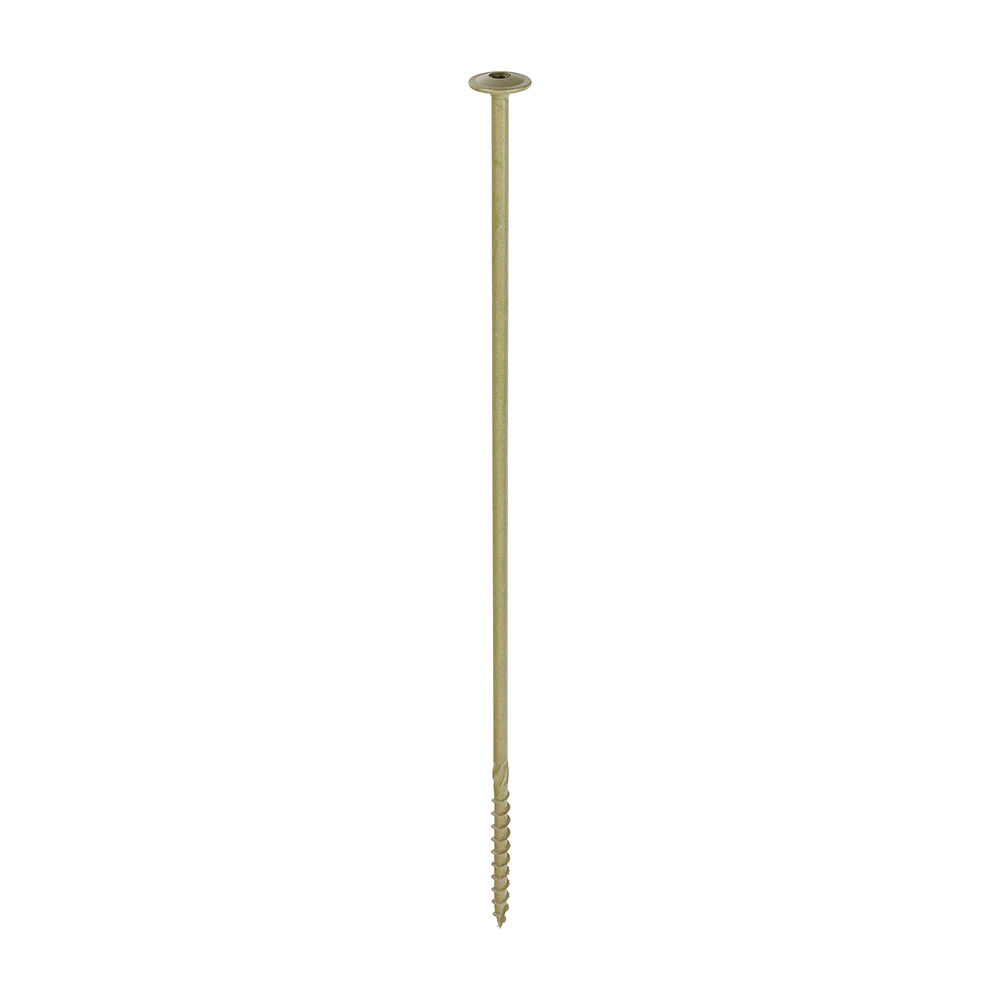

Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.
  • Wafer head countersunk and TX40 recess
  • Long lasting plating withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
  • Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
  • Helix shank for removing debris and to improve clamping
  • 50° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash point to reduce torque and the risk of timber splitting at low edge distance
  • 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specification
Length mm 350
Diameter mm 8.0
Size mm 8.0 x 350
Thread Length mm 70
Colour Olive Green
Finish Exterior (Green Organic)
Head Type Wafer
Lubrication Wax
Material Carbon Steel
Point Type 25° Sharp with Single Slash
Recess Type TX Drive
Shank Type Helix
Thread Coverage Partially Threaded
Thread Type 50° Single Deep

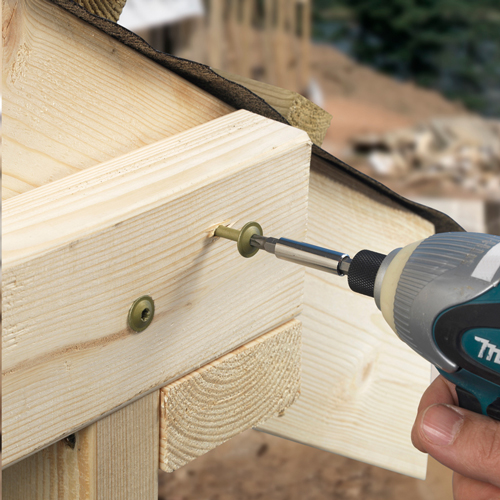

Application Framing, Landscaping, Decking, Fencing, Stairs, Roofing, Gazebos, Pergolas, Sleepers
Corrosion Rating 3 - Urban & industrial areas with a low salt atmosphere
Driver Bit Size TX40
Included Items TX40 S2 Bit (Qty 1)
Substrates Hardwood, Softwood
Pack Dimensions L x W x H mm 424 x 94 x 62
Pack Weight kg 2.08
Carton Qty Packs 9
Pallet Qty Packs 270
CE Standard Web BS EN 14592:2008
Product Code 350INW
SKU Barcode 5055331861924
Thread Dia mm 8
Inner Thread Dia mm 5.6
Head Dia mm 20.84
Fixed Washer Dia mm 21
Attribute Group 1
Brand TIMCO

Timber Frame Construction & Landscaping Screws - Wafer - Exterior - Green Organic

8.0 x 350

  • Product Code: 350INW

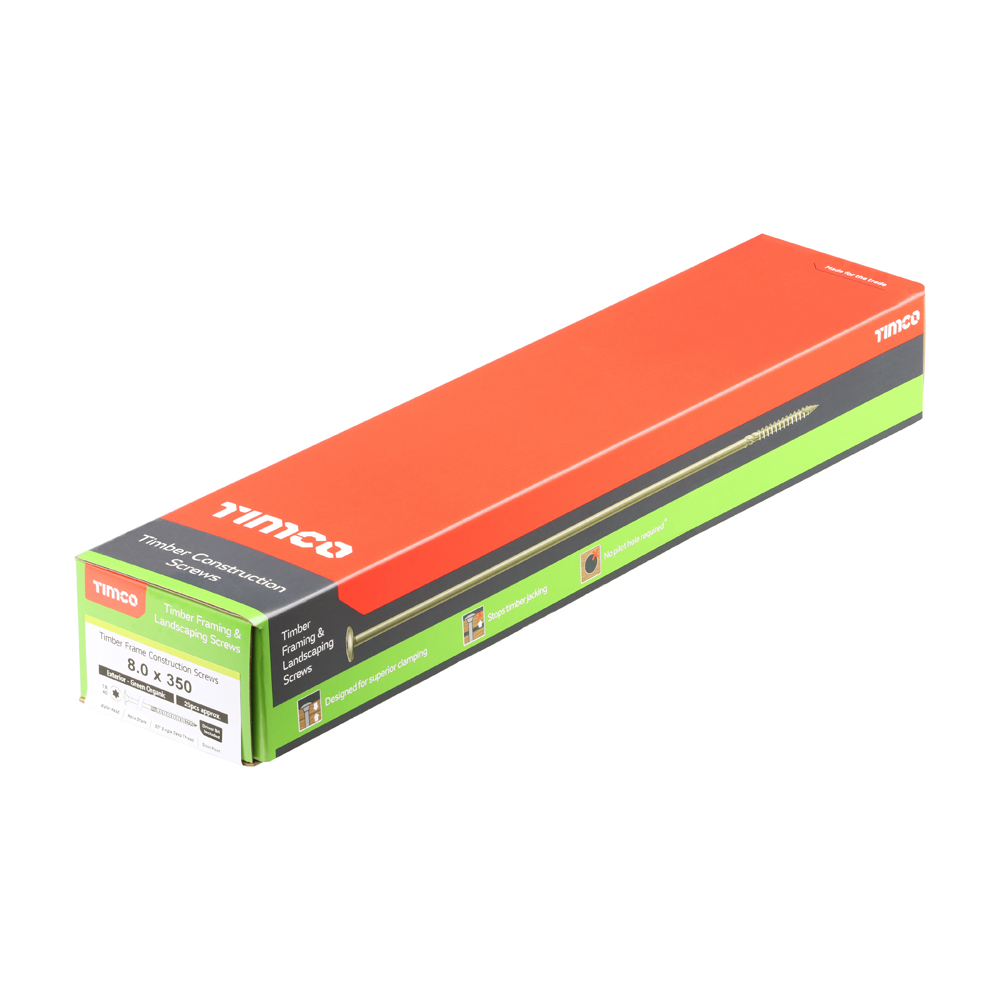

  • Pack Type: Box
  • Pack Quantity: 25
  • Barcode: 5055331861924
