Product Information
Timber Frame Screw WAFER Green
- Wafer head countersunk and TX40 recess
- Long lasting plating withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
- Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
- Helix shank for removing debris and to improve clamping
- 50° deep single thread to provide a secure fixing with high pull-out resistance
- Single slash point to reduce torque and the risk of timber splitting at low edge distance
- 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specification
| Application | Framing, Landscaping, Decking, Fencing, Stairs, Roofing, Gazebos, Pergolas, Sleepers |
| Colour | Olive Green |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Diameter mm | 8.0 |
| Driver Bit Size | TX40 |
| Finish | Exterior (Green Organic) |
| Fixed Washer Dia mm | 21 |
| Head Dia mm | 20.84 |
| CE Standard Web | BS EN 14592:2008 |
| Carton Qty Packs | 8 |
| Head Type | Wafer |
| Included Items | TX40 S2 Bit (Qty 1) |
| Inner Thread Dia mm | 5.6 |
| Length mm | 200 |
| Lubrication | Wax |
| Material | Carbon Steel |
| Pack Dimensions L x W x H mm | 232 x 92 x 94 |
| Pack Weight kg | 2.38 |
| Pallet Qty Packs | 216 |
| Point Type | 25° Sharp with Single Slash |
| Product Code | 200INW |
| Recess Type | TX Drive |
| Screw Holes 6.0mm | WebAttribute |
| Shank Type | Helix |
| Size mm | 8.0 x 200 |
| SKU Barcode | 5055331860934 |
| Substrates | Hardwood; Softwood |
| Thread Coverage | Partially Threaded |
| Thread Dia mm | 8 |
| Thread Length mm | 70 |
| Thread Type | 50° Single Deep |
Attribute Group 1
| Brand | TIMCO |

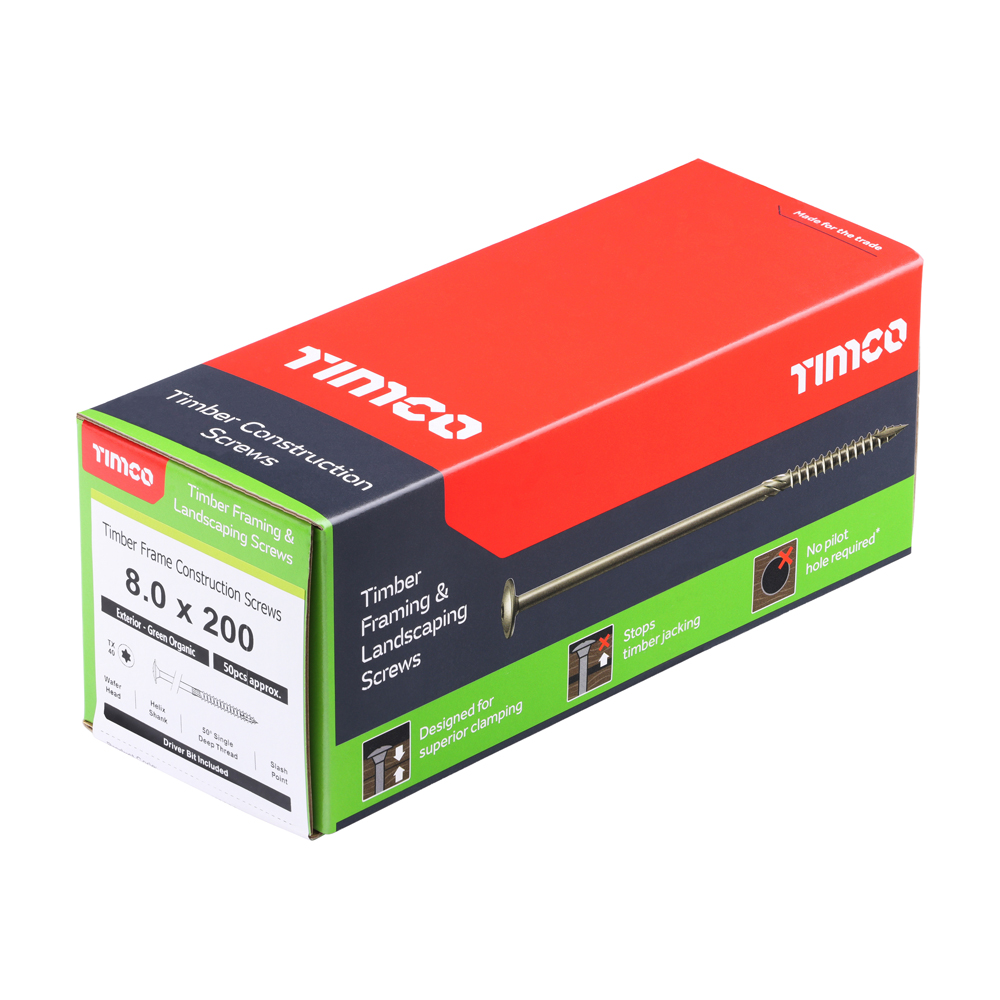

Timber Frame Construction & Landscaping Screws - Wafer - Exterior - Green Organic
8.0 x 200
- Product Code: 200INW
- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5055331860934
