Product Information

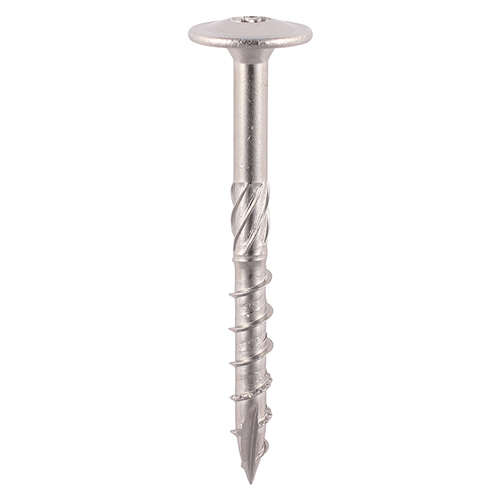

Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
  • Wafer head countersunk and TX40 recess
  • Stainless Steel offers superior corrosion resistance, perfect for highly corrosive environments
  • Helix shank for removing debris and to improve clamping
  • Single slash point to reduce torque and the risk of timber splitting at low edge distance
  • 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specification
Length mm 100
Diameter mm 8.0
Size mm 8.0 x 100
Thread Length mm 70
Colour Silver
Head Type Wafer
Material Austenitic Stainless Steel (A2-304)
Point Type 25° Sharp with Single Slash
Recess Type TX Drive
Shank Type Helix
Thread Coverage Partially Threaded
Thread Type Serrated
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Driver Bit Size TX40
Included Items TX40 S2 Bit (Qty 1)
Substrates Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar)
Pack Dimensions L x W x H mm 58 x 58 x 138
Pack Weight kg 0.58
Carton Qty Packs 40
Pallet Qty Packs 960
CE Standard Web BS EN 14592:2008
Offers Sale
Product Code 100INDEXWSST
SKU Barcode 5056110836287
Thread Dia mm 8
Inner Thread Dia mm 5.6
Head Dia mm 20.84
Fixed Washer Dia mm 21
Attribute Group 1
Brand TIMCO

Timber Frame Construction & Landscaping Screws - Wafer - A2 Stainless Steel

8.0 x 100

  • Product Code: 100INDEXWSST
  • Pack Type: Tube
  • Pack Quantity: 20
  • Barcode: 5056110836287
