Product Information

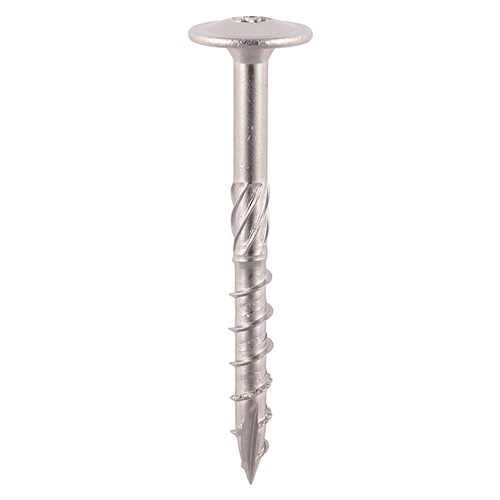

Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Wafer head countersunk and TX40 recess
- Stainless Steel offers superior corrosion resistance, perfect for highly corrosive environments
- Helix shank for removing debris and to improve clamping
- Single slash point to reduce torque and the risk of timber splitting at low edge distance
- 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specification
| Length mm | 80 |
| Diameter mm | 8.0 |
| Size mm | 8.0 x 80 |
| Thread Length mm | 40 |
| Shank Type | Helix |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 58 x 58 x 138 |
| Pack Weight kg | 0.5 |
| Carton Qty Packs | 40 |
| Pallet Qty Packs | 960 |
| CE Standard Web | BS EN 14592:2008 |
| Offers | Sale |
| Product Code | 80INDEXWSST |
| SKU Barcode | 5056110836270 |
| Thread Dia mm | 8 |
| Inner Thread Dia mm | 5.6 |
| Head Dia mm | 20.84 |
| Fixed Washer Dia mm | 21 |
Product Specifications
| Colour | Silver |
| Head Type | Wafer |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | 25° Sharp with Single Slash |
| Recess Type | TX Drive |
| Thread Coverage | Partially Threaded |
| Thread Type | Serrated |
| Driver Bit Size | TX40 |
| Included Items | TX40 S2 Bit (Qty 1) |
| Substrates | Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar) |
Attribute Group 1
| Brand | TIMCO |
Timber Frame Construction & Landscaping Screws - Wafer - A2 Stainless Steel
8.0 x 80
- Product Code: 80INDEXWSST

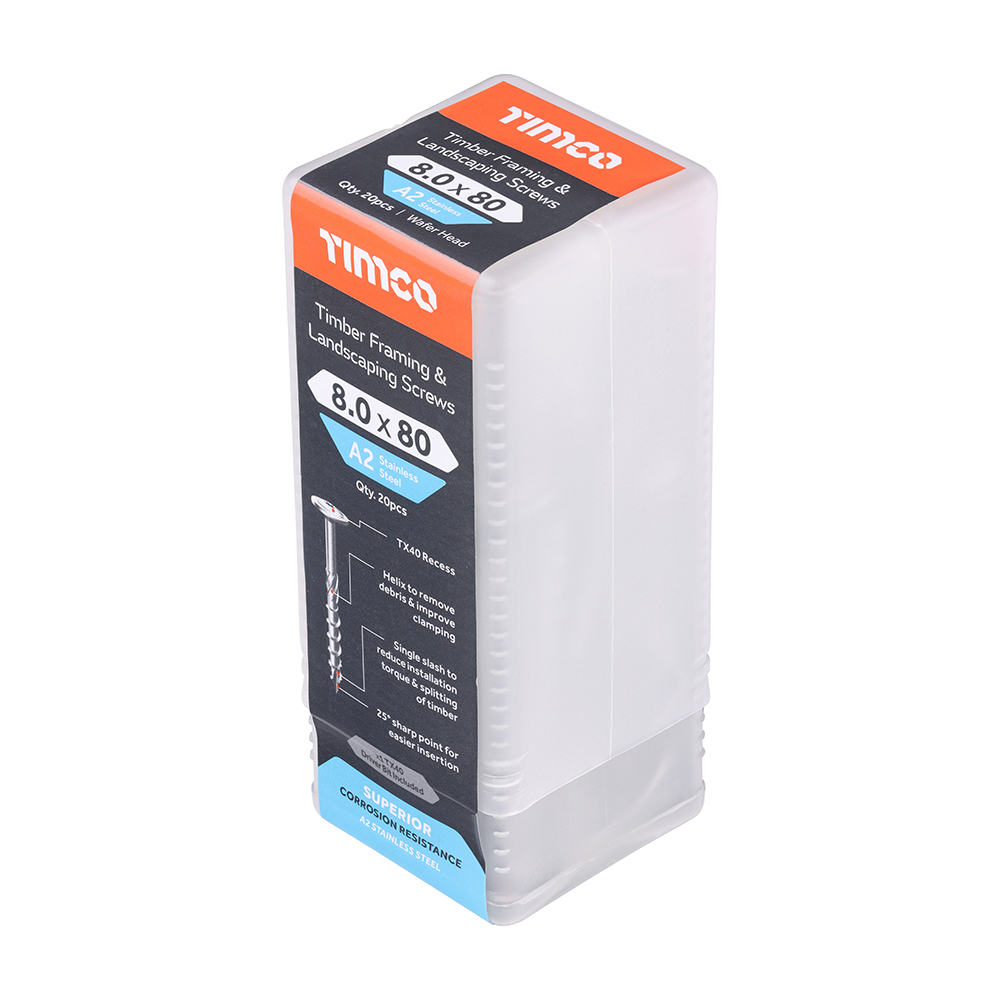

- Pack Type: Tube
- Pack Quantity: 20
- Barcode: 5056110836270
