Product Information
Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.

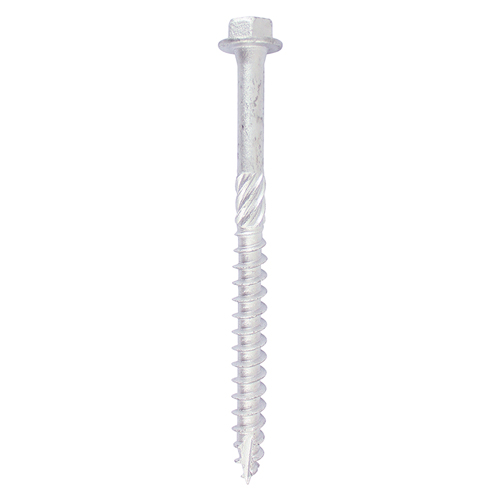

- Hex head countersunk with a fixed washer
- Silver organic coating to withstand up to 1,000 hours of salt spray resistance
- Helix shank for removing debris and to improve clamping
- 50° deep single thread to provide a secure fixing with high pull-out resistance
- Single slash point to reduce torque and the risk of timber splitting at low edge distance
- 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specification
| Length mm | 80 |
| Diameter mm | 6.0 |
| Size mm | 6.0 x 80 |
| Socket Size mm | 8 |
| Thread Length mm | 68 |
| Shank Type | Helix |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Pack Dimensions L x W x H mm | 20 x 130 x 200 |
| Pack Weight kg | 0.18 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 1200 |
| CE Standard Web | BS EN 14592:2008 |
| Offers | Sale |
| Product Code | 680INI |
| SKU Barcode | 5055893387290 |
| Thread Dia mm | 6 |
| Inner Thread Dia mm | 4.41 |
| Fixed Washer Dia mm | 12 |
Product Specifications
| Colour | Silver |
| Finish | Exterior (Silver Organic) |
| Head Type | Hex Flange |
| Material | Carbon Steel |
| Point Type | 25° Sharp with Single Slash |
| Recess Type | External Hex |
| Thread Coverage | Partially Threaded |
| Thread Type | 50° Single Deep |
| Included Items | Socket Driver (Qty 1) |
Attribute Group 1
| Brand | TIMCO |
Timber Frame Construction & Landscaping Screws - Hex - Exterior - Silver Organic
6.0 x 80
- Product Code: 680INI
- Pack Type: TIMbag
- Pack Quantity: 10
- Barcode: 5055893387290
