Product Information
Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.

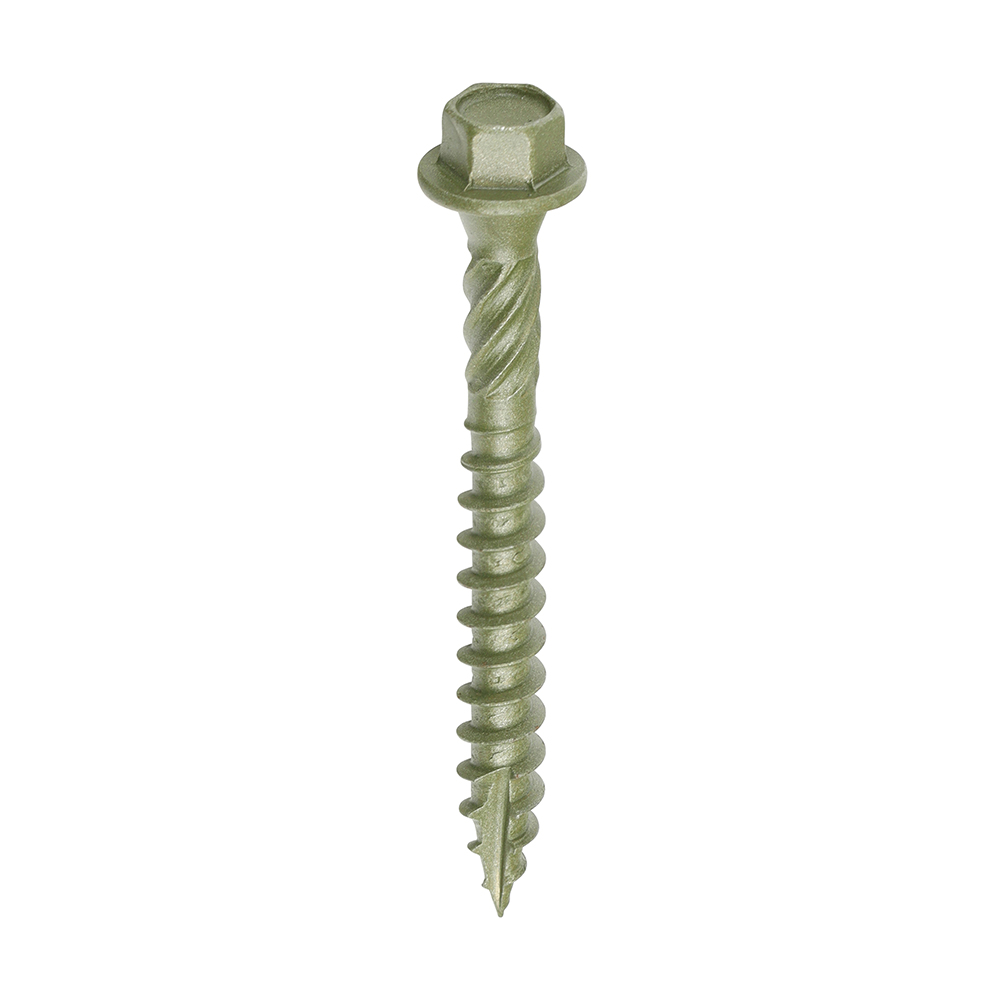

- Hex head countersunk with a fixed washer
- Long lasting plating withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
- Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
- Helix shank for removing debris and to improve clamping
- 50° deep single thread to provide a secure fixing with high pull-out resistance
- Single slash point to reduce torque and the risk of timber splitting at low edge distance
- 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specification
| Length mm | 60 |
| Diameter mm | 6.7 |
| Size mm | 6.7 x 60 |
| Socket Size mm | 8 |
| Thread Length mm | 40 |
| Lubrication | Wax |
| Shank Type | Helix |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Pack Dimensions L x W x H mm | 100 x 92 x 62 |
| Pack Weight kg | 0.58 |
| Carton Qty Packs | 35 |
| Pallet Qty Packs | 840 |
| CE Standard Web | BS EN 14592:2008 |
| Offers | Sale |
| Product Code | 60IN |
| SKU Barcode | 5055331861870 |
| Thread Dia mm | 6.7 |
| Inner Thread Dia mm | 4.4 |
| Head Dia mm | 16.08 |
| Fixed Washer Dia mm | 12 |
Product Specifications
| Colour | Olive Green |
| Finish | Exterior (Green Organic) |
| Head Type | Hex Flange |
| Material | Carbon Steel |
| Point Type | 25° Sharp with Single Slash |
| Recess Type | External Hex |
| Thread Coverage | Partially Threaded |
| Thread Type | 50° Single Deep |

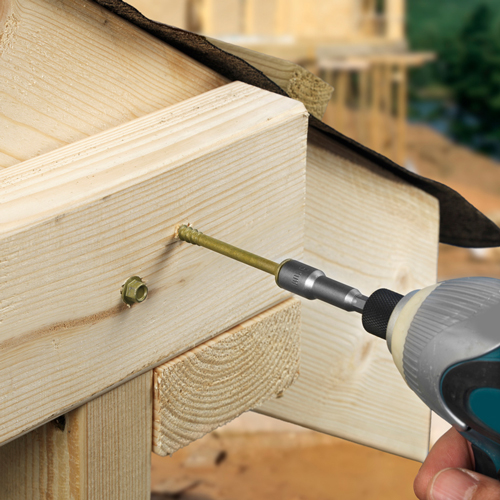

| Application | Framing, Landscaping, Decking, Fencing, Stairs, Roofing, Gazebos, Pergolas, Sleepers |
| Substrates | Hardwood, Softwood |
Attribute Group 1
| Brand | TIMCO |

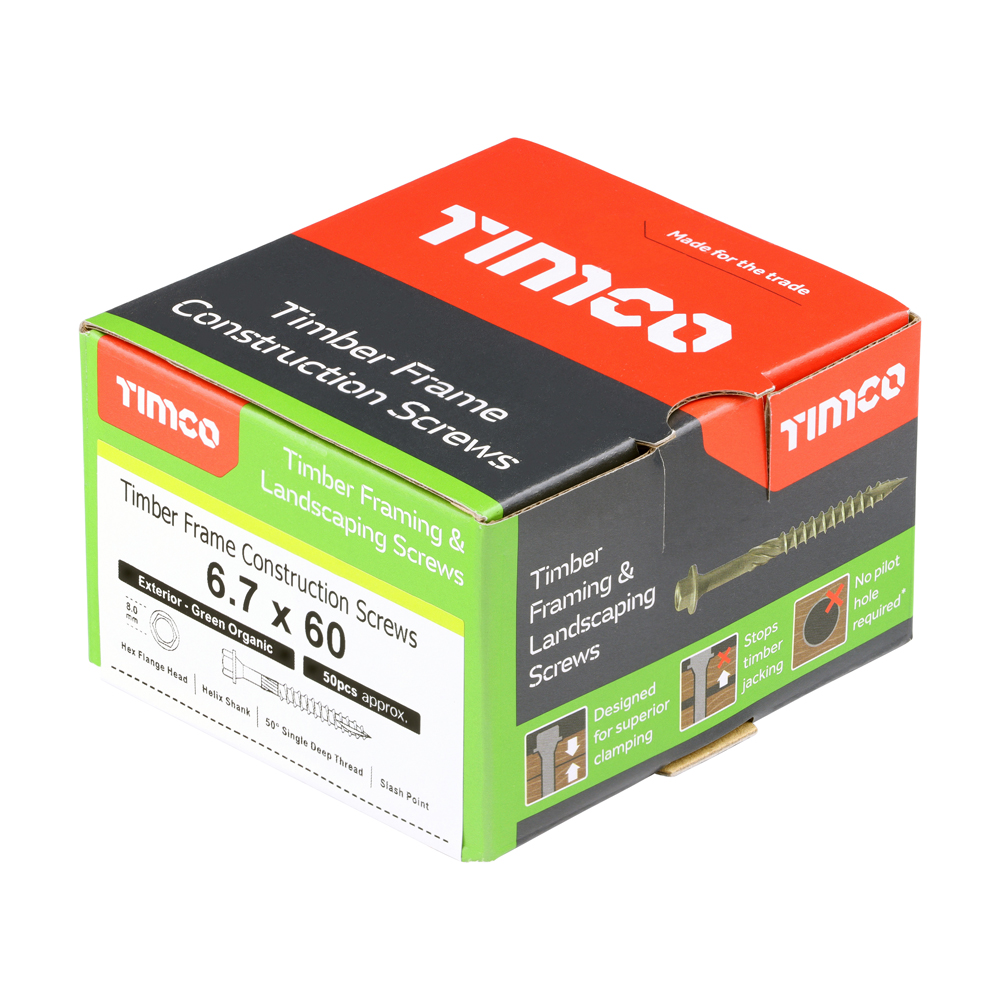

Timber Frame Construction & Landscaping Screws - Hex - Exterior - Green Organic
6.7 x 60
- Product Code: 60IN
- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5055331861870
