Product Information
Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Manufactured from A4 Stainless Steel for ultimate corrosion resistance making it ideal for external applications. Stainless steel must be used where there is corrosive environment and/or where the base material has inherent corrosive characteristics e.g. Green Oak.

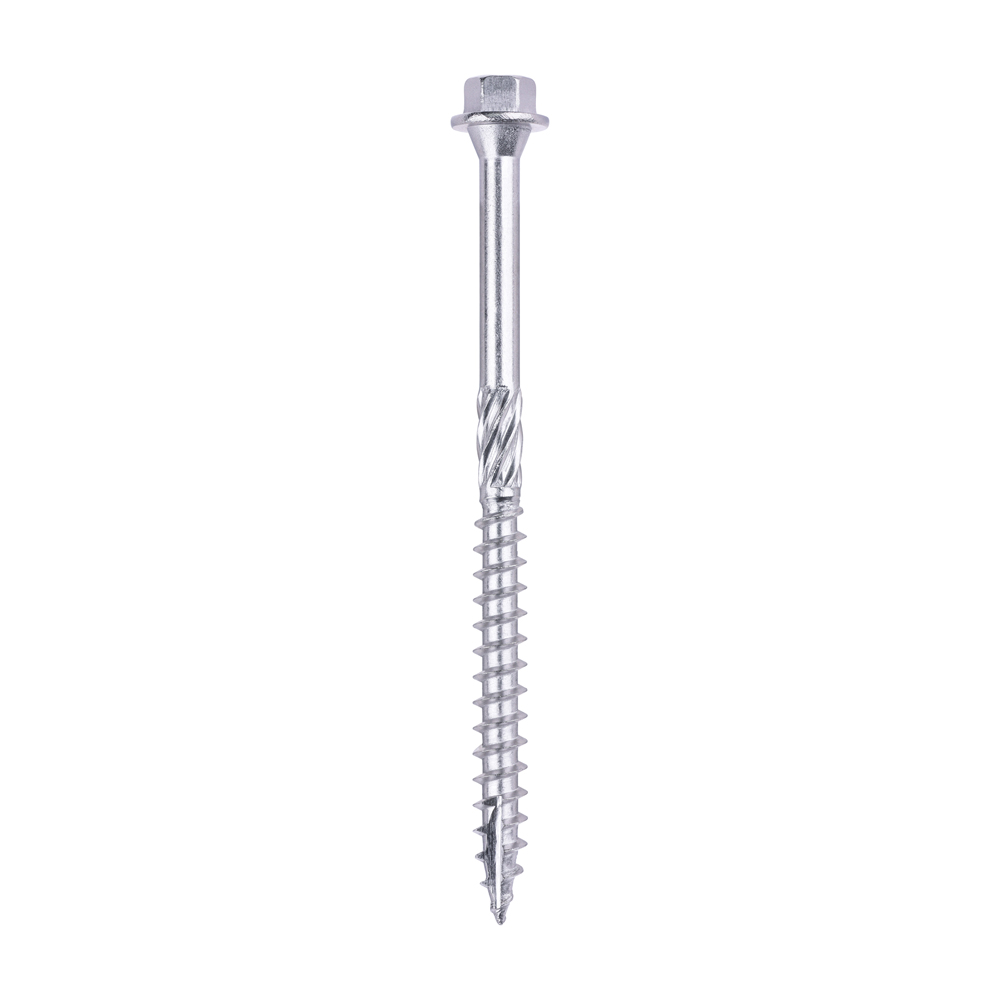

- Hex head countersunk with a fixed washer
- Stainless Steel offers superior corrosion resistance, perfect for highly corrosive environments
- Helix shank for removing debris and to improve clamping
- 50° deep single thread to provide a secure fixing with high pull-out resistance
- Single slash point to reduce torque and the risk of timber splitting at low edge distance
- 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specification
| Length mm | 100 |
| Diameter mm | 6.7 |
| Size mm | 6.7 x 100 |
| Socket Size mm | 8 |
| Thread Length mm | 52 |
| Shank Type | Helix |
| Corrosion Rating | 5 - Industrial & coastal areas with an aggressive salt atmosphere |
| Pack Dimensions L x W x H mm | 137 x 55 x 57 |
| Pack Weight kg | 0.496 |
| Carton Qty Packs | 40 |
| Pallet Qty Packs | 960 |
| CE Standard Web | BS EN 14592:2008 |
| Offers | Sale |
| Product Code | 100INDEXSST |
| SKU Barcode | 5055017575527 |
| Thread Dia mm | 6.7 |
| Inner Thread Dia mm | 4.4 |
| Head Dia mm | 16.08 |
| Fixed Washer Dia mm | 12 |
Product Specifications
| Colour | Silver |
| Head Type | Hex |
| Material | Austenitic Stainless Steel (A4-316) |
| Point Type | 25° Sharp with Single Slash |
| Recess Type | External Hex |
| Thread Coverage | Partially Threaded |
| Thread Type | 50° Single Deep |
| Substrates | Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar) |
Attribute Group 1
| Brand | TIMCO |
Timber Frame Construction & Landscaping Screws - Hex - A4 Stainless Steel
6.7 x 100
- Product Code: 100INDEXSST
- Pack Type: Tube
- Pack Quantity: 25
- Barcode: 5055017575527
