Product Information
Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Manufactured from A4 Stainless Steel for ultimate corrosion resistance making it ideal for external applications. Stainless steel must be used where there is corrosive environment and/or where the base material has inherent corrosive characteristics e.g. Green Oak.
  • Hex head countersunk with a fixed washer
  • Stainless Steel offers superior corrosion resistance, perfect for highly corrosive environments
  • Helix shank for removing debris and to improve clamping
  • 50° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash point to reduce torque and the risk of timber splitting at low edge distance
  • 25° sharp point and single lead for a fast start and improved thread acceptance
Documents
Technical Specifications
Product Specification
Length mm 300
Diameter mm 6.7
Size mm 6.7 x 300
Socket Size mm 8
Thread Length mm 70
Shank Type Helix
Corrosion Rating 5 - Industrial & coastal areas with an aggressive salt atmosphere
Pack Dimensions L x W x H mm 58 x 58 x 138
Pack Weight kg 1.4
Carton Qty Packs 12
Pallet Qty Packs 288
CE Standard Web BS EN 14592:2008
Offers Sale
Product Code 300INDEXSST
SKU Barcode 5056110833040
Thread Dia mm 6.7
Inner Thread Dia mm 4.4
Head Dia mm 16.08
Fixed Washer Dia mm 12
Product Specifications
Colour Silver
Head Type Hex
Material Austenitic Stainless Steel (A4-316)
Point Type 25° Sharp with Single Slash
Recess Type External Hex
Thread Coverage Partially Threaded
Thread Type 50° Single Deep
Substrates Hardwood, Softwood, Green Oak
Attribute Group 1
Brand TIMCO

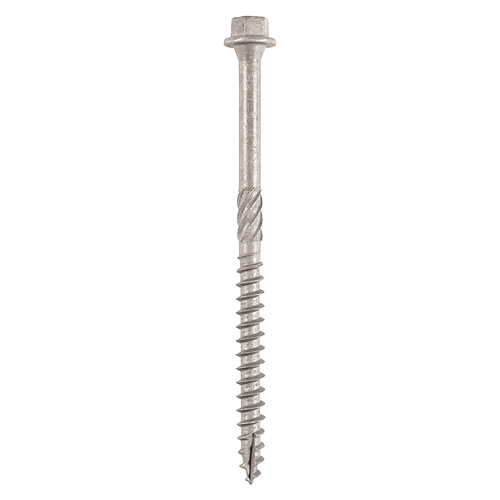

Timber Frame Construction & Landscaping Screws - Hex - A4 Stainless Steel

6.7 x 300

  • Product Code: 300INDEXSST
  • Pack Type: Tube
  • Pack Quantity: 25
  • Barcode: 5056110833040
