Product Information
Designed to increase the joint strength when bolting two pieces of timber together.
Documents
Technical Specifications
Product Specification
| Bore mm | M12 |
| Size mm | 50 |
| Thickness mm | 0.9 |
| Type | Double |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 15 x 90 x 198 |
| Pack Weight kg | 0.088 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| CE Standard Web | BS EN 14545:2008 |
| Product Code | TCD50P |
| SKU Barcode | 5055893329603 |
| Outer Dia mm | 50 |
| Hole Dia mm | 14 |
| No of Teeth | 24 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

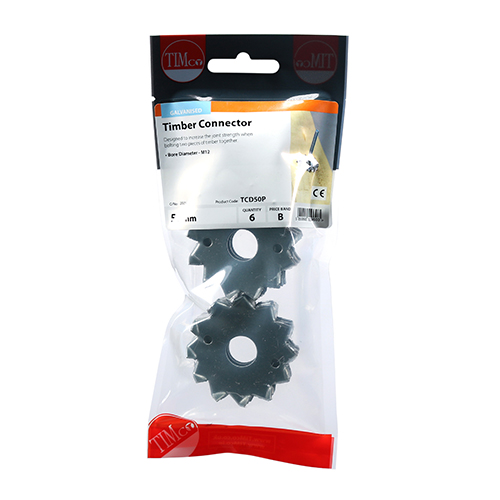

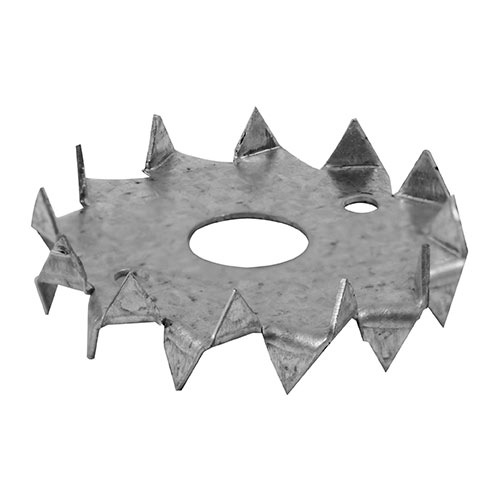

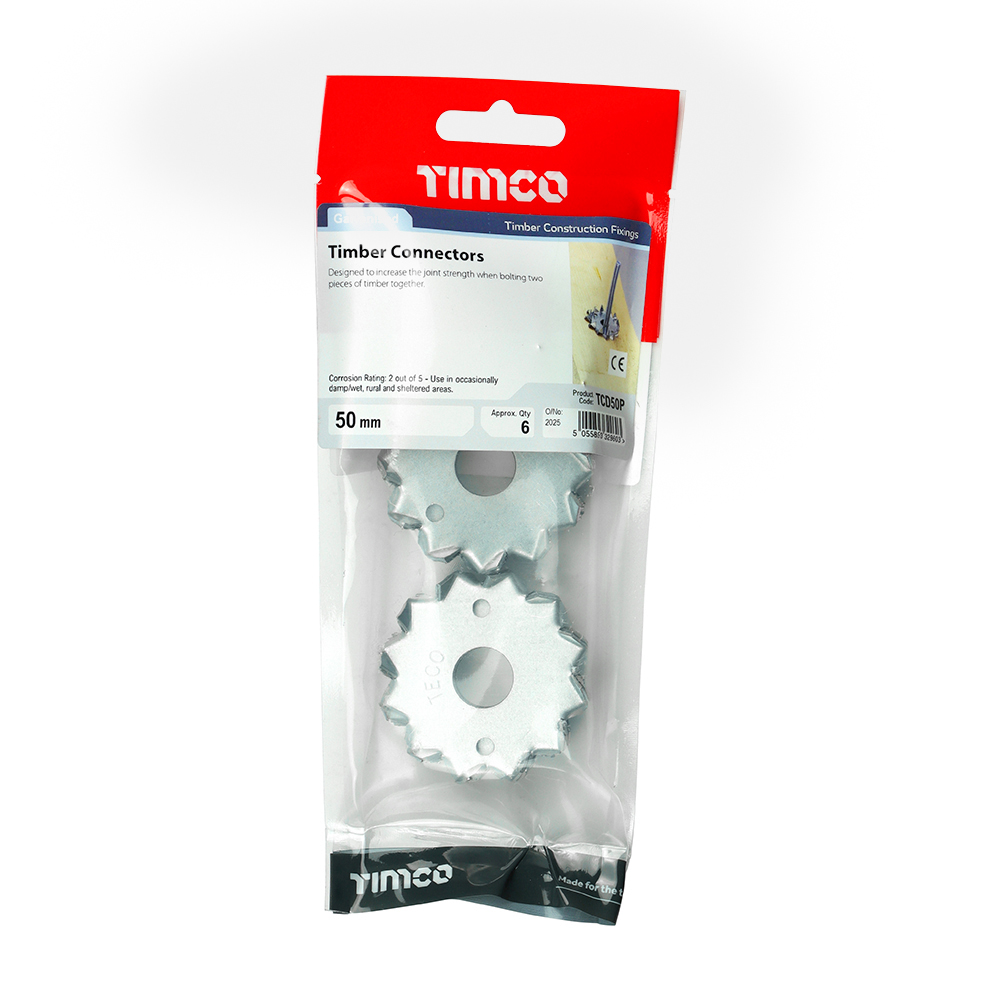

Timber Connectors - Double Sided - Galvanised
50mm / M12
- Product Code: TCD50P
- Pack Type: TIMpac
- Pack Quantity: 6
- Barcode: 5055893329603
